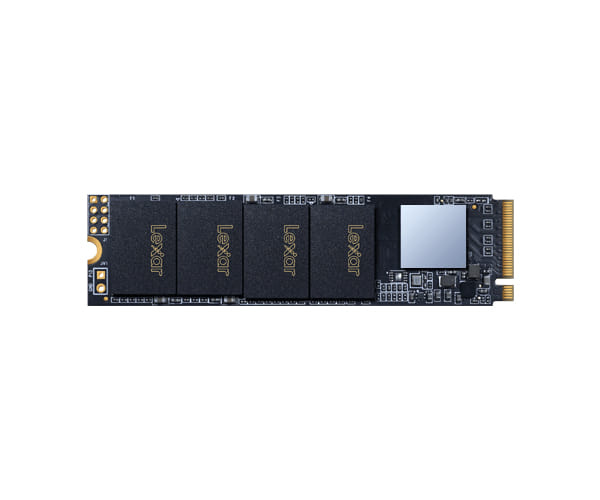

Lexar NM610, 1 TB, M.2, 2100 MB/s
Elevate your PC's performancewith faster speed and more efficiency
Designed to elevate your PC experience with faster load times and transfer speeds from boot-up to shut down, the Lexar NM610 M.2 2280 PCIe Gen3x4 NVMe Solid-State Drive (SSD) will put you in the computing fast lane with speeds up 2100MB/s read and 1600MB/s write. It's supported by the PCIe Gen3x4 NVMe 1.3 technology standard and built with the latest 3D NAND flash.
PCIe Gen3x4 NVMe
Designed to elevate your PC experience with faster load times and transfer speeds from boot-up to shut down, the Lexar NM610 M.2 2280 PCIe Gen3x4 NVMe Solid-State Drive (SSD) will put you in the computing fast lane with speeds up 2100MB/s read and 1600MB/s write. It's supported by the PCIe Gen3x4 NVMe 1.3 technology standard and built with the latest 3D NAND flash.
PCIe Gen3x4 NVMe
| Features | |
| NVMe version | 1.3 |
| SSD capacity The Solid State Drive's data storage capacity. | 1 TB |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D TLC |
| Component for What this product is used as a part of (component for). | PC |
| Hardware encryption |
 |
| Read speed The speed at which a device can read data. | 2100 MB/s |
| Write speed The speed at which a device can write data. | 1600 MB/s |
| Random read (4KB) | 188000 IOPS |
| Random write (4KB) | 156000 IOPS |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1500000 h |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Shock resistant |
| TBW rating | 500 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 22 mm |
| Height The measurement of the product from head to foot or from base to top. | 2.25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating vibration Environmental requirements for vibration in operating mode | 20 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1500 G |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
| SKU | 790982 |
| MPN | LNM610-1TRB |
| Brand | Lexar |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lexar.com/ |
