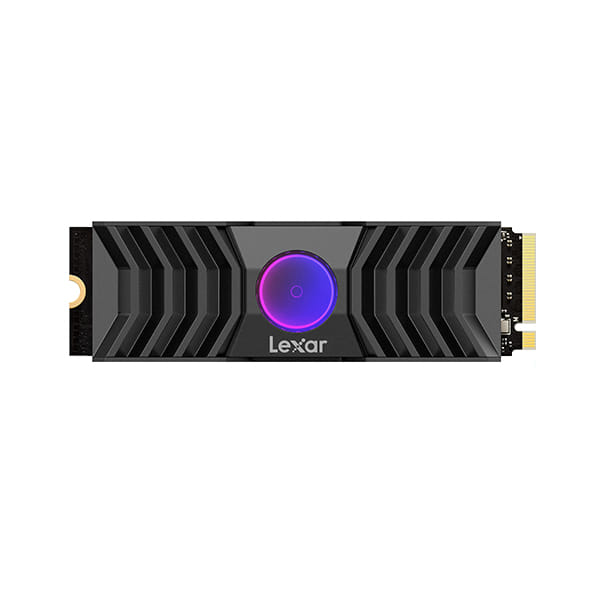

Lexar LNM1090001T-RNANG, 1 TB, M.2
PCIe 5.0 speeds of up to 12,000MB/s read, 11,000MB/s write1 deliver cutting-edge performance.
A unique and potent heatsink features a heat-blasting fan plus programmable RGB lighting for the ultimate in cool.
The Lexar Professional NM1090 PCIe 5.0 SSD is DRAM-based and uses SLC dynamic cache to improve performance, reduce latency, and support Microsoft DirectStorage.
A unique and potent heatsink features a heat-blasting fan plus programmable RGB lighting for the ultimate in cool.
The Lexar Professional NM1090 PCIe 5.0 SSD is DRAM-based and uses SLC dynamic cache to improve performance, reduce latency, and support Microsoft DirectStorage.
| Features | |
| NVMe version | 2.0 |
| SSD capacity The Solid State Drive's data storage capacity. | 1 TB |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 5.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | SLC |
| Component for What this product is used as a part of (component for). | PC |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Write speed The speed at which a device can write data. | 9000 MB/s |
| Random read (4KB) | 1300000 IOPS |
| Random write (4KB) | 1400000 IOPS |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1500000 h |
| Backlight Product has a built-in light source for its illuminating. |
|
| TBW rating | 700 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 22 mm |
| Height The measurement of the product from head to foot or from base to top. | 2.45 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1500 G |
| Vibration resistance | 20 G |
| SKU | 790802 |
| MPN | LNM1090001T-RNANG |
| Brand | Lexar |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lexar.com/ |
