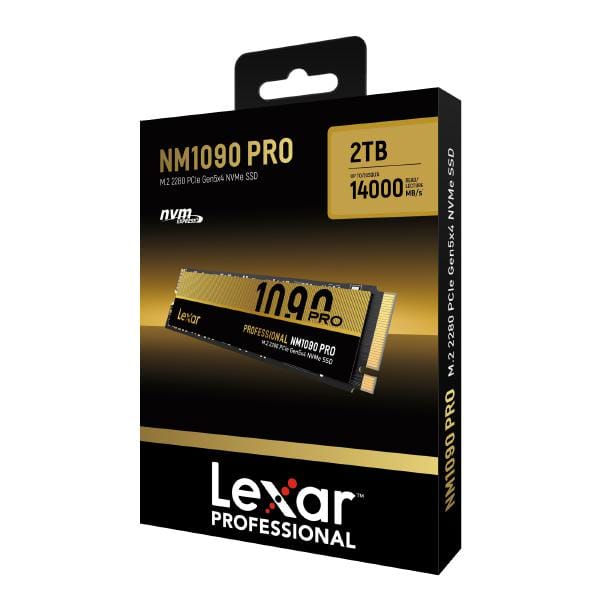

Experience blazing load times up to 200% faster thanks to PCIe 5.0 technology and an advanced thermal control design. With incredible read speed up to 14,000MB/s and write speed up to 13,000MB/s,1the Lexar Professional NM1090 PRO M.2 2280 PCIe Gen 5x4 NVMe SSD delivers the performance for stunningly immersive gaming, professional rendering, and more. DRAM Cache and SLC Dynamic Cache also contribute to enhanced data transfer speeds, reducing wait times and improving system responsiveness. Additionally, the drive's powerful 6nm controller increases heat dissipation to offset its blistering speed.
Accelerate Load Times by up to 200%.
Heat-Defying 6nm Controller.
A State-of-the-Art Experience.
Compatible with Microsoft DirectStorage.
Easy Drive Management
Rigorously Tested
Heat-Defying 6nm Controller.
A State-of-the-Art Experience.
Compatible with Microsoft DirectStorage.
Easy Drive Management
Rigorously Tested
| Features | |
| SSD capacity The Solid State Drive's data storage capacity. | 2 TB |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 5.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D TLC NAND |
| Component for What this product is used as a part of (component for). | PC |
| Hardware encryption |
 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed The speed at which a device can read data. | 14000 MB/s |
| Write speed The speed at which a device can write data. | 13000 MB/s |
| Random read (4KB) | 2100000 IOPS |
| Random write (4KB) | 1800000 IOPS |
| PCI Express interface data lanes | x4 |
| External DDR cache |
|
| External DDR cache quantity | 2048 MB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1500000 h |
| TBW rating | 1400 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 22 mm |
| Height The measurement of the product from head to foot or from base to top. | 3.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 8 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating vibration Environmental requirements for vibration in operating mode | 20 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1500 G |
| SKU | 815233 |
| MPN | LNM109P002T-RNNNG |
| Brand | Lexar |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.lexar.com/ |
