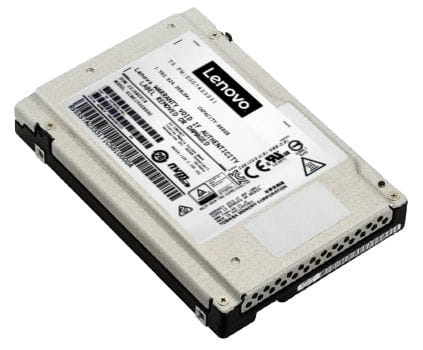

Lenovo 4XB7A14058, 960 GB, U.2
The ThinkSystem CM5-R Entry NVMe solid-state drives (SSDs) are high-performance self-encrypting drives (SEDs) that adhere to the Trusted Computing Group Opal Security Subsystem Class cryptographic standard (TCG Opal SSC). They use Kioxia (formerly Toshiba) NAND flash memory technology with a PCIe 3.0 x4 NVMe interface to provide an high-performance solution for secure read-intensive workloads.
This product guide provides essential presales information to understand the CM5-R NVMe SED offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
This product guide provides essential presales information to understand the CM5-R NVMe SED offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| Features | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES |
| SSD capacity The Solid State Drive's data storage capacity. | 960 GB |
| SSD form factor The size of the solid-state drive, given in inches | U.2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Hardware encryption |
 |
| Random read (4KB) | 370000 IOPS |
| Random write (4KB) | 50000 IOPS |
| Random latency - read (up to) | 110 µs |
| Random latency - write (up to) | 30 µs |
| Hot-swap |
|
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2500000 h |
| Certification | Underwriters Laboratories: UL60950-1 Canada: CAN/CSA-C22.2 No.60950-1 TUV: EN 60950-1 BSMI (Taiwan): CNS 13438 (CISPR Pub. 22 Class B): D33003 MSIP: KN22, KN24 (CISPR Pub. 22 Class B) Australia/New Zealand: AS/NZS CISPR32:2015 Class B Canada: ICES-003 Issue 6 Class B EMC: EN55022 (2010) Class B EMC: EN55024 (2010) RoHS 2011/65/EU: EN50581 (2012) Category 3 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 70 mm |
| Depth The distance from the front to the back of something. | 100 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 130 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration Environmental requirements for vibration in operating mode | 2.17 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1000 G |
| SKU | 810057 |
| MPN | 4XB7A14058 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Drive Form Factor | U.2 |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lenovo.com/ |
