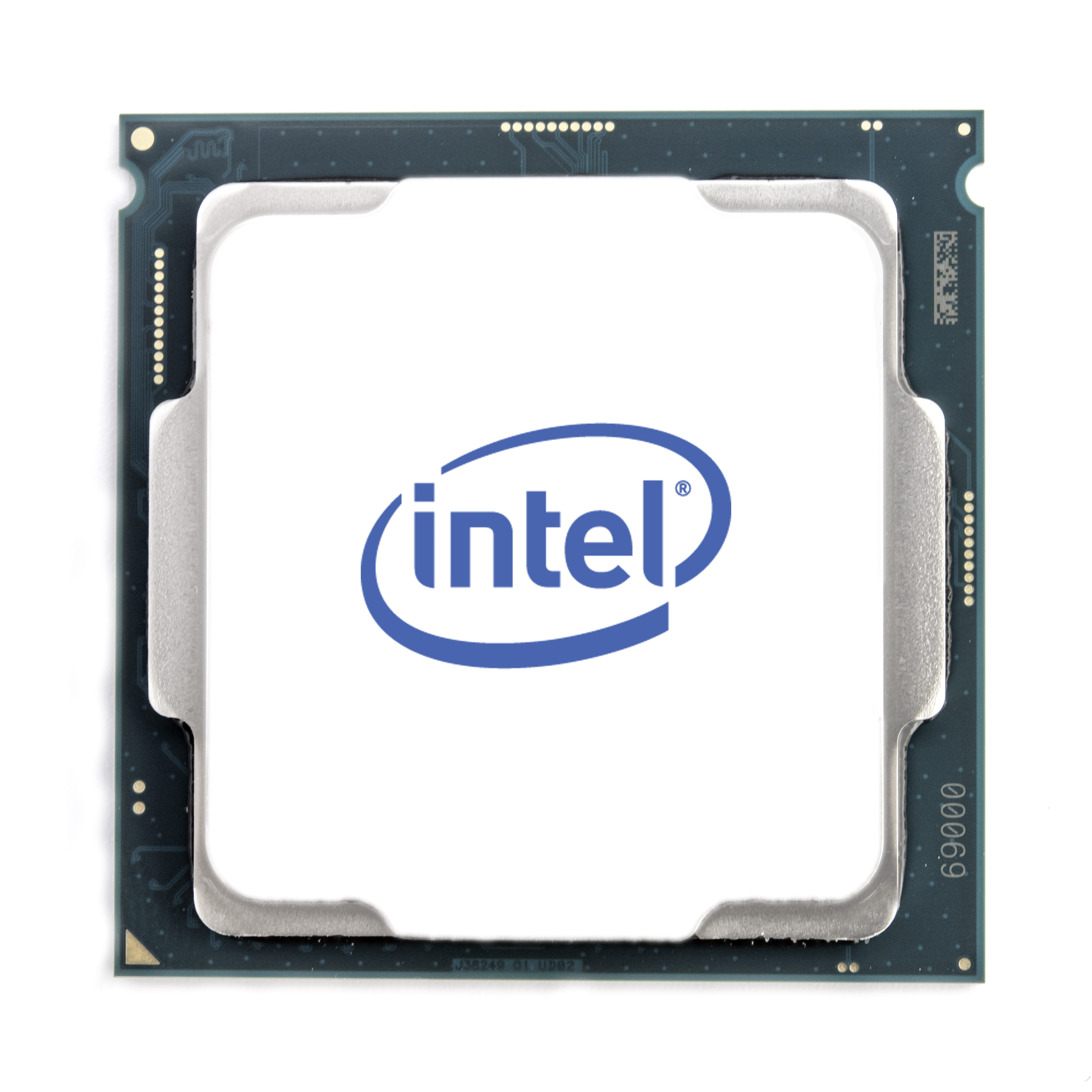

Lenovo Intel Xeon Silver 4509Y, Intel® Xeon®, LGA 4677 (Socket E), Intel, 4509Y, 2.6 GHz, Intel Xeon Scalable 5th Gen
The Lenovo ThinkSystem SR650 V3 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
This product guide provides essential pre-sales information to understand the ThinkSystem SR650 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 V3 and consider its use in IT solutions.
This product guide provides essential pre-sales information to understand the ThinkSystem SR650 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 V3 and consider its use in IT solutions.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor generation | Intel Xeon Scalable 5th Gen |
| Processor model The model number for the processor in a computer. | 4509Y |
| Processor base frequency | 2.6 GHz |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Xeon® |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 4677 (Socket E) |
| Processor threads | 16 |
| Intel® UPI Speed | 16 GT/s |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.1 GHz |
| Processor cache | 22.5 MB |
| Thermal Design Power (TDP) | 125 W |
| Cooler included The device comes with an integrated cooler. |
 |
| Processor codename | Sapphire Rapids |
| Memory | |
| Maximum internal memory supported by processor | 4 TB |
| Memory types supported by processor | DDR5-SDRAM |
| Memory channels | Octa-channel |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Discrete graphics card |
|
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Not available |
| Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. | Not available |
| Features | |
| Execute Disable Bit |
|
| Market segment | Server |
| Use conditions | Server/Enterprise |
| Maximum number of PCI Express lanes | 80 |
| PCI Express slots version | 5.0 |
| Supported instruction sets | AMX, AVX, AVX 2.0, AVX-512, SSE4.2 |
| Scalability | 2S |
| Embedded options available |
|
| Processor special features | |
| Intel® Hyper Threading Technology (Intel® HT Technology) <b>Improved Performance for Threaded Software</b> Intel® Hyper-Threading Technology (Intel® HT Technology) makes efficient use of processor resources, enabling multiple threads to run on each core and increasing processor throughput. Available on Intel® Core™ and Intel® Xeon® processors, Intel HT Technology helps run demanding applications simultaneously, protect and manage systems, and provide headroom for business growth. |
|
| Intel® Turbo Boost Technology <b>Higher Performance When You Need It Most</b> Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration. | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants. |
|
| Intel Trusted Execution Technology |
|
| Intel® Speed Shift Technology Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency. |
|
| Intel® Transactional Synchronization Extensions |
|
| Intel® Total Memory Encryption |
|
| Intel® Control-flow Enforcement Technology (CET) |
|
| Intel® Crypto Acceleration |
|
| Intel® Platform Firmware Resilience Support |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Intel® OS Guard <b>Protect Your Operating Environment</b> Intel® OS Guard, a hardware-based security feature that protects the operating system kernel, defends against malicious data or attack code located in areas of memory marked as user mode pages, preventing any application from taking over or compromising the OS kernel. |
|
| Intel Software Guard Extensions (Intel SGX) |
|
| Intel 64 |
|
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Intel® Boot Guard Intel® Device Protection Technology with Boot Guard helps protect the system’s pre-OS environment from viruses and malicious software attacks. |
|
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
|
| Intel® Resource Director Technology (Intel® RDT) |
|
| Intel® Volume Management Device (VMD) |
|
| Mode-based Execute Control (MBE) |
|
| Intel® Total Memory Encryption - Multi Key |
|
| Intel® QuickAssist Software Acceleration |
|
| Intel® Data Streaming Accelerator (DSA) | 1 default devices |
| Intel® Advanced Matrix Extensions (AMX) |
|
| Operational conditions | |
| Tcase | 84 °C |
| DTS Max | 100 °C |
| Technical details | |
| Launch date | Q4'23 |
| Status | Launched |
| Number of UPI links | 2 |
| Package carrier | E1B |
| Weight & dimensions | |
| Processor package size | 77.5 x 56.5 mm |
| Other features | |
| Maximum internal memory The maximum internal memory which is available in the product. | 4 TB |
| SKU | 779252 |
| MPN | 4XG7A91456 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| CPU Series | Intel Xeon |
| CPU Generation | Intel Xeon Silver |
| CPU Socket | LGA 4677 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lenovo.com/ |
