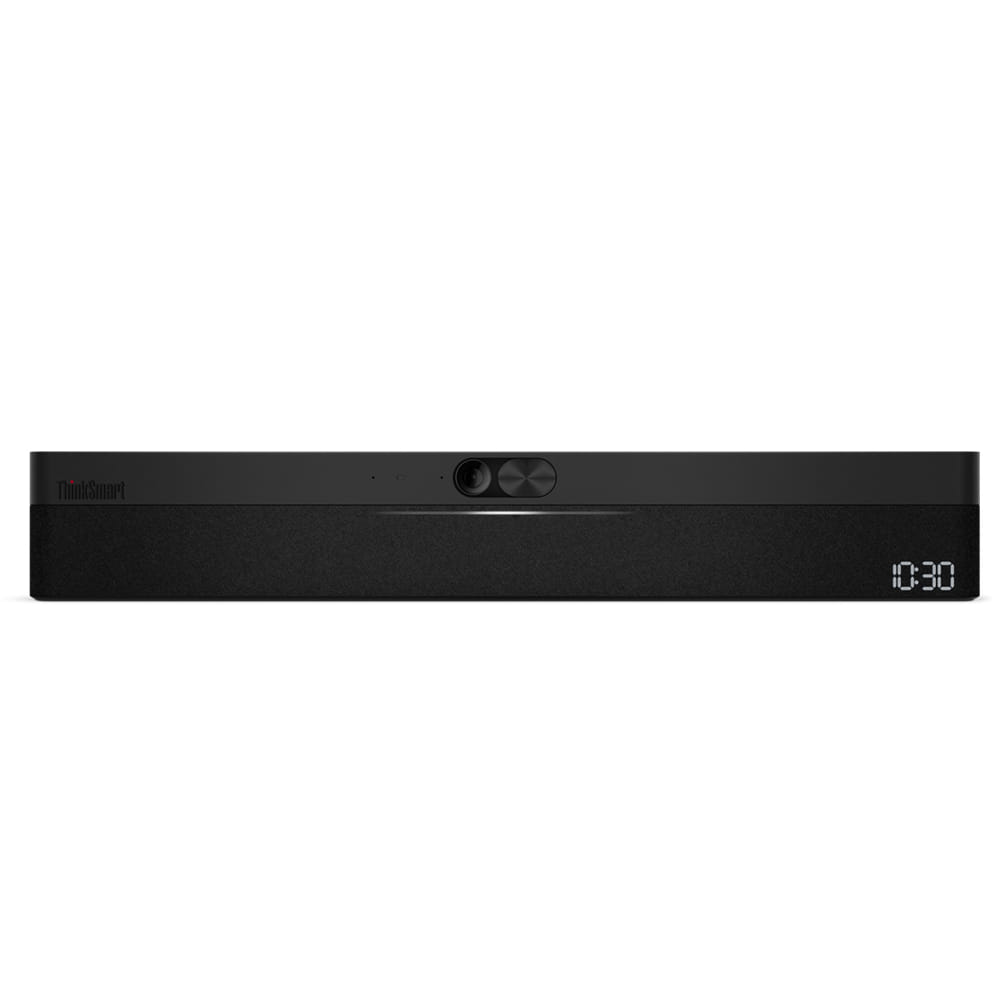

Lenovo ThinkSmart One Controller i5-1145G7E, W10 IoT

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor generation	11th gen Intel® Core™ i5
Processor model The model number for the processor in a computer.	i5-1145G7E
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i5
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	1.5 GHz
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	4.1 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Processor cache	8 MB
Configurable TDP-up frequency	2.6 GHz
Configurable TDP-up	28 W
Configurable TDP-down frequency	1.1 GHz
Configurable TDP-down	12 W

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	8 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4-SDRAM
Maximum internal memory The maximum internal memory which is available in the product.	8 GB
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	3200 MHz
Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM.	On-board

Storage
Total storage capacity The total amount of data that can be stored on the device.	256 GB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
Number of storage drives installed Amount of storage drives built into the device.	1
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	256 GB
SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware.	PCI Express 3.0
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.

Graphics
Discrete graphics card
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel Iris Xe Graphics

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Number of speakers The quantity of speakers included in/with the product.	2
RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.	30 W
Built-in microphone Microphone that is found inside the product.

Camera
Built-in camera The product has an integrated camera.
Privacy camera
Privacy type	Privacy shutter

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6E (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX210
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	2x2
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	1000 Mbit/s
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.0

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	1
USB 2.0 Type-C ports quantity	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
Combo headphone/mic port

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington

Performance
Product type The sub-category of the product.	All-in-One PC
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel SoC
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version	2.0

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 10 IoT Enterprise
Operating system language	English

Processor special features
Intel Trusted Execution Technology
Intel VT-x with Extended Page Tables (EPT)
Intel Software Guard Extensions (Intel SGX)
Idle States
CPU configuration (max)	1
Embedded options available
Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.

Power
AC adapter power	135 W

Weight & dimensions
Width (without stand)	70 cm
Depth (without stand)	8.9 cm
Height (without stand)	11 cm
Weight (without stand)	3.55 kg
