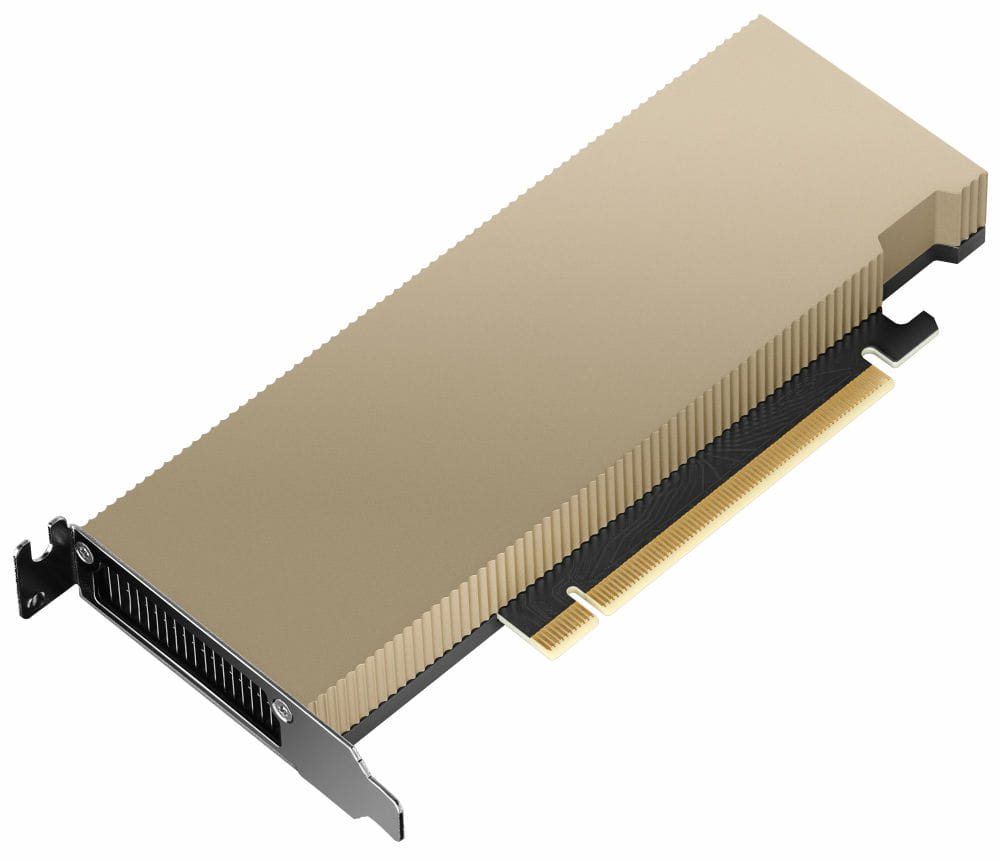

Lenovo ThinkSystem NVIDIA L4 24GB PCIe Gen4 Passive Graphics Card
Item No:
806758
MPN:
4X67A84824
$5,659.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Lenovo NVIDIA L4, L4, 24 GB, GDDR6, PCI Express x16 4.0
The ThinkSystem NVIDIA L4 24GB PCIe Gen4 Passive GPU delivers universal acceleration and energy efficiency for video, AI, virtual workstations, and graphics in the enterprise, in the cloud, and at the edge. With NVIDIA
| Processor | |
| Graphics processor family The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA). | NVIDIA |
| Graphics processor Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics. | L4 |
| Memory | |
| Discrete graphics card memory | 24 GB |
| Graphics card memory type The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture, and is a computer memory architecture that allows the graphics processing unit to share system memory. Other abreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate. | GDDR6 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 64 Gbit/s |
| Memory bandwidth (max) | 300 GB/s |
| Ports & interfaces | |
| Interface type | PCI Express x16 4.0 |
| Performance | |
| TV tuner integrated Device has an in-built TV tuner. |
 |
| DirectX version DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system. | 12 Ultimate |
| Shader model version A shader is a program used in 3D computer graphics to determine the final surface properties of an object or image. This can include arbitrarily complex descriptions of light absorption and diffusion, texture mapping, reflection and refraction, shadowing, surface displacement and post-processing effects. It is also used to refer to video graphics hardware units that run these programs. | 6.6 |
| OpenGL version OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives. | 4.6 |
| OpenCL version | 3.0 |
| Design | |
| Cooling type The method used to cool the device or to cool the air around the device. | Passive |
| Bracket height | Low-Profile (LP) |
| Number of slots | 1 |
| Product colour The colour e.g. red, blue, green, black, white. | Brass |
| Power | |
| Thermal Design Power (TDP) | 72 W |
| Weight & dimensions | |
| Length The measurement or extent of something from end to end. | 169 mm |
| Height The measurement of the product from head to foot or from base to top. | 69 mm |
| SKU | 806758 |
| MPN | 4X67A84824 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| GPU Series | nVidia L4 |
| Graphics RAM Size | 24 GB |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lenovo.com/ |
