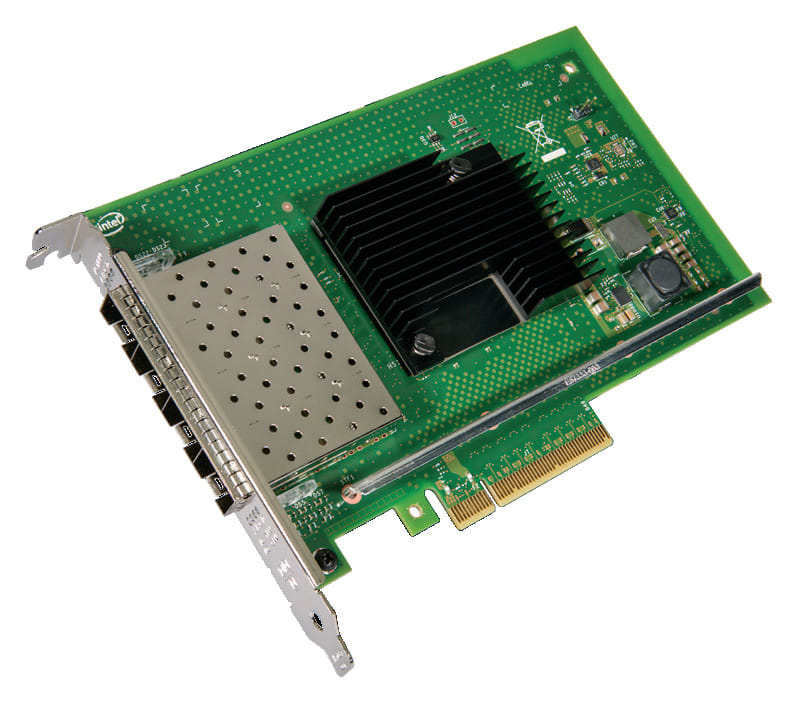

Lenovo 7XC7A05525, Internal, Wired, PCI Express, Fiber, 10000 Mbit/s, Green
The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.
The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.
The X710 is available in three host connections: a standard PCIe host interface, a Mezzanine LOM (ML2) host interface for ThinkSystem and System x servers, and an AnyFabric host interface for ThinkServer systems (now withdrawn).
The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.
The X710 is available in three host connections: a standard PCIe host interface, a Mezzanine LOM (ML2) host interface for ThinkSystem and System x servers, and an AnyFabric host interface for ThinkServer systems (now withdrawn).
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Fiber |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 4 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP+ |
| PCI version | 3.0 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 10000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x |
| Design | |
| Component for What this product is used as a part of (component for). | Server |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| Internal The product is built in. |
 |
| Certification | EN55022 EN55024 EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 FCC 47 CFR Part 15 Class A VCCI AS/NZS CISPR 22 / C-tick RRL for KC BSMI UL 94 V-1 |
| Compatible products Other products that can be used with this product. | ST50 (7Y48/7Y50) ST250 (7Y45/7Y46) SR150 (7Y54) SR250 (7Y51/7Y52) x3550 M5 (8869) x3650 M5 (8871) |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 80% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 15 mm |
| Depth The distance from the front to the back of something. | 167 mm |
| Height The measurement of the product from head to foot or from base to top. | 111 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Maximum operating temperature | 55 °C |
| SKU | 736253 |
| MPN | 7XC7A05525 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lenovo.com/ |
