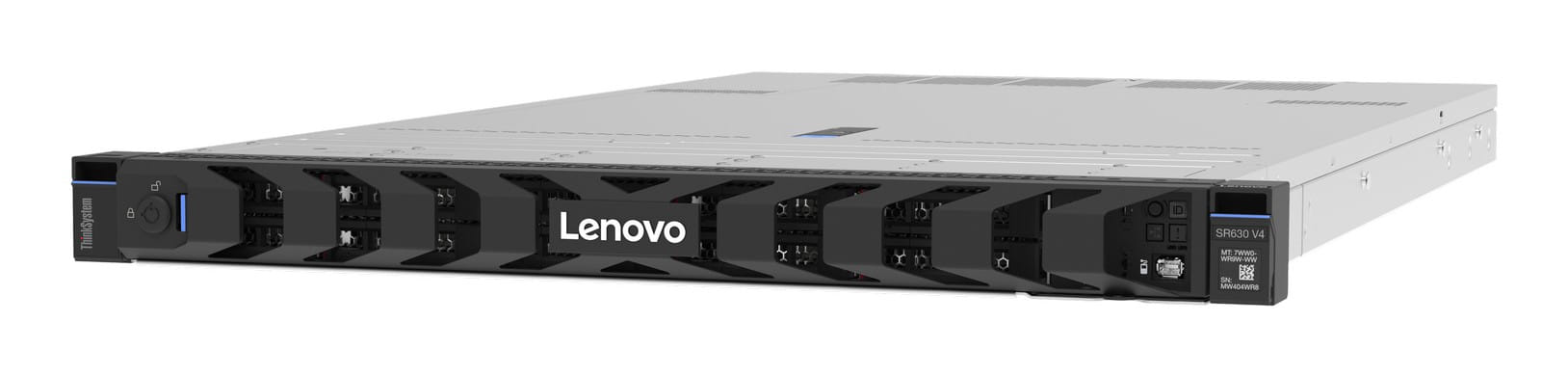

Lenovo ThinkSystem SR630 V4 Intel Xeon Server
Item No:
841452
MPN:
7DG9CTO1WW
$16,394.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Lenovo ThinkSystem SR630 V4, 2.3 GHz, 6515P, 32 GB, DDR5-SDRAM, 1.92 TB, Rack (1U)
The Lenovo ThinkSystem SR630 V4 is an ideal 2-socket 1U rack server for customers that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. With two Intel Xeon 6700-series or 6500-series processors, the SR630 V4 is designed for high density and scale-out workloads in various customer segments.
This product guide provides essential pre-sales information to understand the ThinkSystem SR630 V4 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 V4 and consider its use in IT solutions.
This product guide provides essential pre-sales information to understand the ThinkSystem SR630 V4 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 V4 and consider its use in IT solutions.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Xeon® |
| Processor model The model number for the processor in a computer. | 6515P |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 2.3 GHz |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 3.8 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 16 |
| Processor cache | 72 MB |
| Number of processors installed Number of processors in the product. | 1 |
| Processor threads | 32 |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 32 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR5-SDRAM |
| Memory ranking | 2 |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 32x DIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Maximum internal memory The maximum internal memory which is available in the product. | 8 TB |
| Storage | |
| Total storage capacity The total amount of data that can be stored on the device. | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity The Solid State Drive's data storage capacity. | 960 GB |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
|
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 5, 6, 10, 50, 60 |
| Supported RAID controllers | 940-8i 4GB |
| Hot-swap |
|
| Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM. |
 |
| Internal drive bays | 8 |
| Supported storage drive interfaces | SAS, Serial ATA |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Not available |
| Maximum graphics card memory Graphics memory is determined by the (graphic) processor. Graphics memory is often shared with system memory so that it varies depending on the amount of system memory installed and system load. | 16 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (1U) |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Steel |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Performance | |
| Performance management | XClarity Controller Platinum |
| Trusted Platform Module (TPM) |
|
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server |
| Power | |
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 1300 W |
| Number of main power supplies The quantity of main power supplies for this product. | 2 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 773 mm |
| Height The measurement of the product from head to foot or from base to top. | 43 mm |
| Technical details | |
| Supported storage drives form factor (internal) | 2.5" |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | CCC, CE, CECP, Federal Communications Commission (FCC), RoHS, UKCA, UL |
| SKU | 841452 |
| MPN | 7DG9CTO1WW |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lenovo.com/ |
