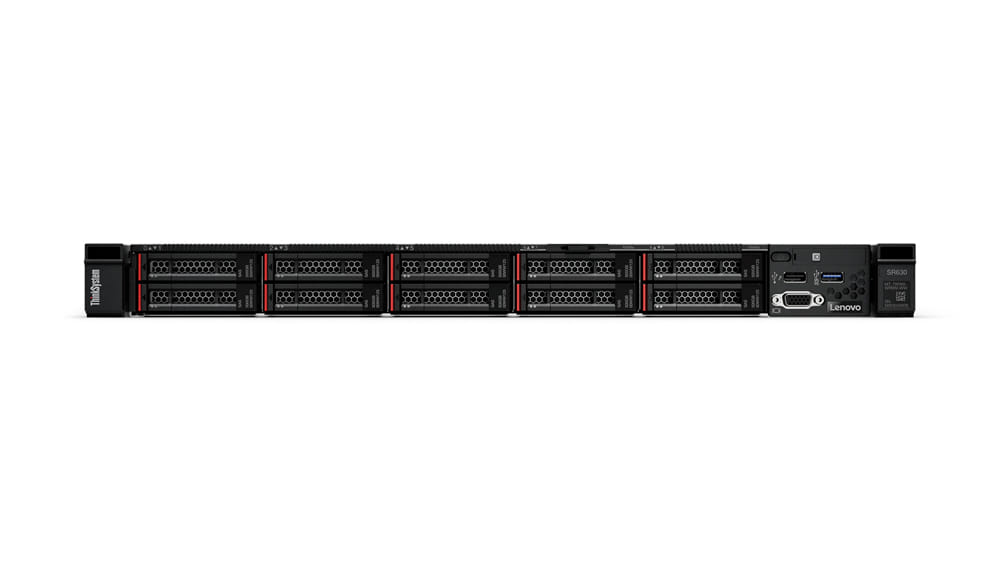

Lenovo ThinkSystem SR630 Server 2.1 GHz 16GB Rack (1U) Xeon Silver 750 W DDR4-SDRAM
Item No:
463418
MPN:
7X02A0BXAU-ROK
$7,414.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Intel Xeon Silver 4208 (11MB Cache, 2.1GHz), 16GB DDR4-SDRAM (2933MHz), LAN, 930-8i 2GB, 750W + 7S050015WW
Future defined data center
Lenovo delivers cost-effective, reliable and scalable solutions by combining industry-leading technology and the world s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR630 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, High Performance Computing and much more.
Workload-optimized support
Intel Optane DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offers an unprecedented combination of high capacity, affordability and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.*
* Based on Intel internal testing, August 2018.
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
Lenovo delivers cost-effective, reliable and scalable solutions by combining industry-leading technology and the world s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR630 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, High Performance Computing and much more.
Workload-optimized support
Intel Optane DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offers an unprecedented combination of high capacity, affordability and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.*
* Based on Intel internal testing, August 2018.
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model The model number for the processor in a computer. | 4208 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 2.1 GHz |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 3.2 GHz |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel Xeon Silver |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Processor cache | 11 MB |
| Number of processors installed Number of processors in the product. | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 3647 (Socket P) |
| Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit). | 14 nm |
| Processor threads | 16 |
| Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software. | 64-bit |
| Processor codename | Cascade Lake |
| Tcase | 78 °C |
| Maximum internal memory supported by processor | 1024 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Execute Disable Bit |
 |
| Maximum number of PCI Express lanes | 48 |
| Processor package size | 76.0 x 56.5 mm |
| Supported instruction sets | AVX-512 |
| Scalability | 2S |
| Embedded options available |
 |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 16 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4-SDRAM |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 2933 MHz |
| Memory layout (slots x size) The slots and size of the memory for the CPU. | 1 x 16 GB |
| Storage | |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size The amount of data that the hard drive can store. | 2.5" |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 8 |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
|
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,5,6,10,50,60 |
| Supported RAID controllers | 930-8i 2GB |
| Hot-swap |
|
| Graphics | |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Not available |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (1U) |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Performance | |
| Performance management | XClarity |
| Trusted Platform Module (TPM) |
|
| Trusted Platform Module (TPM) version | 1.2 |
| Software | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Microsoft Windows Server 2016 and 2019; Red Hat Enterprise Linux 7; SUSE Linux Enterprise Server 12 and 15; VMware vSphere (ESXi) 6.5 and 6.7. |
| Processor special features | |
| Enhanced Intel SpeedStep Technology |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel® Hyper Threading Technology (Intel® HT Technology) <b>Improved Performance for Threaded Software</b> Intel® Hyper-Threading Technology (Intel® HT Technology) makes efficient use of processor resources, enabling multiple threads to run on each core and increasing processor throughput. Available on Intel® Core™ and Intel® Xeon® processors, Intel HT Technology helps run demanding applications simultaneously, protect and manage systems, and provide headroom for business growth. |
|
| Intel® Turbo Boost Technology <b>Higher Performance When You Need It Most</b> Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration. | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants. |
|
| Intel Trusted Execution Technology |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Intel TSX-NI |
|
| Intel 64 |
|
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Processor ARK ID | 193390 |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 750 W |
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| Number of redundant power supplies supported | 2 |
| Number of main power supplies The quantity of main power supplies for this product. | 1 |
| Power supply input frequency The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz. | 50 - 60 Hz |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 434 mm |
| Depth The distance from the front to the back of something. | 715 mm |
| Height The measurement of the product from head to foot or from base to top. | 43 mm |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| SKU | 463418 |
| MPN | 7X02A0BXAU-ROK |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Product Use | General |
