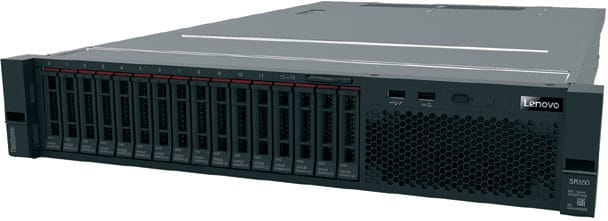

Lenovo ThinkSystem SR550 Server Intel Xeon Silver 2.1 GHz 16GB, Rack (2U) 750 W
Item No:
458717
MPN:
7X04A07XAU
$5,693.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Lenovo ThinkSystem SR550, 2.1 GHz, 4208, 16 GB, DDR4-SDRAM, 750 W, Rack (2U)
Affordable, all-purpose rack server for local/remote sites
The 2U ThinkSystem SR550 2P rack server is designed for a balance of processing power, storage capacity, and cost. It provides selectable I/O options and tiered systems management.
Cost-efficient performance
The ThinkSystem SR550 features a balance of performance, capacity, and value in a 2U form factor. Essential performance components are delivered in a combination that is designed to elevate the cost efficiency of the system, allowing the SR550 to meet both the workload needs and the budgetary needs of the enterprise.
Workload optimized support
New second-generation Intel Xeon processor Scalable family CPUs offer increased performance of 36% over the previous generation*, support for faster 2933MHz TruDDR4 memory, and Intel's Vector Neural Network Instruction (VNNI) which accelerates processor performance on Deep Learning and AI workloads. Up to 6% increases in per-core performance and hardware security mitigations round out the enhanced capabilities featured in this next-generation processor technology from Intel.*
* Based on Intel internal testing, August 2018.
Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
The 2U ThinkSystem SR550 2P rack server is designed for a balance of processing power, storage capacity, and cost. It provides selectable I/O options and tiered systems management.
Cost-efficient performance
The ThinkSystem SR550 features a balance of performance, capacity, and value in a 2U form factor. Essential performance components are delivered in a combination that is designed to elevate the cost efficiency of the system, allowing the SR550 to meet both the workload needs and the budgetary needs of the enterprise.
Workload optimized support
New second-generation Intel Xeon processor Scalable family CPUs offer increased performance of 36% over the previous generation*, support for faster 2933MHz TruDDR4 memory, and Intel's Vector Neural Network Instruction (VNNI) which accelerates processor performance on Deep Learning and AI workloads. Up to 6% increases in per-core performance and hardware security mitigations round out the enhanced capabilities featured in this next-generation processor technology from Intel.*
* Based on Intel internal testing, August 2018.
Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor model The model number for the processor in a computer. | 4208 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 2.1 GHz |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 3.2 GHz |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel Xeon Silver |
| Processor cache | 11 MB |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel C622 |
| Number of processors installed Number of processors in the product. | 1 |
| Execute Disable Bit |
 |
| Embedded options available |
 |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 16 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4-SDRAM |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 6 x DIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 2933 MHz |
| Memory layout (slots x size) The slots and size of the memory for the CPU. | 1 x 16 GB |
| Storage | |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | Serial ATA, Serial Attached SCSI (SAS) |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5" |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
|
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,5,10,50 |
| Supported RAID controllers | 530-8i |
| Hot-swap |
|
| Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM. |
|
| Graphics | |
| On-board graphics adapter Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| On-board graphics adapter model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Matrox G200 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 2 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (2U) |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Metallic |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Performance | |
| Performance management | XClarity Enterprise |
| Trusted Platform Module (TPM) |
|
| Trusted Platform Module (TPM) version | 1.2 |
| Software | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows Server 2012 R2, 2016, and 2019; Red Hat Enterprise Linux 6 (x64), 7, and 8; SUSE Linux Enterprise Server 11 (x64), 12, and 15; VMware vSphere (ESXi) 6.0, 6.5, and 6.7 |
| Processor special features | |
| Enhanced Intel SpeedStep Technology |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Trusted Execution Technology |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Intel TSX-NI |
|
| Intel 64 |
|
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 750 W |
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| Number of redundant power supplies supported | 2 |
| Number of main power supplies The quantity of main power supplies for this product. | 1 |
| Power supply input frequency The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz. | 50 - 60 Hz |
| Operational conditions | |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 60 °C |
| Storage relative humidity (H-H) | 8 - 90% |
| Certificates | |
| Energy Star certified This indicates that the product is compliant with Energy Star, which is an international standard for energy-efficient consumer products. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 445 mm |
| Depth The distance from the front to the back of something. | 764 mm |
| Height The measurement of the product from head to foot or from base to top. | 87 mm |
| SKU | 458717 |
| MPN | 7X04A07XAU |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Product Use | General |
