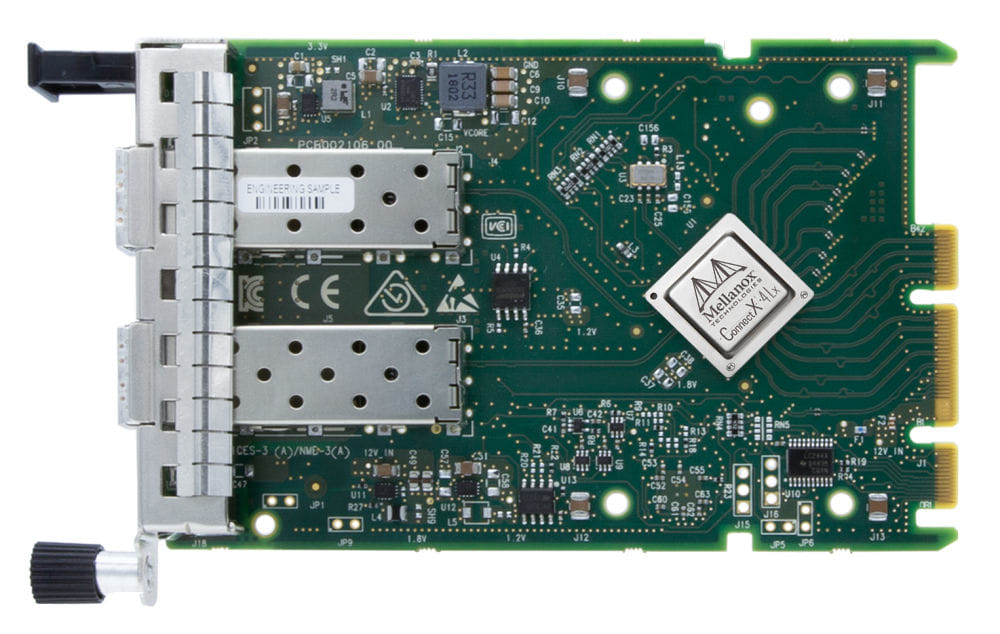

Lenovo Mellanox ConnectX-4 Lx, Internal, Wired, PCI Express, Fiber, 25000 Mbit/s, Green, Stainless steel
25 Gigabit Ethernet Adapter Cards supporting Mellanox Multi-Host technology, RDMA, Overlay Networks Encapsulation/Decapsulation and more
ConnectX-4 Lx EN Network Controller with 25Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms.
ConnectX-4 Lx EN provides an unmatched combination of 25GbE bandwidth, sub-microsecond latency and a 75 million packets per second message rate. It includes native hardware support for RDMA over Converged Ethernet, Ethernet stateless offload engines, Overlay Networks, and GPUDirect Technology.
Open Compute Project
The Open Compute Project (OCP) mission is to develop and specify the most cost-efficient, energy-efficient and scalable enterprise and Web 2.0 data centers. Mellanox ConnectX-4 Lx EN OCP adapter cards deliver leading Ethernet connectivity for performance-driven server and storage applications in Web 2.0, Enterprise Data Centers and Cloud environments. The OCP Mezzanine adapter form factor is designed to mate into OCP servers. ConnectX-4 Lx EN for Open Compute Project (OCP) improves network performance by increasing available bandwidth while decreasing the associated transport load on the CPU especially in virtualized server environments. Moreover, ConnectX-4 Lx EN introduces the new Multi-Host technology, which enables a new innovative rack design that achieves maximum CAPEX and OPEX savings without compromising on network performance.
ConnectX-4 Lx EN Network Controller with 25Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms.
ConnectX-4 Lx EN provides an unmatched combination of 25GbE bandwidth, sub-microsecond latency and a 75 million packets per second message rate. It includes native hardware support for RDMA over Converged Ethernet, Ethernet stateless offload engines, Overlay Networks, and GPUDirect Technology.
Open Compute Project
The Open Compute Project (OCP) mission is to develop and specify the most cost-efficient, energy-efficient and scalable enterprise and Web 2.0 data centers. Mellanox ConnectX-4 Lx EN OCP adapter cards deliver leading Ethernet connectivity for performance-driven server and storage applications in Web 2.0, Enterprise Data Centers and Cloud environments. The OCP Mezzanine adapter form factor is designed to mate into OCP servers. ConnectX-4 Lx EN for Open Compute Project (OCP) improves network performance by increasing available bandwidth while decreasing the associated transport load on the CPU especially in virtualized server environments. Moreover, ConnectX-4 Lx EN introduces the new Multi-Host technology, which enables a new innovative rack design that achieves maximum CAPEX and OPEX savings without compromising on network performance.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Fiber |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP28 |
| PCI version | 3.0 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 25000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.1Qau,IEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.1Qbg,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3ap,IEEE 802.3az,IEEE 802.3ba |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet interface type | 25 Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 25000 Mbit/s |
| Design | |
| Component for What this product is used as a part of (component for). | Server |
| Product colour The colour e.g. red, blue, green, black, white. | Green, Stainless steel |
| Internal The product is built in. |
|
| Certification | CB, cTUVus, CE, FCC, VCCI, ICES, RCM |
| Compatible products Other products that can be used with this product. | SR635 (7Y98/7Y99), SR655 (7Y00/7Z01) |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 9.47 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| SKU | 600887 |
| MPN | 4XC7A08246 |
| Brand | Lenovo |
