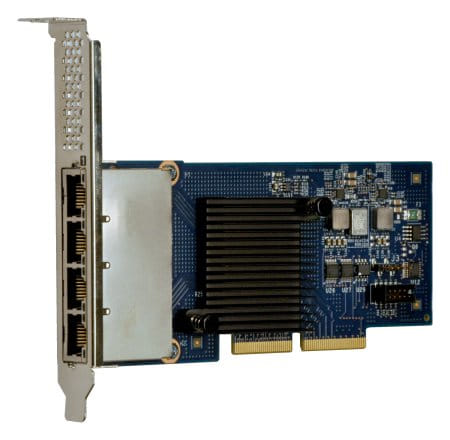

Lenovo 7ZT7A00536, Internal, Wired, PCI Express, Ethernet, 1000 Mbit/s, Black, Blue
Intel I350 Gigabit Ethernet adapters from Lenovo build on Intel's history of delivering Ethernet products with flexible design and robust driver support. Available in either 1-port fiber configuration or a 2/4-port copper configuration, these adapters offer excellent price/performance, enhanced power-savings, and market-leading I/O virtualization technologies that includes SRIOV and VMDq.
This product guide provides essential presales information to understand the I350 Gigabit Ethernet offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about I350 Gigabit Ethernet adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the I350 Gigabit Ethernet offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about I350 Gigabit Ethernet adapters and consider their use in IT solutions.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| PCI version | 2.0 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3p,IEEE 802.3q,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Auto MDIX IEEE |
 |
| Jumbo frames support |
|
| iSCSI support |
|
| Design | |
| Component for What this product is used as a part of (component for). | Server |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Blue |
| Internal The product is built in. |
|
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 5 Server Edition Red Hat Enterprise Linux 5 Server with Xen x64 Edition Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server Edition Red Hat Enterprise Linux 6 Server x64 Edition SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for x86 SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T VMware ESXi 5.0 VMware ESXi 5.1 VMware ESXi 5.5 VMware ESXi 6.0 VMware ESXi 6.5 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 17 mm |
| Depth The distance from the front to the back of something. | 135 mm |
| Height The measurement of the product from head to foot or from base to top. | 69 mm |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Other features | |
| Flow control support |
|
| Intel® Virtualization Technology (Intel® VT) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Virtual Machine Device Queues (VMDq) |
|
| Receive Side Scaling (RSS) |
|
| SKU | 654031 |
| MPN | 7ZT7A00536 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lenovo.com/ |
