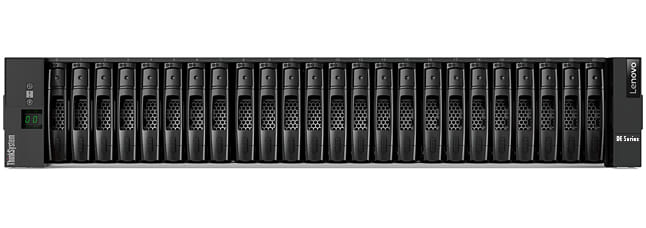

Lenovo ThinkSystem DE4000H FC Array SFF
Item No:
428414
MPN:
7Y75A002WW
$15,189.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Lenovo ThinkSystem DE4000H, HDD,SSD, 288 TB, RJ-45, Rack (2U), Black, Small & Medium Business
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 4/8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 4/8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
| Storage | |
| Storage drives installed Storage drives are built into the system. |
 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD,SSD |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 24 |
| Maximum supported storage capacity The maximum capacity of data storage on the device. | 288 TB |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,3,5,6,10 |
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
 |
| Ports & interfaces | |
| USB connectivity The product has USB connector. |
|
| Serial interface type | RJ-45 |
| RJ-45 ports quantity | 3 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (2U) |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Cooling The ability of the device to cool something or device cooling. |
|
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Performance | |
| Device class The category to which this device belongs. | Small & Medium Business |
| Power | |
| Power supply unit (PSU) capacity | 913 W |
| Number of power supply units | 2 |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 449 mm |
| Depth The distance from the front to the back of something. | 553 mm |
| Height The measurement of the product from head to foot or from base to top. | 85 mm |
| SKU | 428414 |
| MPN | 7Y75A002WW |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Product Use | General |
