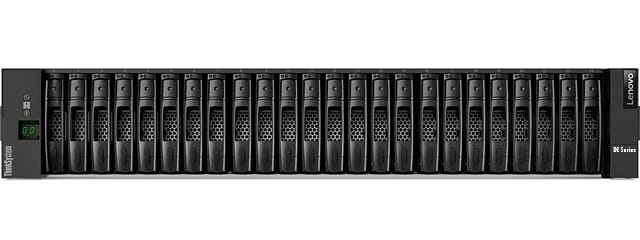

Lenovo ThinkSystem DE2000H SAS Array SFF
Item No:
428400
MPN:
7Y71A000WW
$10,616.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Lenovo ThinkSystem DE2000H, HDD,SSD, 368.64 TB, SAS, RJ-45, Rack (2U), Black
Lenovo ThinkSystem DE2000H is a low-cost, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE2000H is a perfect fit for small offices and remote and branch offices of large enterprises that run a wide range of workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
ThinkSystem DE2000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or 12 large form-factor (3.5-inch LFF) drives (2U12 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, with an option for 12 Gb SAS or 1/10 Gb iSCSI RJ-45 connections with the host interface cards.
The ThinkSystem DE2000H Storage Array scales up to 96 drives with the attachment of Lenovo ThinkSystem DE120S 2U12 and DE240S 2U24 SFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
ThinkSystem DE2000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or 12 large form-factor (3.5-inch LFF) drives (2U12 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, with an option for 12 Gb SAS or 1/10 Gb iSCSI RJ-45 connections with the host interface cards.
The ThinkSystem DE2000H Storage Array scales up to 96 drives with the attachment of Lenovo ThinkSystem DE120S 2U12 and DE240S 2U24 SFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
| Storage | |
| Storage drives installed Storage drives are built into the system. |
 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD,SSD |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 24 |
| Maximum supported storage capacity The maximum capacity of data storage on the device. | 368.64 TB |
| Supported storage drive interfaces | SAS |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,3,5,6,10 |
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
 |
| Ports & interfaces | |
| USB connectivity The product has USB connector. |
|
| Serial interface type | RJ-45 |
| RJ-45 ports quantity | 3 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (2U) |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Performance | |
| Device class The category to which this device belongs. | Small & Medium Business |
| Power | |
| Power supply unit (PSU) capacity | 913 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 449 mm |
| Depth The distance from the front to the back of something. | 553 mm |
| Height The measurement of the product from head to foot or from base to top. | 85 mm |
| SKU | 428400 |
| MPN | 7Y71A000WW |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Product Use | General |
