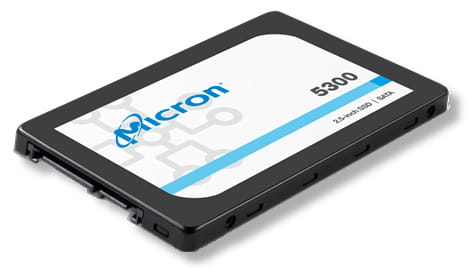

ThinkSystem 2.5" 5300 1.92TB Mainstream SATA 6Gb Hot Swap SSD
The ThinkSystem 5300 Mainstream SATA 6Gb solid state drives (SSDs) use Micron NAND flash memory technology with a SATA 6Gbps interface to provide an affordable solution for mixed read/write workloads.
This product guide provides essential presales information to understand the 5300 Mainstream SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
This product guide provides essential presales information to understand the 5300 Mainstream SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| Features | |
| SSD form factor The size of the solid-state drive, given in inches | 2.5" |
| SSD capacity The Solid State Drive's data storage capacity. | 1920 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Serial ATA III |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D TLC NAND |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Hardware encryption |
 |
| Read speed The speed at which a device can read data. | 540 MB/s |
| Write speed The speed at which a device can write data. | 520 MB/s |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 75000 IOPS |
| Read latency | 175 µs |
| Write latency | 100 µs |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 3000000 h |
| Power | |
| Power consumption (read) | 3 W |
| Power consumption (write) | 3.8 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 3.13 G |
| Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode | 1500 G |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
| SKU | 711734 |
| MPN | 4XB7A17090 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
