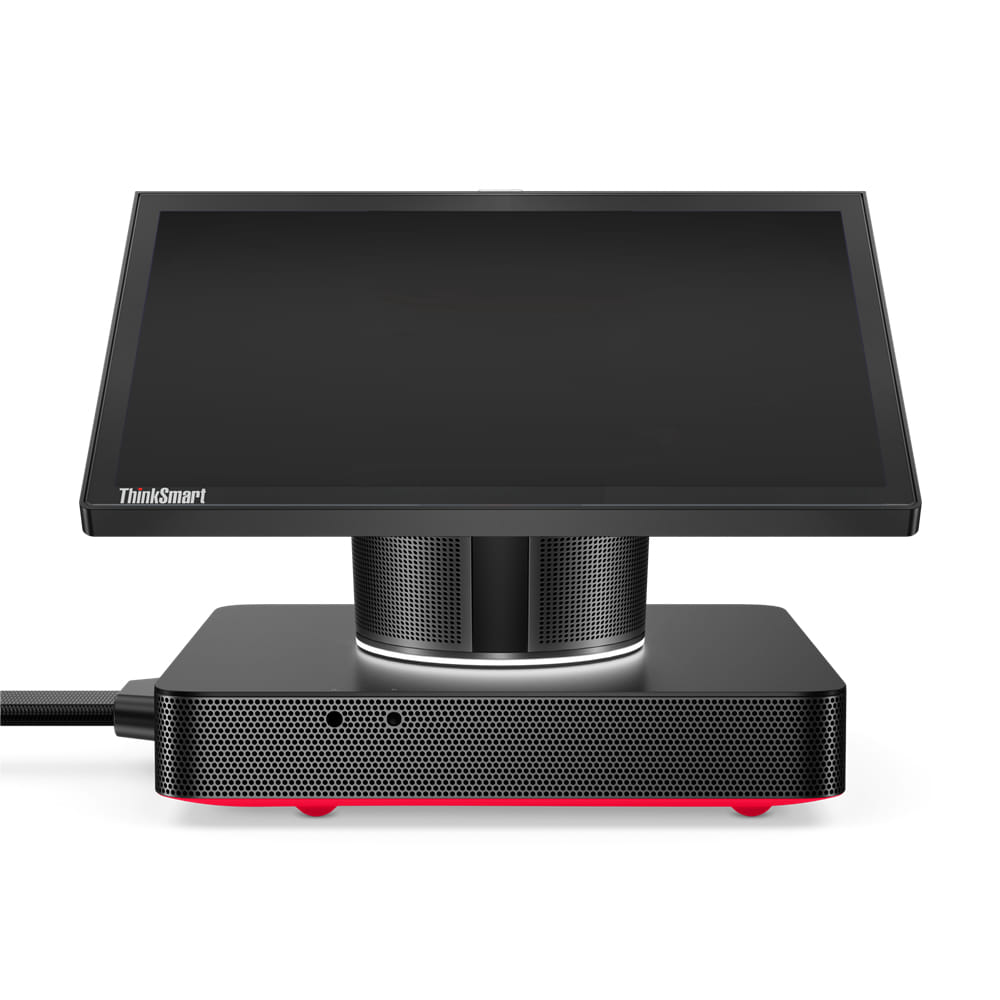

Lenovo ThinkSmart Hub for Zoom Rooms

Display
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	25.6 cm (10.1")
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	1920 x 1200 pixels
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	Full HD
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:10
Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.	320 cd/m²
Panel type	WVA
Anti-glare screen Always gives an optimal view, even in direct sunlight.

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model The model number for the processor in a computer.	i5-8365UE
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	1.6 GHz
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	4.1 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Processor cache	6 MB
Processor cache type	Smart Cache

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	16 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4-SDRAM
Maximum internal memory The maximum internal memory which is available in the product.	16 GB
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	2400 MHz
Memory layout (slots x size) The slots and size of the memory for the CPU.	1 x 8 GB
Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM.	On-board

Storage
Total storage capacity The total amount of data that can be stored on the device.	256 GB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
Number of storage drives installed Amount of storage drives built into the device.	1
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	256 GB
SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware.	PCI Express 3.0
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
SSD form factor The size of the solid-state drive, given in inches	M.2
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.

Graphics
Discrete graphics card
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel® UHD Graphics 620

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Number of speakers The quantity of speakers included in/with the product.	4
RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.	12 W
Built-in microphone Microphone that is found inside the product.
Audio system System used to play music or speech.	HD

Camera
Built-in camera The product has an integrated camera.

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 5 (802.11ac)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Dual Band Wireless-AC 9560
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	2x2
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.0

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	1.4a
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	1
Combo headphone/mic port

Design
Colour name	Black
Product colour The colour e.g. red, blue, green, black, white.	Black
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington

Performance
Product type The sub-category of the product.	All-in-One PC
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel SoC
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version	2.0
BIOS password
HDD user password

Software
Operating system architecture The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.	64-bit
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 11 IoT Enterprise GAC
Operating system language	English

Power
AC adapter power	90 W

Weight & dimensions
Width (with stand)	240 mm
Depth (with stand)	200 mm
Height (with stand)	185.3 mm
Weight (with stand)	2.45 kg

Certificates
Certification	TÜV

Sustainability
Sustainability certificates	RoHS

Packaging content
Mouse included A mouse is included with this product.
Keyboard included A keyboard is part of the bundle/set.

Technical details
Box contents	ThinkSmart One Cable (1.83m)
