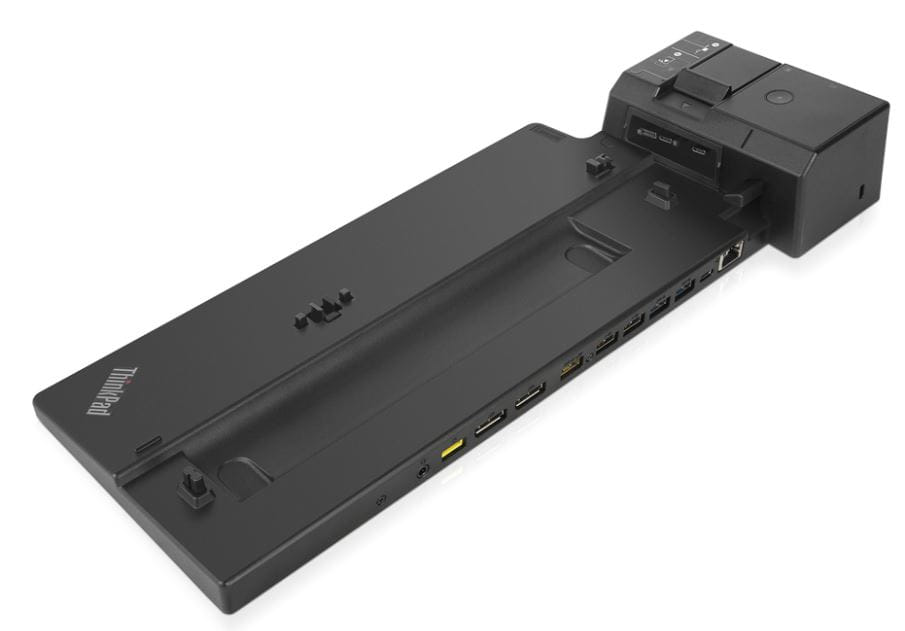

Lenovo 40AH0135AU, Docking, 10,100,1000 Mbit/s, Black, Kensington, Lenovo, P52s, L580, L480, T580, P580p, T480s, T480, x1 Carbon Gen 6, x280
Lenovo ThinkPad Pro Docking Station (40AH) provides the best docking experience for Large Enterprise ThinkPad customers. The innovative side-connector, designed exclusively for ThinkPad notebooks, provides a driver-free way to connect conveniently and securely to a range of USB accessoriesand external displays, while rapid charging support and a mirrored power button make going mobile even easier.. Designed for large enterprise environments, ThinkPad Docking Stations support PxE boot, Wake-on-LAN, and MAC address pass-through, simplifying asset management for IT managers. Painstakingly crafted and extensively tested, ThinkPad Docking Stations provide a seamless docking experience for professionals.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Docking |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 2 |
| Microphone in The socket where a microphone is connected to the device. |
 |
| Combo headphone/mic port |
 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Charging function |
|
| Brand compatibility What other brands this brand can be used with. | Lenovo |
| Compatibility The other products, software and hardware this product can be used with. | P52s, L580, L480, T580, P580p, T480s, T480, X1 Carbon Gen 6, X280 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 135 W |
| Power supply type The type of power supply which this product uses. | External |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 159 mm |
| Depth The distance from the front to the back of something. | 378 mm |
| Height The measurement of the product from head to foot or from base to top. | 54.1 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 765 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 422 mm |
| Package height The distance from the top to the bottom of the packaging. | 86 mm |
| Package weight Weight of the packaged product. | 1.95 kg |
| Packaging content | |
| AC adapter included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| SKU | 446585 |
| MPN | 40AH0135AU |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
