Lenovo 46C9110, SAS, Serial ATA, PCI Express x8, 0, 1, 10, 12 Gbit/s, DDR3, 1866 MHz

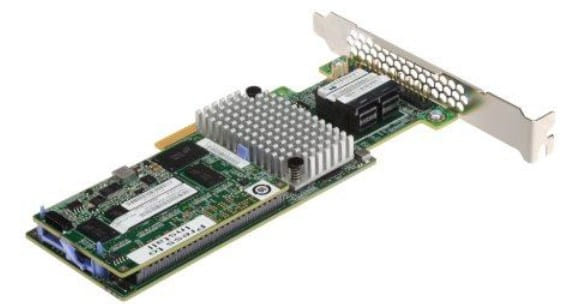

The ServeRAID M5210 and M5210e SAS/SATA Controllers are high performance 12 Gb SAS controllers for internal disk storage. They are part of the ServeRAID M Series family that offers a complete server storage solution consisting of RAID controllers, cache/flash modules, energy packs, and software feature upgrades in an ultra-flexible offerings structure. These products are optimized to deliver the performance that is demanded by the ever-growing I/O requirements of today's enterprises. The M5210 is a low profile PCIe adapter, and the M5210e is integrated in servers such as the x3750 M4 and x3650 M4 HD. The two controllers share a common set of upgrades, simplifying inventory management.
| Ports & interfaces | |
| Supported storage drive interfaces | SAS, Serial ATA |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express x8 |
| PCI Express slots version | 3.0 |
| Internal mini-SAS ports | 2 |
| Performance | |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 10 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 12 Gbit/s |
| SSD support Solid-state drive (SSD), a type of memory, can be used with this product. |
 |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR3 |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 1866 MHz |
| S.M.A.R.T. support |
|
| Certification | UL, cUL, IEC60950, EMC, FCC, TUV, CE, VCCI, BSMI, C-tick, KC |
| Compatible products Other products that can be used with this product. | Microsoft Windows Server 2008 R2 Microsoft Windows Server 2008, Datacenter x64 Edition Microsoft Windows Server 2008, Datacenter x86 Edition Microsoft Windows Server 2008, Enterprise x64 Edition Microsoft Windows Server 2008, Enterprise x86 Edition Microsoft Windows Server 2008, Web x64 Edition Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 5 Server with Xen x64 Edition Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server Edition Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Enterprise Linux Server (SLES) 12 SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for x86 VMware vSphere 5.0 (ESXi) VMware vSphere 5.1 (ESXi) VMware vSphere 5.5 (ESXi) VMware vSphere 6.0 (ESXi) |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 40 °C |
| Operating relative humidity (H-H) | 8 - 93% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 69 mm |
| Depth The distance from the front to the back of something. | 168 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 99 g |
| Package dimensions (WxDxH) | 143 x 238 x 51 mm |
| Package weight Weight of the packaged product. | 320 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| PCI Card form factor Design of the PCI Card. | Half-height (low-profile) |
| SKU | 827289 |
| MPN | 46C9110 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lenovo.com/ |
