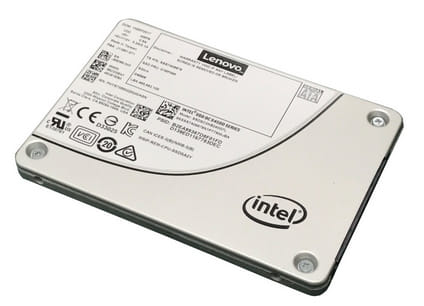

ThinkSystem 2.5" Intel S4500, 240 GB, SATA 6Gb, Hot Swap, SSD
The Intel S4500 Entry SATA solid-state drives (SSDs) for Lenovo servers use Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance. Compared with the Intel S3520 series, these new drives offer improved performance and lower latency. The S4500 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
| Features | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES |
| SSD form factor The size of the solid-state drive, given in inches | 2.5" |
| SSD capacity The Solid State Drive's data storage capacity. | 240 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Serial ATA III |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D TLC |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Hardware encryption |
 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6 Gbit/s |
| Read speed The speed at which a device can read data. | 500 MB/s |
| Write speed The speed at which a device can write data. | 190 MB/s |
| Maximum read (4KB) | 69000 IOPS |
| Maximum write (4KB) | 16000 IOPS |
| Read latency | 36 µs |
| Write latency | 36 µs |
| S.M.A.R.T. support |
|
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
|
| Hot-swap |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2000000 h |
| Power | |
| Power consumption (write) | 2.6 W |
| Operational conditions | |
| Operating vibration Environmental requirements for vibration in operating mode | 2.17 G |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 3.13 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1000 G |
| Other features | |
| Product colour The colour e.g. red, blue, green, black, white. | Aluminium |
| SKU | 445838 |
| MPN | 7SD7A05742 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Drive Form Factor | 2.5" |
| Connection Interface | SATA |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lenovo.com/ |
