Lenovo 4XC7A08228, Internal, Wired, PCI Express, Ethernet, 25000 Mbit/s, Green
The ThinkSystem QLogic QL41262 10/25GbE SFP28 2 Port PCIe Ethernet Adapter is based on eighth generation technology from Cavium and features Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. It is suitable for existing 10Gb customers who want to maintain 10Gb network support plus provide the investment protection of supporting 25GbE network speeds.
This product guide provides essential presales information to understand the adapter and its key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about QLogic 25 GbE network adapter and consider its use in IT solutions.
The ThinkSystem QLogic QL41262 10/25GbE SFP28 2 Port PCIe Ethernet Adapter is based on eighth generation technology from Cavium and features Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. It is suitable for existing 10Gb customers who want to maintain 10Gb network support plus provide the investment protection of supporting 25GbE network speeds.

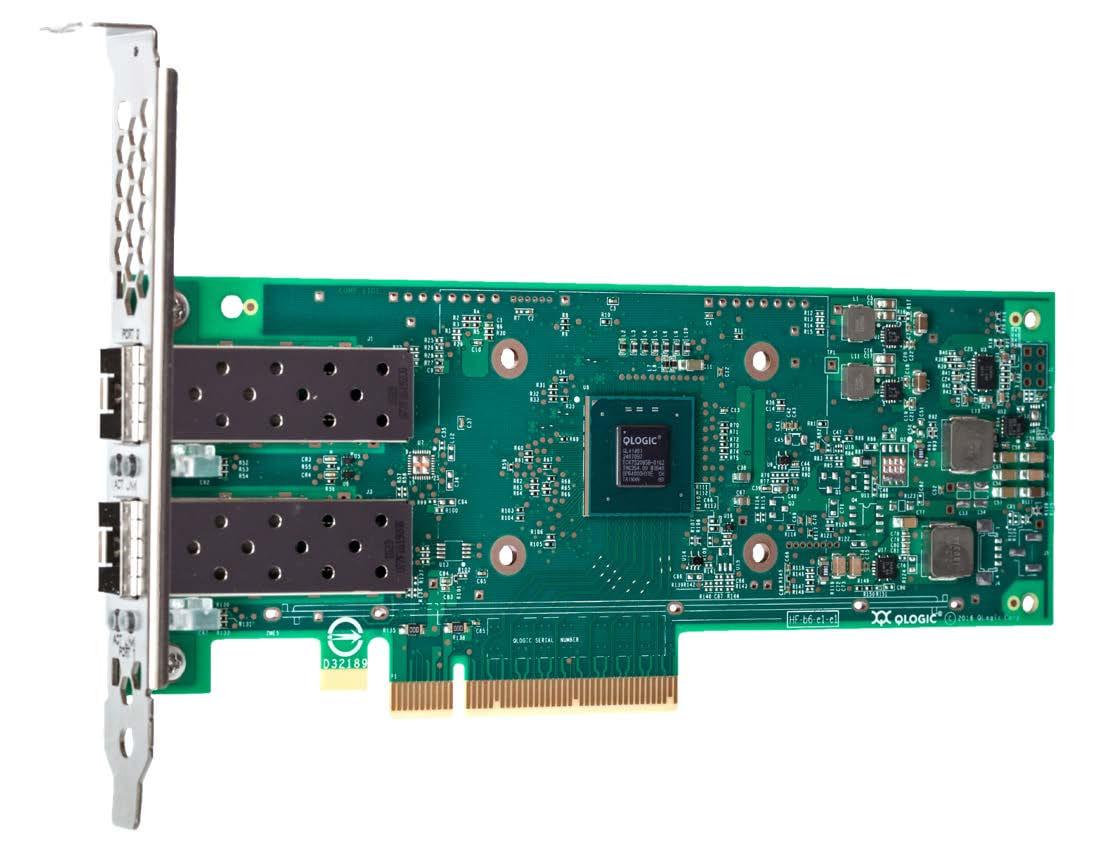

The following figure shows the ThinkSystem QLogic QL41262 10/25GbE SFP28 2 Port PCIe Ethernet Adapter.
This product guide provides essential presales information to understand the adapter and its key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about QLogic 25 GbE network adapter and consider its use in IT solutions.
The ThinkSystem QLogic QL41262 10/25GbE SFP28 2 Port PCIe Ethernet Adapter is based on eighth generation technology from Cavium and features Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. It is suitable for existing 10Gb customers who want to maintain 10Gb network support plus provide the investment protection of supporting 25GbE network speeds.
The following figure shows the ThinkSystem QLogic QL41262 10/25GbE SFP28 2 Port PCIe Ethernet Adapter.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP28 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 25000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1as |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,10000,25000 Mbit/s |
| Design | |
| Component for What this product is used as a part of (component for). | Server |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| Internal The product is built in. |
|
| LED indicators |
|
| Certification | UL 60950-1 CSA C22.2 TUV EN60950-1 TUV IEC 60950-1 CB Certified FCC Rules,CFR Title 47, Part 15, Subpart Class A Industry Canada, ICES-003: Class A EN55032 EN55024 EN61000-3-2 EN61000-3-3 VCCI: Class A AS/NZS: Class A KC-RRA Class A BSMI CNS 13438 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth The distance from the front to the back of something. | 167 mm |
| Height The measurement of the product from head to foot or from base to top. | 69 mm |
| Other features | |
| Harmonized System (HS) code | 85176990 |
| SKU | 704600 |
| MPN | 4XC7A08228 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lenovo.com/ |
