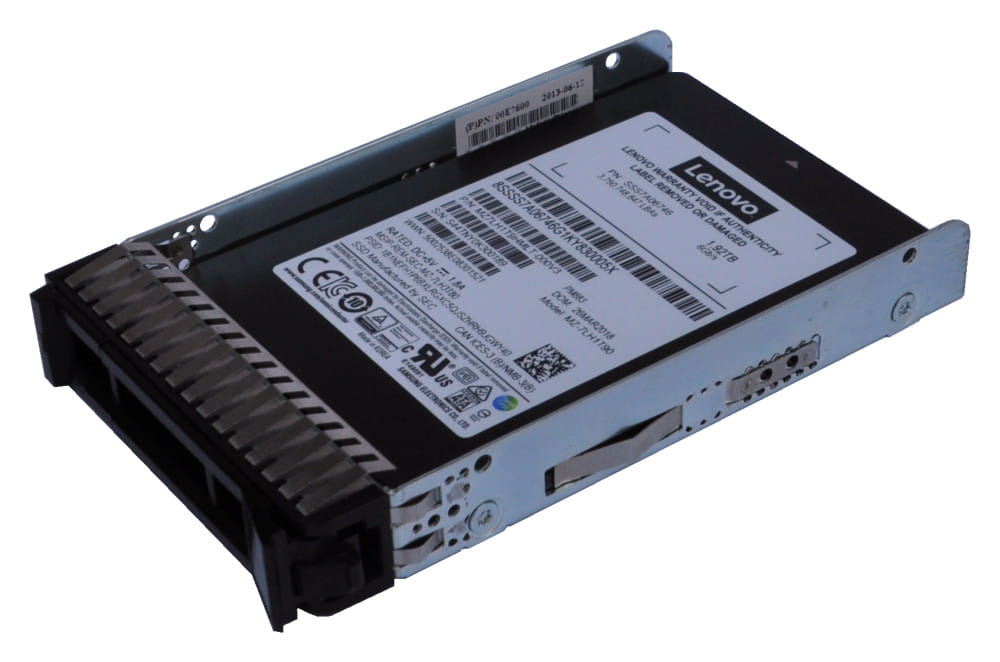

Lenovo 4XB7A10196, 480 GB, 2.5", 550 MB/s, 6 Gbit/s
The Lenovo ThinkSystem PM883 Entry SATA 6Gb solid-state drives (SSDs) in capacities ranging from 240 GB to 7.86 TB are general-purpose SSDs based on the Samsung PM883 platform. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the PM883 Entry SATA SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
This product guide provides essential presales information to understand the PM883 Entry SATA SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| Features | |
| SSD form factor The size of the solid-state drive, given in inches | 2.5" |
| SSD capacity The Solid State Drive's data storage capacity. | 480 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Serial ATA III |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6 Gbit/s |
| Read speed The speed at which a device can read data. | 550 MB/s |
| Write speed The speed at which a device can write data. | 520 MB/s |
| Random read (4KB) | 98000 IOPS |
| Random write (4KB) | 24000 IOPS |
| Read latency | 120 µs |
| Write latency | 40 µs |
| Hot-swap |
 |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2000000 h |
| Certification | UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) |
| Power | |
| Power consumption (read) | 2.3 W |
| Power consumption (write) | 2.9 W |
| Operational conditions | |
| Operating vibration Environmental requirements for vibration in operating mode | 2.17 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1500 G |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 70 mm |
| Depth The distance from the front to the back of something. | 100 mm |
| Height The measurement of the product from head to foot or from base to top. | 7 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 58 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 133 mm |
| Package depth The distance from the front to the back of the packaging. | 174 mm |
| Package height The distance from the top to the bottom of the packaging. | 63 mm |
| Package weight Weight of the packaged product. | 433 g |
| SKU | 552566 |
| MPN | 4XB7A10196 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Drive Form Factor | 2.5" |
| Connection Interface | SATA |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.lenovo.com/ |
