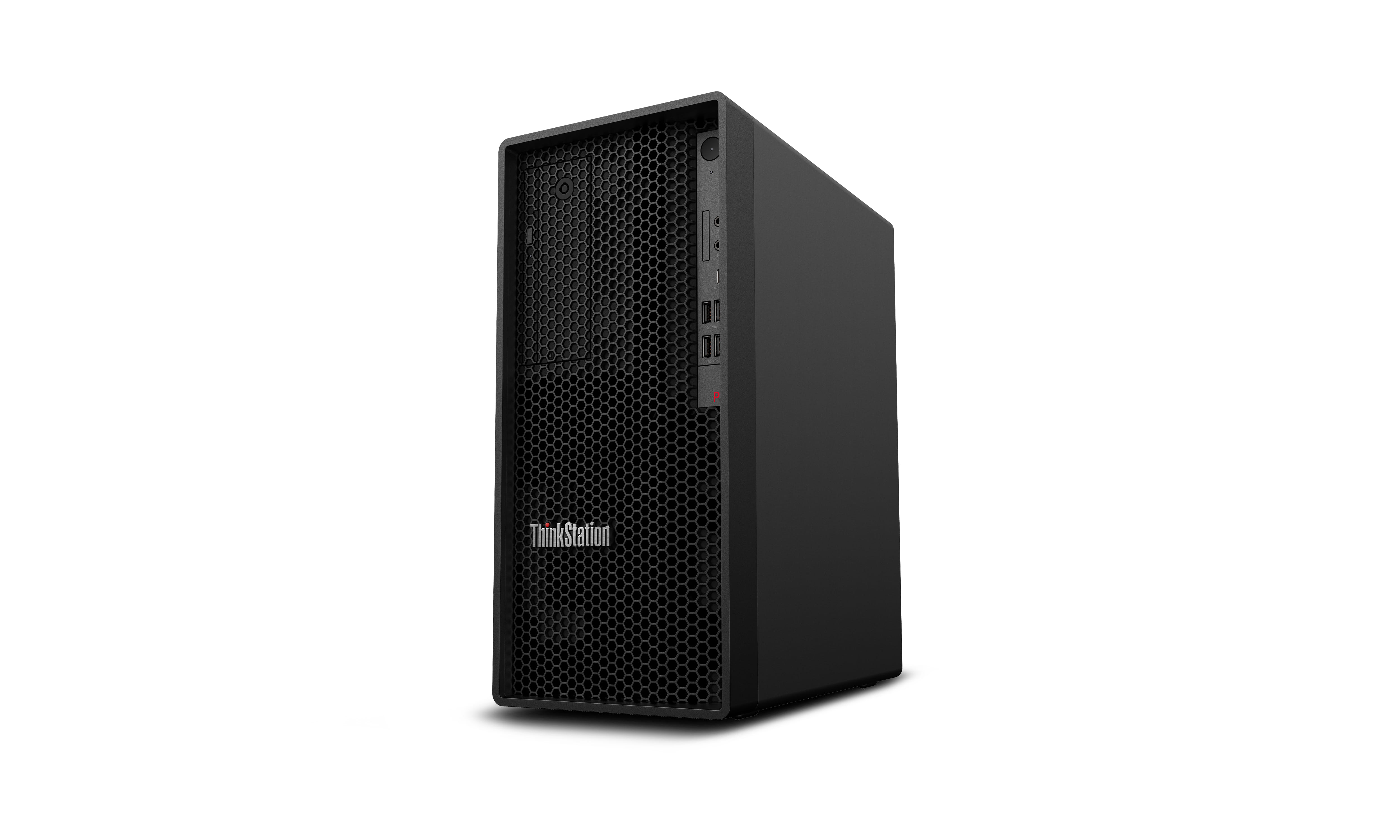

LENOVO ThinkStation P2 Tower Intel i7-14700 16GB RAM 1TB SSD + 1TB HDD NVIDIA RTX 4060-8GB W680 PCle4.0 USB DP Gigabit Ethernet rWIN11 3 YR WTY
LENOVO ThinkStation P2 Tower Intel i7-14700 16GB RAM 1TB SSD + 1TB HDD NVIDIA RTX 4060-8GB W680 PCle4.0 USB DP Gigabit Ethernet rWIN11 3 YR WTY
Technical Specification
Form Factor Tower
Processors Intel Core i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB
Memory 2x 8GB UDIMM DDR5-4400 Non-ECC
PCIe NVMe Drive 1x 1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal
SATA/SAS Drive 1x 1TB HDD 7200rpm 3.5' SATA6Gb/s
Bays Three internal disk bays, up to two 3.5' bays plus one 2.5' bay: Bay 1 supports one 3.5' HDD, standard; or one 2.5' HDD / SSD, optional Bay 2 supports one 3.5' HDD or 2.5' HDD / SSD, optional Bay 3 supports one 2.5' HDD / SSD, optional Front Access HDD Bay supports one 3.5' HDD or 2.5' HDD / SSD
Expansion Slots Supports four PCIe slots with two PCIe 4.0 x16 and two PCIe 3.0 x1. Slot 1: PCIe 4.0 x16, full height, full length, 75W, double-width Slot 2: PCIe 3.0 x1, full height, half length, 25W Slot 3: PCIe 4.0 x16 (x4 lanes), full height, half length, 25W Slot 4: PCIe 3.0 x1, full height, half length, 25W
Memory Slots Four DDR5 UDIMM slots, dual-channel capable
Operating System WIN11 PRO
Discrete Graphics 1x NVIDIA GeForce RTX 4060 8GB
Rear Ports
4x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Keyboard USB Calliope Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Wireless N/A
Chipset Intel W680 Chipset
Base Warranty 3Y Premier
Dimensions (WxDxH) 170 x 315.35 x 376 mm (6.7 x 12.4 x 14.8 inches, with feet)
Weight 9.67 kg (21.32 lbs, maximum configuration)
Technical Specification
Form Factor Tower
Processors Intel Core i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB
Memory 2x 8GB UDIMM DDR5-4400 Non-ECC
PCIe NVMe Drive 1x 1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal
SATA/SAS Drive 1x 1TB HDD 7200rpm 3.5' SATA6Gb/s
Bays Three internal disk bays, up to two 3.5' bays plus one 2.5' bay: Bay 1 supports one 3.5' HDD, standard; or one 2.5' HDD / SSD, optional Bay 2 supports one 3.5' HDD or 2.5' HDD / SSD, optional Bay 3 supports one 2.5' HDD / SSD, optional Front Access HDD Bay supports one 3.5' HDD or 2.5' HDD / SSD
Expansion Slots Supports four PCIe slots with two PCIe 4.0 x16 and two PCIe 3.0 x1. Slot 1: PCIe 4.0 x16, full height, full length, 75W, double-width Slot 2: PCIe 3.0 x1, full height, half length, 25W Slot 3: PCIe 4.0 x16 (x4 lanes), full height, half length, 25W Slot 4: PCIe 3.0 x1, full height, half length, 25W
Memory Slots Four DDR5 UDIMM slots, dual-channel capable
Operating System WIN11 PRO
Discrete Graphics 1x NVIDIA GeForce RTX 4060 8GB
Rear Ports
4x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Keyboard USB Calliope Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Wireless N/A
Chipset Intel W680 Chipset
Base Warranty 3Y Premier
Dimensions (WxDxH) 170 x 315.35 x 376 mm (6.7 x 12.4 x 14.8 inches, with feet)
Weight 9.67 kg (21.32 lbs, maximum configuration)
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model The model number for the processor in a computer. | i7-14700 |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 20 |
| Processor threads | 28 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Number of processors installed Number of processors in the product. | 1 |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 16 GB |
| Maximum internal memory The maximum internal memory which is available in the product. | 128 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR5-SDRAM |
| Memory layout (slots x size) The slots and size of the memory for the CPU. | 2 x 8 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 4x DIMM |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 4400 MHz |
| Non-ECC |
 |
| Memory channels | Dual-channel |
| Storage | |
| Total storage capacity The total amount of data that can be stored on the device. | 2 TB |
| Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive). | HDD+SSD |
| Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM. | DVD±RW |
| Number of storage drives installed Amount of storage drives built into the device. | 2 |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed The number of hard drives built into the device. | 1 |
| HDD speed The rotational speed of a hard disk expressed in rotations per minute. The faster the better. | 7200 RPM |
| HDD size The amount of data that the hard drive can store. | 3.5" |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity The Solid State Drive's data storage capacity. | 1 TB |
| SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware. | PCI Express 4.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
|
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
 |
| Graphics | |
| Discrete graphics card |
|
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. | NVIDIA GeForce RTX 4060 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel UHD Graphics 770 |
| Graphics card HDMI ports quantity | 1 |
| Graphics card DisplayPorts quantity | 3 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 2 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Line-out |
|
| Line-in |
|
| Combo headphone/mic port |
|
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Tower |
| Volume The amount of a substance contained. | 17 L |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Vertical |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Performance | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel W680 |
| Audio chip | Realtek ALC897Q-CG |
| Audio system System used to play music or speech. | High Definition Audio |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of speakers The quantity of speakers included in/with the product. | 1 |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Password protection type | BIOS, Power on, Supervisor |
| Trusted Platform Module (TPM) |
|
| Trusted Platform Module (TPM) version | 2.0 |
| Product type The sub-category of the product. | Workstation |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Windows 11 Pro |
| Operating system architecture The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up. | 64-bit |
| Operating system language | English |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 750 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz. | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Certificates | |
| Certification | ENERGY STAR 8.0 EPEAT Gold Registered ErP Lot 3 RoHS compliant TCO Certified 9.0 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 170 mm |
| Depth The distance from the front to the back of something. | 315.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 376 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9.67 kg |
| Packaging content | |
| Display included This product includes a display. |
|
| Mouse included A mouse is included with this product. |
|
| Mouse connectivity | Wired |
| Keyboard included A keyboard is part of the bundle/set. |
|
| Keyboard connectivity | Wired |
| SKU | 781484 |
| MPN | 30FR000FAU |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Processor | Intel Core i7-14700 |
| Operating System | Windows 11 Pro |
| Graphics Card | GeForce RTX 4060 |
| RAM | 16GB RAM |
| Desktop Type | Branded Computers |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.lenovo.com/ |
