Lenovo 01GR250, Wired, PCI Express, Fiber, 25000 Mbit/s, Green
ConnectX-4 from Mellanox is a family of high-performance and low-latency Ethernet and InfiniBand adapters. The ConnectX-4 Lx EN adapters are available in 40 Gb and 25 Gb Ethernet speeds and the ConnectX-4 Virtual Protocol Interconnect (VPI) adapters support either InfiniBand or Ethernet.
These adapters address virtualized infrastructure challenges, delivering best-in-class performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms.

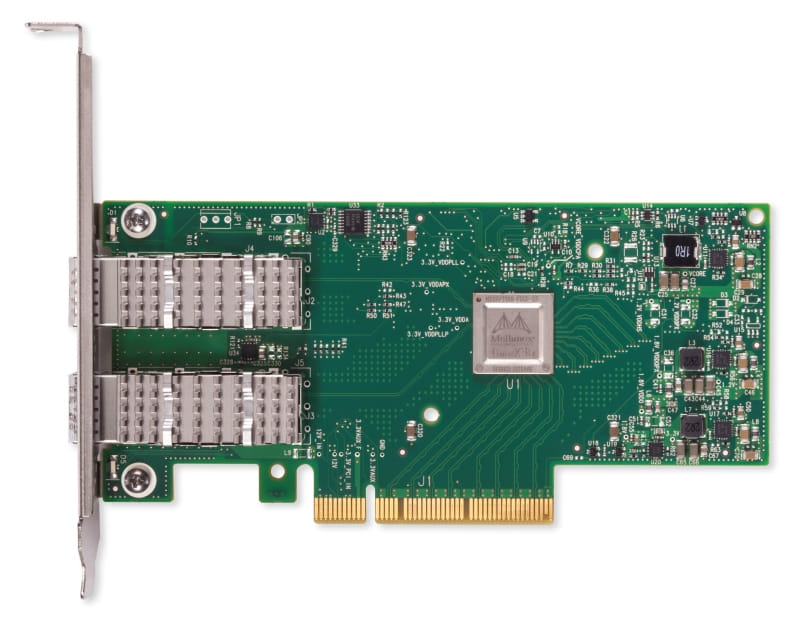

The following figure shows the Mellanox ConnectX-4 2x100GbE/EDR IB QSFP28 VPI Adapter (the standard heat sink has been removed in this photo).
These adapters address virtualized infrastructure challenges, delivering best-in-class performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms.
The following figure shows the Mellanox ConnectX-4 2x100GbE/EDR IB QSFP28 VPI Adapter (the standard heat sink has been removed in this photo).
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Fiber |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP28 |
| PCI version | 3.0 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 25000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1AX,IEEE 802.1Q,IEEE 802.1Qau,IEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.1Qbg,IEEE 802.3ad,IEEE 802.3az |
| Design | |
| Component for What this product is used as a part of (component for). | Server |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| Internal The product is built in. |
 |
| PCI Card form factor Design of the PCI Card. | Full-height (low-profile) |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | CB, cTUVus, CE |
| Certification | CE, FCC, VCCI, ICES, RCM |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Technical details | |
| Sustainability certificates | RoHS |
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Microsoft Windows Server 2012 (no SR-IOV support) Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition, U7 Red Hat Enterprise Linux 7, U2 SUSE LINUX Enterprise Server 11 for AMD64/EM64T, SP4** SUSE LINUX Enterprise Server 12, SP1** VMware ESXi 5.5, U3* VMware ESXi 6.0, U2* |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| SKU | 497231 |
| MPN | 01GR250 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lenovo.com/ |
