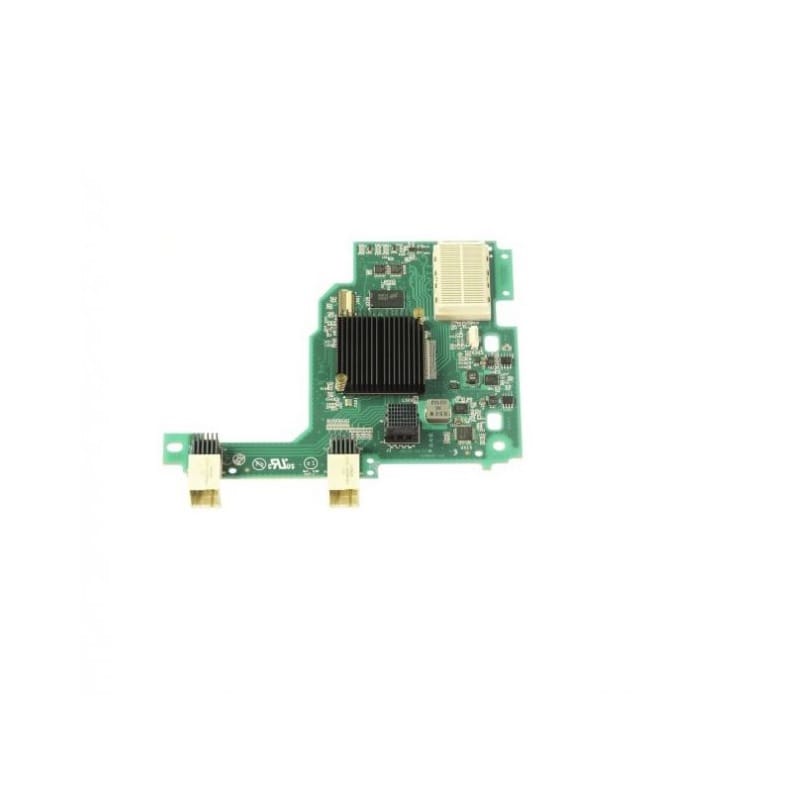

Emulex 10GbE VFA Advanced II for BladeCenter HS23
The Emulex 10GbE Virtual Fabric Adapter II for BladeCenter® HS23 and Emulex 10GbE Virtual Fabric Adapter Advanced II for BladeCenter HS23 are the options available to the BladeCenter Virtual Fabric portfolio. These adapters are supported on the new HS23 blade to enable up to four uplink/downlink ports for increased I/O bandwidth and maximum performance. The combination of HS23 and Emulex options enable clients to simplify their I/O infrastructure by reducing the number of switches needed inside the chassis while supporting Ethernet and virtual NICs (vNICs) using the same hardware components.
The virtual NICs are configured to meet the client's mix of network connectivity and throughput demands for today's complex server application environments. Both physical 10 Gbps ports on the adapter can be divided into four virtual ports with bandwidth allocation in 100 Mbps increments up to the maximum of 10 Gbps per physical port. The Emulex 10GbE VFA Advanced II adds FCoE and iSCSI hardware initiator functionality to enable data center infrastructure convergence.
- Two 10 Gb Ethernet ports (1 Gb and 10 Gb auto-negotiation)
- Full-duplex (FDX) capability (40 Gbps throughput)
- 10 Gb ports operating either in a virtual NIC (vNIC) or physical NIC (pNIC) mode
- IPv4/IPv6 offload
- IPv4 TCP chimney offload
- IEEE 802.1Q VLAN tagging
- VLAN insertion and extraction
- Jumbo frames up to 9000 bytes
- Load balancing and failover teaming support
- Enhanced Ethernet (draft) support
- Supports Serial over LAN (SoL) and concurrent KVM (cKVM)
- Preboot Execution Environment (PXE) support
- Wake on LAN support
- Message Signal Interrupt (MSI-X) support
- CFFh form factor can be combined with a CIOv expansion card on the same blade server
- BladeCenter HS23's onboard dual-port 10 GbE NIC pass-through capability
Specifications
Device Type
- Network adapter - 2 ports
Form Factor
- Plug-in card - low profile
Interface (Bus) Type
- PCI Express 2.0 x8
Connectivity Technology
- Wired
Data Link Protocol
- Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate
- 10 Gbps
Network/Transport Protocol
- TCP/IP, UDP/IP
Features
- Full-duplex capability, fault tolerance, load balancing, VLAN support, wake on LAN (WOL), Data Center Bridging Exchange (DCBX) support, priority-based flow control, enhanced transmission selection, Jumbo Frames support, TCP Chimney Offload support, teaming support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), adaptive load balancing (ALB)
Compliant Standards
- IEEE 802.1Q, IEEE 802.3ad (LACP)
Interfaces
- 2 x network
Compatible Slots
- 1 x PCI Express 2.0 x8 - low-profile
Compliant Standards
- CISPR 22 Class A, BSMI CNS 13438 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, FCC Part 15 A, FCC CFR47 Part 15 B, GOST-R, ANSI C63.4, IEC 60950-1 Second Edition
OS Required
- Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows Web Server 2008, Microsoft Windows Server 2008 Datacenter, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, Red Hat Enterprise Linux 6, Red Hat Linux Enterprise Server 5 x64 Edition, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Web Server 2008 x64 Edition
Width
- 5.9 in
Depth
- 4.9 in
Height
- 0.6 in
Designed For
- Lenovo BladeCenter HS23 7875
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 10000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000,10000 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Jumbo frames support |
|
| Design | |
| Internal The product is built in. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 5 - 80% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 160 mm |
| Depth The distance from the front to the back of something. | 125 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 130 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 229 mm |
| Package depth The distance from the front to the back of the packaging. | 208 mm |
| Package height The distance from the top to the bottom of the packaging. | 58 mm |
| Package weight Weight of the packaged product. | 400 g |
| SKU | 383831 |
| MPN | 90Y9332 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Warranty Period | 1 Year Warranty |
