Lenovo CA NetXtreme PCIe 1Gb 2Port RJ45 Adapter

Item No:
518330
MPN:
7ZT7A00482
$135.87

Lenovo CA NetXtreme PCIe 1Gb 2Port RJ45 Adapter

$135.87
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 2-4 business days
Store Availability
  • 3-5 business days at Bankstown Store
  • 3-5 business days at Castle Hill Store
  • 2-4 business days at Northmead Store
Shipping Estimate

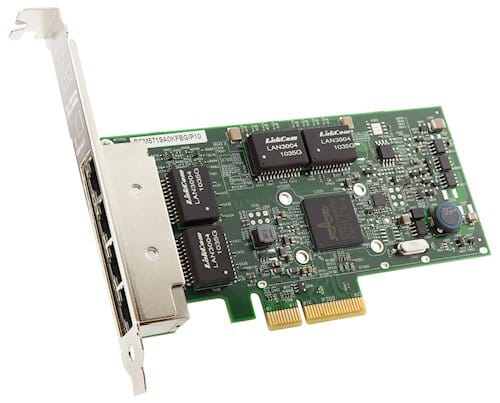

CA NetXtreme PCIe 1Gb 2-Port RJ45

The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCI Express adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.

Ports & interfaces
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. Wired
Host interface Interface that enables a host controller to communicate with a driver. PCI Express
Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. Ethernet
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 2
PCI version 2.0
Network
Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. 1000 Mbit/s
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.1Q,IEEE 802.3az
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. 10,100,1000 Mbit/s
Cabling technology Type of cable technology performance. 10/100/1000BaseT(X)
Jumbo frames support
iSCSI support
LAN controller Broadcom BCM5720
Design
Product colour The colour e.g. red, blue, green, black, white. Green
Internal The product is built in.
PCI Card form factor Design of the PCI Card. Full-height (low-profile)
LED indicators
Certification EN55022 EN55024 EN60950 / CE EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 IEC 950 CB Scheme FCC 47 CFR Part 15 Class A UL 1950 CSA C22.2 950-95 VCCI AS/NZSCISPR 22 / C-tick RRL for KC BSMI UL 94-/V
System requirements
Compatible operating systems List of desktop operating systems tested as compatible with this product. Microsoft Windows Server 2008 HPC Edition, Windows 2008HPC Microsoft Windows Server 2008 R2 Microsoft Windows Server 2008, Datacenter x64 Edition Microsoft Windows Server 2008, Enterprise x64 Edition Microsoft Windows Server 2008, Enterprise x86 Edition Microsoft Windows Server 2008, Standard x64 Edition Microsoft Windows Server 2008, Standard x86 Edition Microsoft Windows Server 2008, Web x64 Edition Microsoft Windows Server 2008, Web x86 Edition Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Microsoft Windows Small Business Server 2008 Premium Edition Microsoft Windows Small Business Server 2008 Standard Edition Red Hat Enterprise Linux 5 Server Edition Red Hat Enterprise Linux 5 Server with Xen x64 Edition Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server Edition Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE LINUX Enterprise Server 10 for AMD64/EM64T SUSE LINUX Enterprise Server 10 for x86 SUSE LINUX Enterprise Server 10 with Xen for AMD64/EM64T SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for x86 SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T SUSE LINUX Enterprise Server 12 VMware ESX 4.1 VMware ESXi 4.1 VMware vSphere 5.0 (ESXi) VMware vSphere 5.1 (ESXi VMware vSphere 5.5 (ESXi) VMware vSphere 6.0 (ESXi)
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Width The measurement or extent of something from side to side. 109 mm
Depth The distance from the front to the back of something. 19 mm
Height The measurement of the product from head to foot or from base to top. 69 mm
Packaging data
Quantity The number of products there are. 1
Other features
Flow control support
Jumbo frames 9600
More Information
SKU 518330
MPN 7ZT7A00482
Brand Lenovo
Product Condition Brand New/Unused
Adapter Type Networking Adapter
Stock Availability Available for Shipping
Product Use Gaming
Warranty Period 1 Year Warranty
Warranty Contact https://www.lenovo.com/
