Lenovo 4XB7A13633, 240 GB, 2.5", 560 MB/s, 6 Gbit/s
The Intel S4610 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. The drives are available in either 2.5-inch or 3.5-inch drive form factor.
This product guide provides essential presales information to understand the S4610 SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4610 SSDs and consider their use in IT solutions.
The Intel S4610 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. Compared with the Intel S4600 series, these new drives offer improved performance and lower latency.
The Intel SSD S4610 drives with 3 full drives writes per day (DWD) are an excellent choice as cache in transactional application and high-speed storage for enterprise databases.

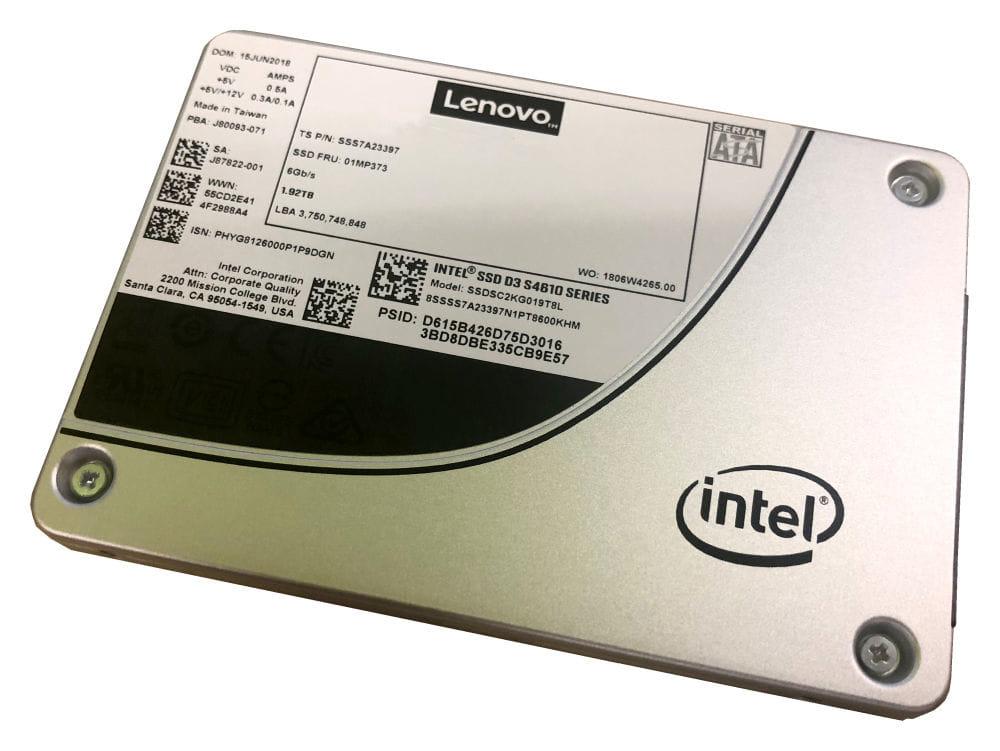

The Intel S4610 Enterprise Mainstream SATA solid-state drive is shown in the following figure.
By combining the Intel 3D NAND TLC Flash Memory technology and Intel
This product guide provides essential presales information to understand the S4610 SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4610 SSDs and consider their use in IT solutions.
The Intel S4610 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. Compared with the Intel S4600 series, these new drives offer improved performance and lower latency.
The Intel SSD S4610 drives with 3 full drives writes per day (DWD) are an excellent choice as cache in transactional application and high-speed storage for enterprise databases.
The Intel S4610 Enterprise Mainstream SATA solid-state drive is shown in the following figure.
By combining the Intel 3D NAND TLC Flash Memory technology and Intel
| Features | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES |
| SSD capacity The Solid State Drive's data storage capacity. | 240 GB |
| SSD form factor The size of the solid-state drive, given in inches | 2.5" |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Serial ATA III |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D TLC NAND |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Hardware encryption |
 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6 Gbit/s |
| Read speed The speed at which a device can read data. | 560 MB/s |
| Write speed The speed at which a device can write data. | 320 MB/s |
| Random read (4KB) | 92000 IOPS |
| Random write (4KB) | 28000 IOPS |
| Read latency | 36 µs |
| Write latency | 37 µs |
| S.M.A.R.T. support |
|
| Hot-swap |
|
| End-to-End Data Protection |
|
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2000000 h |
| TBW rating | 1400 |
| Certification | FCC, CA/CSA-CEI/IEC, EN 55024, EN 55022, EN-60950-1, UL/CSA, C-Tick, BSMI, KCC, WEEE |
| Power | |
| Power consumption (average) | 2.4 W |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 63 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -55 - 95 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration Environmental requirements for vibration in operating mode | 2.17 G |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 3.13 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1000 G |
| Maximum operating altitude | 3050 m |
| Other features | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
| SKU | 809448 |
| MPN | 4XB7A13633 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Drive Form Factor | 2.5" |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lenovo.com/ |
