Lenovo 7SD7A05753, 800 GB, 2.5"
The 12 Gb SAS HUSMM32 Enterprise Performance FIPS SED solid-state drives (SSDs) are high-performance self-encrypting drives (SEDs) that adhere to the Federal Information Processing Standard 140-2 (FIPS 140-2) cryptographic standard. These drives are available in either 2.5-inch or 3.5-inch drive form factor for System x servers.
Self-encrypting drives provide the ultimate in security for data-at-rest and help reduce IT drive retirement costs in the data center. When combined with the compatible RAID controllers, SED drives in Lenovo servers deliver a cost-effective, secure solution for businesses of all sizes. Self-encrypting drives are also an excellent choice if you need to comply with government or industry rules regarding data privacy and encryption.

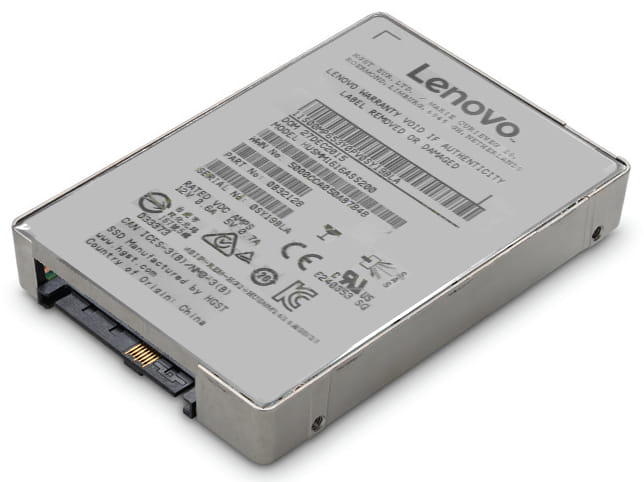

The 12 Gb SAS Enterprise Performance FIPS SED SSD is shown in the following figure.
Self-encrypting drives provide the ultimate in security for data-at-rest and help reduce IT drive retirement costs in the data center. When combined with the compatible RAID controllers, SED drives in Lenovo servers deliver a cost-effective, secure solution for businesses of all sizes. Self-encrypting drives are also an excellent choice if you need to comply with government or industry rules regarding data privacy and encryption.
The 12 Gb SAS Enterprise Performance FIPS SED SSD is shown in the following figure.
| Features | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | FIPS 140-2 |
| SSD capacity The Solid State Drive's data storage capacity. | 800 GB |
| SSD form factor The size of the solid-state drive, given in inches | 2.5" |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | SAS |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Random read (4KB) | 240000 IOPS |
| Random write (4KB) | 130000 IOPS |
| S.M.A.R.T. support |
 |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Hot-swap |
|
| End-to-End Data Protection |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2500000 h |
| Endurance rating (for 5 years) | 10 GB/day |
| TBW rating | 15 |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 VCCI V-3/2013-04 Class B CNS 13438: 2006 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU REACH 1907/2006 WEEE Directive 2002/96/EC |
| Power | |
| Power consumption (average) | 9 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration Environmental requirements for vibration in operating mode | 2.17 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1500 G |
| Other features | |
| Product colour The colour e.g. red, blue, green, black, white. | Aluminium |
| Compliance certificates | RoHS |
| Compatible products Other products that can be used with this product. | ThinkSystem SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530 |
| SKU | 809469 |
| MPN | 7SD7A05753 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.lenovo.com/ |
