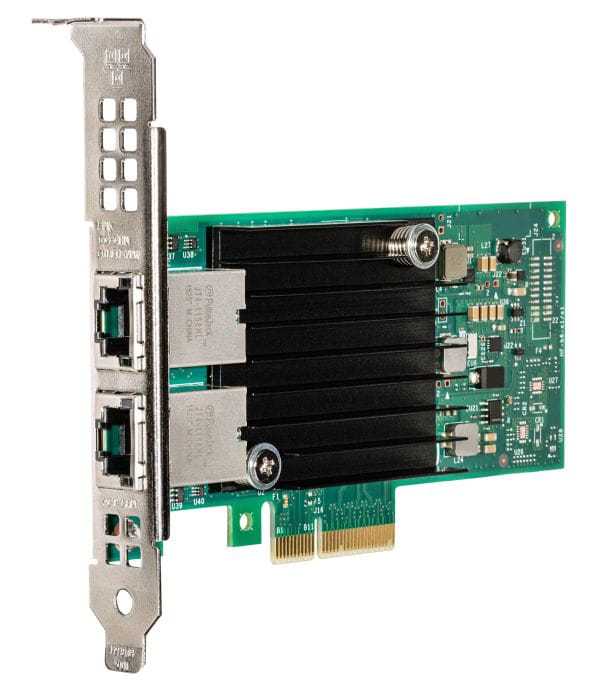

Intel X550-T2 Dual Port 10GBase-T
The Intel X550 10GBASE-T Adapter is a low cost, low power 10 GbE performance adapter suitable for all data center applications. With support for standard CAT 6a cabling with RJ45 connectors, the X550 offers a low barrier of entry to 10 Gb Ethernet networking.
This product guide provides essential presales information to understand the Intel X550 offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Intel X550 adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the Intel X550 offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Intel X550 adapters and consider their use in IT solutions.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 10000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.1Qbg,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3an,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000BaseT(X) |
| Jumbo frames support |
|
| VLAN tagging |
|
| LAN controller | Intel® X550 |
| Design | |
| Recommended usage What the product should be used for, and how it should be used (e.g. ambient temperature). | Server |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Green |
| Internal The product is built in. |
|
| PCI Card form factor Design of the PCI Card. | Full-height (low-profile) |
| LED indicators |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating altitude | 0 - 3048 m |
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 with Xen VMware ESXi 5.5 VMware ESXi 6.0 VMware ESXi 6.5 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 16 mm |
| Depth The distance from the front to the back of something. | 134 mm |
| Height The measurement of the product from head to foot or from base to top. | 69 mm |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Other features | |
| Flow control support |
|
| Intel® Virtualization Technology (Intel® VT) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. | VT-c |
| Intel Virtual Machine Device Queues (VMDq) |
|
| Intel Flexible Port Partitioning |
|
| Receive Side Scaling (RSS) |
|
| Jumbo frames | 9500 |
| SKU | 447827 |
| MPN | 00MM860 |
| Brand | Lenovo |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.lenovo.com/ |
