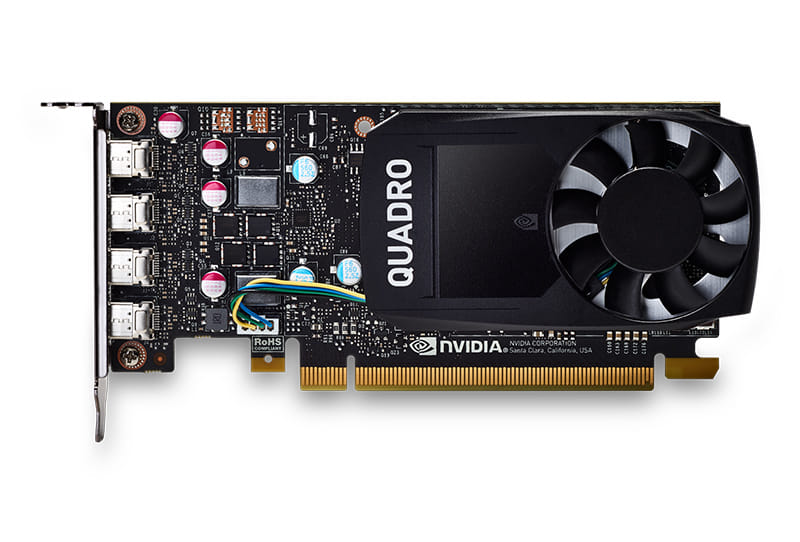

Leadtek Quadro P620, Quadro P620, 2 GB, GDDR5, 128 bit, 5120 x 2880 pixels, PCI Express x16 3.0
Pascal GPU Technology
With 512 CUDA cores, the Quadro P620 provides performance and efficiency for CAD, DCC and visualization professionals in small and power efficient form factor.
Frame Buffer and Memory Bandwidth
2GB GDDR5 memory with up to 80 GB/s memory bandwidth delivers the performance boost and responsiveness demanded by entry level graphics applications.
Pascal Dynamic Load Balancing
Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization.
H.264 and HEVC Encode/Decode Engines
Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with one dedicated H.264 and HEVC encode engines and a dedicated decode engine that are independent of 3D/compute pipeline.
NVIDIA GPU BOOST 3.0
Achieve higher application performance without exceeding the power and thermal envelope of the board. Pascal GPU technology maximizes the boost potential of the GPU.
3D Graphics Architecture
Full-Scene Antialiasing (FSAA)
Dramatically reduce visual aliasing artifacts or "jaggies" with up to 64X FSAA for unparalleled image quality and highly realistic scenes.
32K Texture and Render Processing
Texture from and render to 32K x 32K surfaces to support applications that demand the highest resolution and quality image processing.
Pascal Memory Compression
Increase bandwidth by up to 20% by reducing the amount of data fetched from memory for each frame with fourth generation, lossless delta compression.
Advanced Display Features
DisplayPort 1.4
Support four 4K monitors @ 60Hz, or 5K @ 60Hz, the P620 supports HDR color for 4K @ 60Hz for 10/12b HEVC decode and up to 4K @ 60Hz for 10b HEVC encode.
NVIDIA nView Advanced Desktop Software
Gain unprecedented end-user control of the desktop experience for increased productivity in single large display or multi-display environments.
NVIDIA Quadro Mosaic Technology
Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality, optimized for still image visualizations and unified desktops.
Mosaic Technology, available only on Quadro
Multi-GPU Technology
NVIDIA Multi-GPU Technology Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of Quadro GPUs to dramatically improve the production workflow.
Top Professional Applications Certified
Industry Solutions
With 512 CUDA cores, the Quadro P620 provides performance and efficiency for CAD, DCC and visualization professionals in small and power efficient form factor.
Frame Buffer and Memory Bandwidth
2GB GDDR5 memory with up to 80 GB/s memory bandwidth delivers the performance boost and responsiveness demanded by entry level graphics applications.
Pascal Dynamic Load Balancing
Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization.
H.264 and HEVC Encode/Decode Engines
Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with one dedicated H.264 and HEVC encode engines and a dedicated decode engine that are independent of 3D/compute pipeline.
NVIDIA GPU BOOST 3.0
Achieve higher application performance without exceeding the power and thermal envelope of the board. Pascal GPU technology maximizes the boost potential of the GPU.
3D Graphics Architecture
Full-Scene Antialiasing (FSAA)
Dramatically reduce visual aliasing artifacts or "jaggies" with up to 64X FSAA for unparalleled image quality and highly realistic scenes.
32K Texture and Render Processing
Texture from and render to 32K x 32K surfaces to support applications that demand the highest resolution and quality image processing.
Pascal Memory Compression
Increase bandwidth by up to 20% by reducing the amount of data fetched from memory for each frame with fourth generation, lossless delta compression.
Advanced Display Features
DisplayPort 1.4
Support four 4K monitors @ 60Hz, or 5K @ 60Hz, the P620 supports HDR color for 4K @ 60Hz for 10/12b HEVC decode and up to 4K @ 60Hz for 10b HEVC encode.
NVIDIA nView Advanced Desktop Software
Gain unprecedented end-user control of the desktop experience for increased productivity in single large display or multi-display environments.
NVIDIA Quadro Mosaic Technology
Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality, optimized for still image visualizations and unified desktops.
Mosaic Technology, available only on Quadro
Multi-GPU Technology
NVIDIA Multi-GPU Technology Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of Quadro GPUs to dramatically improve the production workflow.
Top Professional Applications Certified
Industry Solutions
| Processor | |
| CUDA CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs. |
 |
| CUDA cores | 512 |
| Graphics processor family The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA). | NVIDIA |
| Graphics processor Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics. | Quadro P620 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 5120 x 2880 pixels |
| Maximum displays per videocard | 4 |
| Memory | |
| Discrete graphics adapter memory | 2 GB |
| Graphics adapter memory type The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture, and is a computer memory architecture that allows the graphics processing unit to share system memory. Other abreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate. | GDDR5 |
| Memory bus Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC. | 128 bit |
| Memory bandwidth (max) | 80 GB/s |
| Ports & interfaces | |
| Interface type | PCI Express x16 3.0 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 4 |
| DisplayPort version | 1.4 |
| Performance | |
| DirectX version DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system. | 12.0 |
| Shader model version A shader is a program used in 3D computer graphics to determine the final surface properties of an object or image. This can include arbitrarily complex descriptions of light absorption and diffusion, texture mapping, reflection and refraction, shadowing, surface displacement and post-processing effects. It is also used to refer to video graphics hardware units that run these programs. | 5.1 |
| OpenGL version OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives. | 4.5 |
| Dual Link DVI A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible. |
 |
| Design | |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 40 W |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 129 g |
| Height The measurement of the product from head to foot or from base to top. | 68.9 mm |
| Width The measurement or extent of something from side to side. | 144.8 mm |
| Packaging data | |
| User guide |
|
| Drivers included |
|
| Package type The type of product package e.g. box. | Box |
| SKU | 438476 |
| MPN | P620 |
| Brand | Leadtek |
| Product Condition | Brand New/Unused |
| GPU Series | nVidia Quadro P620 |
| Graphics RAM Size | 2 GB |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.leadtek.com/ |
