LDR Outdoor Smart Solar Box,IP55,Touch Screen,Waterproof Cabniet,Solar Power Input( <100VD), 2 PoE Port Up to 90W,6 PoE Port Up to 30W, L2 Mange,White
LDR Smart Solar Box, IP55, With Touch Screen
SKU: RCLDR-DB-QU3082SPG-T
Description:

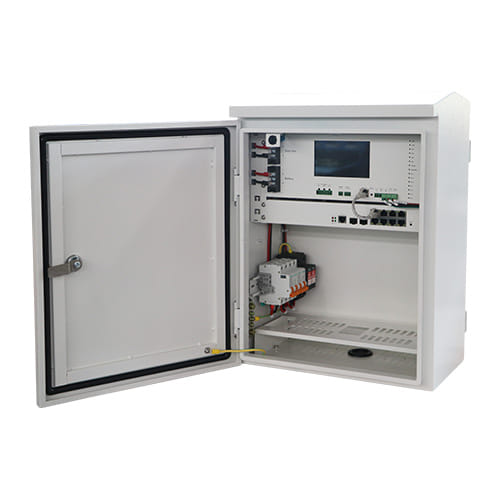

RCLDR-OD-QB2082SPG-T is an outdoor smart solar powered box, powered by solar battery, with MPPT controller, PoE switch, circuit-breaker, surge protector inside. It can be applied for surveillance monitoring, forest monitoring, etcWith #5 inch touched screen. Customers can check some key parameters on site,ex solar parameters, battery parameters, control DC output, alarm information, and modify the IP, the humidity and temperature,serial number etc.
Data Sheet: Click Here
User Manual: Click Here
Cabinet Display : Click Here
Screen Schematic: Click Here
Touch Screen Vedio: Click Here
Software Installation: Click Here
*Please contact us for more Software platfrom details after purchase. *
Key Features
BYO: * Need to buy your own solar
Solar power input, input <100VDC;
Battery: DC 12V lead-acid or Lithium Battery - *Customer Provide*
Dimension(H-W-D): 500mm-380mm-220mm
Load Capacity : 70kg
Provide DC 3 channel power output, can remotely control, detect the output voltage and current;
Supports 2 port PoE power each up to 90W, 6 port PoE power each up to 30W;
Network Switch: 8*/10/100/1000M Base-TX 30W PoE, 2* 1000M SFP, unmanaged
Supports L2 management, such as QoS, VLAN, MSTP, Multi-broadcast, ports management and PoE management;
With Touch Screen, 5 inch, resolution ratio 480*800
With MPPT controller, connected the solar battery and charge the storage battery ;
The box adopts waterproof, anti-rust treatment, suitable for long time outdoor use.
Software platform- control remotely.
SKU: RCLDR-DB-QU3082SPG-T
Description:
RCLDR-OD-QB2082SPG-T is an outdoor smart solar powered box, powered by solar battery, with MPPT controller, PoE switch, circuit-breaker, surge protector inside. It can be applied for surveillance monitoring, forest monitoring, etcWith #5 inch touched screen. Customers can check some key parameters on site,ex solar parameters, battery parameters, control DC output, alarm information, and modify the IP, the humidity and temperature,serial number etc.
Data Sheet: Click Here
User Manual: Click Here
Cabinet Display : Click Here
Screen Schematic: Click Here
Touch Screen Vedio: Click Here
Software Installation: Click Here
*Please contact us for more Software platfrom details after purchase. *
Key Features
BYO: * Need to buy your own solar
Solar power input, input <100VDC;
Battery: DC 12V lead-acid or Lithium Battery - *Customer Provide*
Dimension(H-W-D): 500mm-380mm-220mm
Load Capacity : 70kg
Provide DC 3 channel power output, can remotely control, detect the output voltage and current;
Supports 2 port PoE power each up to 90W, 6 port PoE power each up to 30W;
Network Switch: 8*/10/100/1000M Base-TX 30W PoE, 2* 1000M SFP, unmanaged
Supports L2 management, such as QoS, VLAN, MSTP, Multi-broadcast, ports management and PoE management;
With Touch Screen, 5 inch, resolution ratio 480*800
With MPPT controller, connected the solar battery and charge the storage battery ;
The box adopts waterproof, anti-rust treatment, suitable for long time outdoor use.
Software platform- control remotely.
| SKU | 808016 |
| MPN | RCLDR-DB-QU3082SPG-T |
| Brand | LDR |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | N/A |
