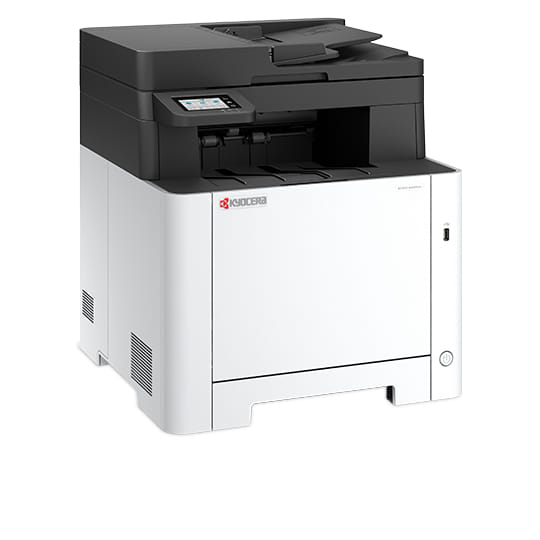

Kyocera MA2101CFX Colour Print/Copy/Scan/Fax Multi-Function Printer

Printing
Duplex printing mode	Auto
Print resolution colour	1200 x 1200 DPI
Print resolution black	1200 x 1200 DPI
Print technology Indicates the method used to print by this product.	Laser
Printing Producing a paper copy of information stored on a computer.	Colour printing
Duplex printing Feature of computer printers and multifunction printers (MFPs) that allows the printing of a sheet of paper on both sides (automatically or manually)
Maximum resolution Maximum printing resolution.	1200 x 1200 DPI
Print speed (black, normal quality, A4/US Letter) The print speed of a printer for black & white A4 pages, normal quality. The exact speed varies depending on the system configuration, software program, and document complexity.	21 ppm
Print speed (colour, normal quality, A4/US Letter)	21 ppm
Duplex print speed (black, normal quality, A4/US Letter)	11 ppm
Duplex print speed (colour, normal quality, A4/US Letter)	11 ppm
Warm-up time Time needed before printing after power switched on.	32 s
Time to first page (black, normal)	11 s
Time to first page (colour, normal)	12.5 s
N-in-1 print function
N-up printing	2, 4
Watermark printing
Economical printing Whether or not the product is equipped with features that allow economical printing.
Secure printing

Copying
Duplex copying
Copying Description of copying function (colour or monochrome).	Colour copying
Maximum copy resolution The greatest amount of detail that can be produced by a copy of a document.	600 x 600 DPI
Maximum copy size	A4
Copy speed (black, normal quality, A4)	21 cpm
Copy speed (colour, normal quality, A4)	21 cpm
Time to first copy (black, normal)	10 s
Time to first copy (colour, normal)	12 s
Maximum number of copies	999 copies
Copier resize	25 - 400%
N-in-1 copy function
N-in-1 copy function (N=)	2, 4
Copy programming function
ID-card copy function
Edge erase function
Stamp function
PC free copying
Watermark copying

Scanning
Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides.
Scanning To convert a document or picture into digital form for storage or processing on a computer, by scanning it using a scanner.	Colour scanning
Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi.	600 x 600 DPI
Scanner type Indicates the type of scanner this product is.	Flatbed & ADF scanner
Scan technology Indicates the technology used to scan by this product	CIS
Scan to	E-mail, FTP, PC, SMB, TWAIN, USB, WIA
Scan speed (colour)	22 ppm
Scan speed (black)	27 ppm
Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg).	JPEG, TIFF
Document formats supported The type of document formats that can be read/produced with this device e.g. .docx, .pdf.	PDF, XPS
Scan drivers	TWAIN, WIA

Fax
Duplex faxing
Faxing To send an exact copy of a document made by electronic scanning and transmitted as data by telecommunications links.	Mono faxing
Fax resolution (black)	400 x 400 DPI
Fax transmission speed	2 sec/page
Modem speed The speed at which data is transferred by a modem.	33.6 Kbit/s
Fax memory	256 pages
Fax forwarding Sends a fax received in memory to another pre-programmed fax number.
Fax delayed sending Indicates whether delayed sending is available on this product

Features
Recommended duty cycle	600 - 1200 pages per month
Maximum duty cycle The maximum number of prints/copies made by a printer/copier in a fixed period.	65000 pages per month
Duplex functions The product has the ability to print, scan etc. on both sides of a sheet of paper.	Print
Number of print cartridges The amount of print cartridges. A print cartridge is a container holding a quantity of ink which is inserted into a inkjet printer mechanism.	4
Printing colours The colours that can be produced by the printer.	Black, Cyan, Magenta, Yellow
Page description languages	OpenXPS, PCL 6, PDF, PostScript 3, TIFF, XPS
Printer fonts	Barcode, Bitmap, PCL, PostScript
Replacement cartridges	TK-5480K TK-5480Y TK-5480M TK-5480C TK-5490K TK-5490Y TK-5490M TK-5490C

Input & output capacity
Total number of input trays	2
Total input capacity	300 sheets
Total output capacity	150 sheets
Paper tray 1 input capacity	250 sheets
Multi-Purpose tray
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF)
Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets	50 sheets
Maximum number of input trays	3
Maximum input capacity	550 sheets
Maximum output capacity Maximum number of sheets this product can hold in all available standard and optional output trays.	150 sheets

Paper handling
Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series.	A4
Maximum print size The maximum size that an image can be printed with a good resolution.	216 x 356 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents.	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Non-ISO print media sizes	Legal, Letter
Custom media width	70 - 216 mm
Custom media length	148 - 356 mm
Paper tray media weight	60 - 163 g/m²
Multi-Purpose Tray media weight	60 - 220 g/m²

Ports & interfaces
Direct printing With direct printing it is possible to print your photographs or other documents directly to a printer from a compatible device, without the use of a computer.
USB port The device features a socket into which a USB cable can be plugged.

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Wi-Fi Direct
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Near Field Communication (NFC)
Mobile printing technologies Apps etc. which allow users to send a print job from a smartphone or tablet to a printer via a wireless network.	Chromebook Native Print, Kyocera Mobile Print, Mopria Print Service

Performance
Maximum internal memory The maximum amount of memory inside a product, usually measured in bytes e.g megabytes (MB) or gigabytes (GB).	1024 MB
Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	1024 MB
Compatible memory cards Types of memory cards which can be used with this product.	SD, SDHC
Built-in processor Whether or not a processor is built into the device.
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	ARM Cortex
Processor model The model number for the processor in a computer.	A53
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	1000 MHz
Introduction year	2025
Sound pressure level (printing)	48 dB
Sound pressure level (copying)	48 dB
Sound pressure level (standby)	30 dB
Sound pressure level (quiet mode)	44 dB
Sound power level (standby)	30 dB

Design
Product colour The colour e.g. red, blue, green, black, white.	Black, White
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Home & office
Built-in display A display which is part of the product, so you do not need to attach another display.
Display The description of display that can includes display type, resolution, size etc.	TFT
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	6.86 cm (2.7")
Control type The way in which the device is controlled.	Touch
Colour display

Power
Power consumption (max) The maximum amount of power used by the device.	1062 W
Power consumption (printing)	345 W
Power consumption (copying)	345 W
Power consumption (ready)	41 W
Power consumption (sleep)	0.4 W
Energy Star Typical Electricity Consumption (TEC)	0.2 kWh/week
AC input voltage The voltage of the AC electricity that is inputted into the product.	220 - 240 V
AC input frequency	50/60 Hz

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Certificates
Certification	GS, TÜV, CE

Weight & dimensions
Width The measurement or extent of something from side to side.	410 mm
Depth The distance from the front to the back of something.	416 mm
Height The measurement of the product from head to foot or from base to top.	457 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	26 kg

Packaging data
Package width The distance from one side of the packaging to the other.	596 mm
Package depth The distance from the front to the back of the packaging.	571 mm
Package height The distance from the top to the bottom of the packaging.	599 mm
Package weight Weight of the packaged product.	33 kg

Packaging content
Cartridge(s) included
Included cartridge capacity (black)	1500 pages
Included cartridge capacity (CMY)	1500 pages
Cables included	AC
