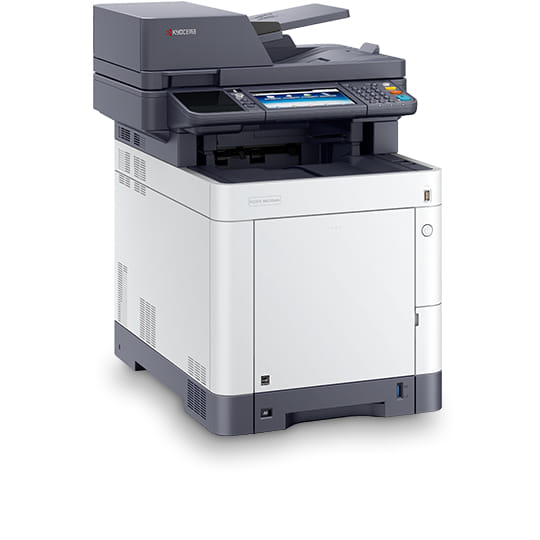

Kyocera M6230CIDN ECOSYS Multi-Function Colour Laser Printer (Print/Copy/Scan)

Printing
Duplex printing mode	Auto
Print resolution colour	1200 x 1200 DPI
Print technology Indicates the method used to print by this product.	Laser
Printing Producing a paper copy of information stored on a computer.	Colour printing
Duplex printing Feature of computer printers and multifunction printers (MFPs) that allows the printing of a sheet of paper on both sides (automatically or manually)
Maximum resolution Maximum printing resolution.	1200 x 1200 DPI
Print speed (black, normal quality, A4/US Letter) The print speed of a printer for black & white A4 pages, normal quality. The exact speed varies depending on the system configuration, software program, and document complexity.	30 ppm
Print speed (colour, normal quality, A4/US Letter)	30 ppm
Duplex print speed (black, normal quality, A4/US Letter)	15 ppm
Duplex print speed (colour, normal quality, A4/US Letter)	15 ppm
Warm-up time Time needed before printing after power switched on.	26 s
Time to first page (black, normal)	6.5 s
Time to first page (colour, normal)	7.5 s
N-in-1 print function
N-up printing	2,4,6,8,9,16,25
Watermark printing
Economical printing Whether or not the product is equipped with features that allow economical printing.
Secure printing
Poster printing function

Copying
Duplex copying
Duplex copying mode	Auto
Copying Description of copying function (colour or monochrome).	Colour copying
Maximum copy resolution The greatest amount of detail that can be produced by a copy of a document.	600 x 600 DPI
Copy speed (black, normal quality, A4)	30 cpm
Copy speed (colour, normal quality, A4)	30 cpm
Copy speed (colour, normal, US Letter)	15 cpm
Duplex copy speed (black, US Letter)	15 ppm
Time to first copy (black, normal)	7.5 s
Time to first copy (colour, normal)	9 s
Maximum number of copies	999 copies
Copier resize	25 - 400%
N-in-1 copy function
N-in-1 copy function (N=)	2,4
Copy programming function
ID-card copy function

Scanning
Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides.
Duplex scanning mode	Auto
Scanning To convert a document or picture into digital form for storage or processing on a computer, by scanning it using a scanner.	Colour scanning
Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi.	600 x 600 DPI
Scanner type Indicates the type of scanner this product is.	Flatbed & ADF scanner
Scan technology Indicates the technology used to scan by this product	CIS/CCD
Scan to	E-mail, FTP, SMB, TWAIN, USB, WIA
Scan speed (colour)	40 ppm
Scan speed (black)	60 ppm
Duplex scan speed (colour)	17 ppm
Duplex scan speed (black)	26 ppm
Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg).	JPEG,TIFF
Document formats supported The type of document formats that can be read/produced with this device e.g. .docx, .pdf.	PDF,XPS
Greyscale levels	256
Scan drivers	TWAIN,WIA

Fax
Faxing To send an exact copy of a document made by electronic scanning and transmitted as data by telecommunications links.

Features
Recommended duty cycle	1500 - 5000 pages per month
Maximum duty cycle The maximum number of prints/copies made by a printer/copier in a fixed period.	100000 pages per month
Duplex functions The product has the ability to print, scan etc. on both sides of a sheet of paper.	Copy, Print, Scan
Digital sender Device similar to a scanner which converts paper documents into digital information for emailing, archiving, document management and more.
Number of print cartridges The amount of print cartridges. A print cartridge is a container holding a quantity of ink which is inserted into a inkjet printer mechanism.	4
Printing colours The colours that can be produced by the printer.	Black, Cyan, Magenta, Yellow
Page description languages	PCL 5c,PCL 6,PCL XL,PostScript 3,XPS
Printer fonts	Barcode, Bitmap, PCL, Windows
Number of printer fonts	93
Replacement cartridges	TK-5270K, TK-5270C, TK-5270M, TK-5270Y

Input & output capacity
Total number of input trays	1
Total input capacity	250 sheets
Total output capacity	250 sheets
Paper tray 1 input capacity	250 sheets
Paper tray 2 input capacity	500 sheets
Paper tray 3 input capacity	500 sheets
Paper tray 4 input capacity	500 sheets
Multi-Purpose tray
Multi-Purpose tray input capacity	100 sheets
Paper input type	Cassette, Paper tray
Auto document feeder (ADF)
Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets	75 sheets
Maximum number of input trays	4
Maximum input capacity	1850 sheets
Maximum output capacity Maximum number of sheets this product can hold in all available standard and optional output trays.	250 sheets

Paper handling
Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series.	A4
Maximum print size The maximum size that an image can be printed with a good resolution.	216 x 356 mm
Paper tray media types	Plain paper
Multi-purpose tray media types	Bond paper, Envelopes, Labels, Legal, Letter, Letterhead, Plain paper, Recycled paper, Thick paper, Thin paper
ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents.	A4,A5,A6
ISO B-series sizes (B0...B9)	B5,B6
Non-ISO print media sizes	Folio, Legal, Letter
Custom media width	70 - 216 mm
Custom media length	148 - 356 mm
Paper tray media weight	60 - 163 g/m²
Multi-Purpose Tray media weight	60 - 220 g/m²
Auto Document Feeder (ADF) media weight	50 - 120 g/m²
Duplex media weight	60 - 163 g/m²

Ports & interfaces
Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.	Ethernet, USB 2.0
Direct printing With direct printing it is possible to print your photographs or other documents directly to a printer from a compatible device, without the use of a computer.
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	3
Optional connectivity	Ethernet, Wireless LAN

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Near Field Communication (NFC)
Email protocols	POP3,SMTP
Email over SSL SSL is an email encryption method. Email encryption protects the content from being read by any but the intended recipients.
Mobile printing technologies Apps etc. which allow users to send a print job from a smartphone or tablet to a printer via a wireless network.	Google Cloud Print,Kyocera Mobile Print,Mopria Print Service

Performance
Maximum internal memory The maximum amount of memory inside a product, usually measured in bytes e.g megabytes (MB) or gigabytes (GB).	3000 MB
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	1000 MB
Compatible memory cards Types of memory cards which can be used with this product.	SD,SDHC
Built-in processor Whether or not a processor is built into the device.
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	ARM Cortex-A9
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	1200 MHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	2
Coprocessor
Coprocessor frequency	0.1 GHz
Sound pressure level (printing)	49.5 dB
Sound pressure level (copying)	49.5 dB
Sound pressure level (standby)	30 dB
Sound pressure level (quiet mode)	45 dB

Design
Product colour The colour e.g. red, blue, green, black, white.	Black, White
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Business
Built-in display A display which is part of the product, so you do not need to attach another display.
Display The description of display that can includes display type, resolution, size etc.	TFT
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	17.8 cm (7")
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Control type The way in which the device is controlled.	Touch
Colour display

Power
Power consumption (max) The maximum amount of power used by the device.	1179 W
Power consumption (average operating)	496 W
Power consumption (printing)	496 W
Power consumption (copying)	521 W
Power consumption (ready)	70 W
Power consumption (sleep)	0.6 W
Power consumption (off)	0.2 W
Energy Star Typical Electricity Consumption (TEC)	1.45 kWh/week
AC input voltage The voltage of the AC electricity that is inputted into the product.	220 - 240 V
AC input frequency	50/60 Hz

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Operational conditions
Operating relative humidity (H-H)	15 - 80%
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 40 °C
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	10 - 32.5 °C
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3500 m
Non-operating altitude	0.6 - 15000 m

Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Certification	TÜV/GS, CE

Sustainability
Sustainability certificates	Blue Angel, REACH, RoHS, EPEAT Silver, ENERGY STAR

Weight & dimensions
Width The measurement or extent of something from side to side.	475 mm
Depth The distance from the front to the back of something.	558 mm
Height The measurement of the product from head to foot or from base to top.	616 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	35.4 kg

Packaging data
Package width The distance from one side of the packaging to the other.	726 mm
Package depth The distance from the front to the back of the packaging.	623 mm
Package height The distance from the top to the bottom of the packaging.	828 mm
Package weight Weight of the packaged product.	48 kg

Packaging content
Cartridge(s) included
Included cartridge capacity (black)	3500 pages
Included cartridge capacity (CMY)	2500 pages
Imaging unit included
Cables included	AC
Drivers included
Manual
Power cord included
Quick installation guide
