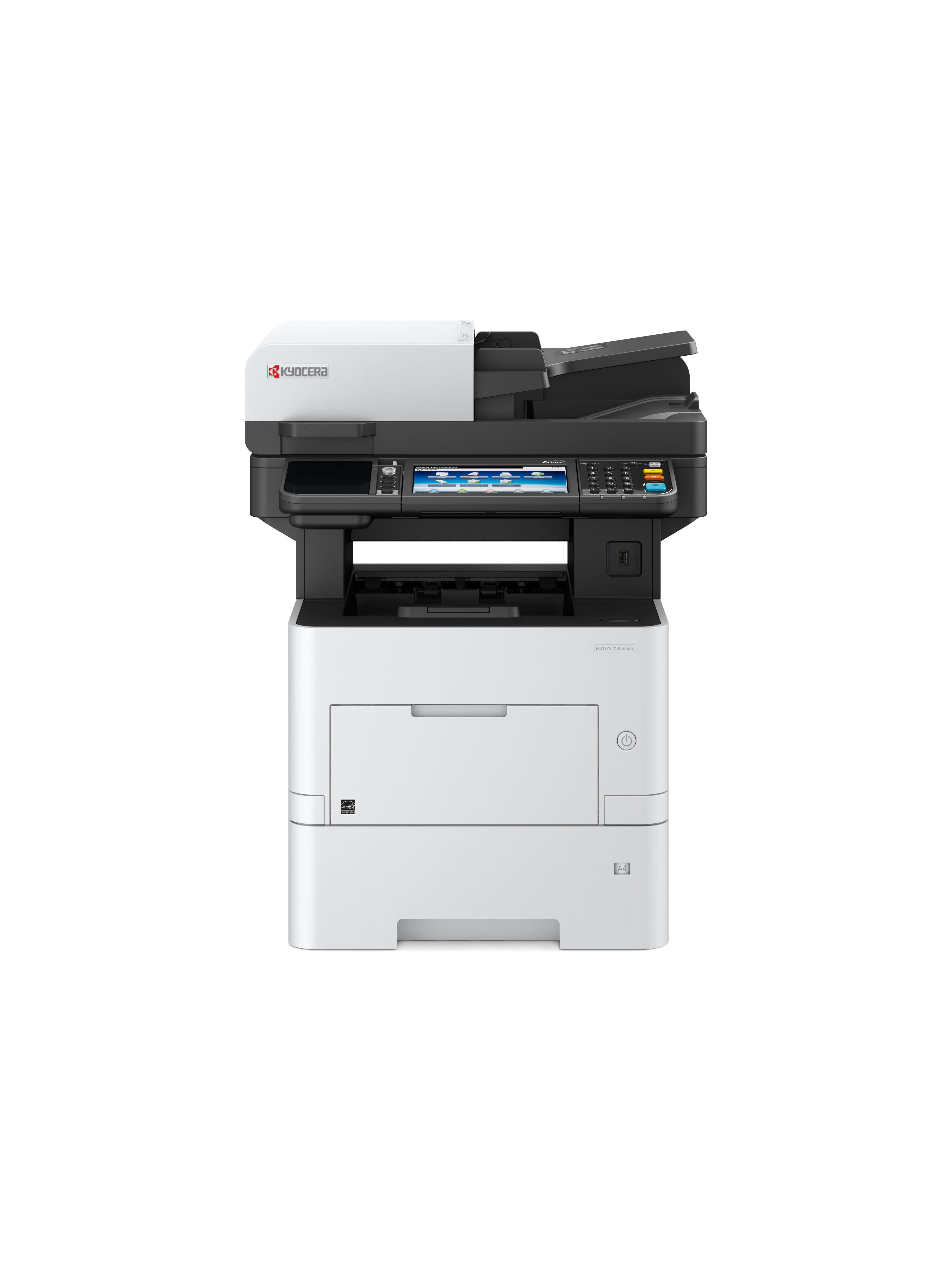

Double-sided print, copy, scan and fax - Cuts running costs down to almost nothing - Quick scanning with the Single Pass Duplex scanning feeder - 7-inch full-colour touch panel provides ease of use - HyPAS solution platform enables powerful customisations.
Specifications
Technical Information
Multifunction Devices
Copier/Fax/Printer/Scanner
Recommended Use
Plain Paper Print
Print Color Capability
Monochrome
Maximum Mono Print Speed (ppm)
55
Maximum Print Resolution
1200 x 1200 dpi
Duplex Printing
Automatic
Interfaces/Ports
USB
Yes
Network & Communication
Ethernet Technology
Gigabit Ethernet
Display & Graphics
Screen Size
17.8 cm (7")
Touchscreen
Yes
Scanner
Scanner Type
Flatbed
Scan Color
Colour
Optical Resolution
600 dpi
Copier
Copier Type
Flatbed
Copy Color
Monochrome
Fax
Fax Color
Monochrome
Media Types & Handling
Media Type
Photo Paper
ID Card
Plain Paper
Media Size
Folio - 210.06 mm x 330.20 mm
Legal - 215.90 mm x 355.60 mm
Photo - 101.60 mm x 152.40 mm
Letter - 215.90 mm x 279.40 mm
A6 - 104.14 mm x 147.32 mm
Universal
A5 - 147.32 mm x 210.82 mm
B6 - 124.46 mm x 175.26 mm
B5 - 175.26 mm x 248.92 mm
A4 - 210.82 mm x 297.18 mm
70 mm x 148 mm
Media Handling
1 x Multipurpose Tray 100 Sheet
1 x Cassette 500 Sheet
1 x Output Bin 500 Sheet
1 x Automatic Document Feeder 100 Sheet
Standard Input Media Capacity
600 sheets
Power Description
Power Source
AC Supply
Input Voltage
230 V AC
Physical Characteristics
Form Factor
Desktop
Height
590 mm
Width
480 mm
Depth
495 mm
Weight (Approximate)
24.10 kg
Miscellaneous
Energy Star
Yes
| Printing | |
| Duplex printing mode | Auto |
| Print technology Indicates the method used to print by this product. | Laser |
| Printing Producing a paper copy of information stored on a computer. | Mono printing |
| Duplex printing Feature of computer printers and multifunction printers (MFPs) that allows the printing of a sheet of paper on both sides (automatically or manually) |
 |
| Maximum resolution Maximum printing resolution. | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) The print speed of a printer for black & white A4 pages, normal quality. The exact speed varies depending on the system configuration, software program, and document complexity. | 55 ppm |
| Duplex print speed (black, normal quality, A4/US Letter) | 39.5 ppm |
| Warm-up time Time needed before printing after power switched on. | 25 s |
| Time to first page (black, normal) | 4.9 s |
| N-in-1 print function |
|
| Tray priority settings function |
|
| N-up printing | 2, 4 |
| Barcode printing |
|
| Watermark printing |
|
| Economical printing Whether or not the product is equipped with features that allow economical printing. |
|
| Secure printing |
|
| Poster printing function |
|
| Borderless printing Indicates whether this product is capable of printing borderless photos. |
 |
| Copying | |
| Duplex copying |
|
| Duplex copying mode | Auto |
| Copying Description of copying function (colour or monochrome). | Mono copying |
| Maximum copy resolution The greatest amount of detail that can be produced by a copy of a document. | 600 x 600 DPI |
| Time to first copy (black, normal) | 6 s |
| Maximum number of copies | 999 copies |
| Copier resize | 25 - 400% |
| N-in-1 copy function |
|
| N-in-1 copy function (N=) | 2, 4 |
| Copy programming function |
|
| ID-card copy function |
|
| Scanning | |
| Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides. |
|
| Duplex scanning mode | Auto |
| Scanning To convert a document or picture into digital form for storage or processing on a computer, by scanning it using a scanner. | Colour scanning |
| Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi. | 600 x 600 DPI |
| Scanner type Indicates the type of scanner this product is. | Flatbed & ADF scanner |
| Scan technology Indicates the technology used to scan by this product | CIS |
| Scan to | E-mail, FTP, SMB, TWAIN, USB, WIA |
| Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg). | JPEG, TIFF |
| Document formats supported The type of document formats that can be read/produced with this device e.g. .docx, .pdf. | PDF, XPS |
| Greyscale levels | 256 |
| Scan drivers | TWAIN, WIA |
| Fax | |
| Duplex faxing |
|
| Faxing To send an exact copy of a document made by electronic scanning and transmitted as data by telecommunications links. | Mono faxing |
| Fax resolution (black) | 400 x 400 DPI |
| Fax transmission speed | 3 sec/page |
| Modem speed The speed at which data is transferred by a modem. | 33.6 Kbit/s |
| Fax memory | 256 pages |
| Speed dialling |
|
| Fax coding methods | JBIG, MH, MMR, MR |
| Features | |
| Recommended duty cycle | 5000 - 15000 pages per month |
| Maximum duty cycle The maximum number of prints/copies made by a printer/copier in a fixed period. | 27500 pages per month |
| Duplex functions The product has the ability to print, scan etc. on both sides of a sheet of paper. | Copy, Fax, Print, Scan |
| Number of print cartridges The amount of print cartridges. A print cartridge is a container holding a quantity of ink which is inserted into a inkjet printer mechanism. | 1 |
| Printing colours The colours that can be produced by the printer. | Black |
| Page description languages | Epson LQ, IBM ProPrinter XL24E, OpenXPS, PCL 6, PCL XL, TIFF, XPS |
| Printer fonts | Barcode, Bitmap, Windows |
| Number of printer fonts | 93 |
| All-In-One-multitasking |
|
| Replacement cartridges | TK-3190 |
| Input & output capacity | |
| Total number of input trays | 1 |
| Total input capacity | 500 sheets |
| Total output capacity | 500 sheets |
| Paper tray 1 input capacity | 500 sheets |
| Multi-Purpose tray |
|
| Multi-Purpose tray input capacity | 100 sheets |
| Paper input type | Cassette, Paper tray |
| Auto document feeder (ADF) |
|
| Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets | 100 sheets |
| Maximum input capacity | 2600 sheets |
| Maximum output capacity Maximum number of sheets this product can hold in all available standard and optional output trays. | 500 sheets |
| Paper handling | |
| Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series. | A4 |
| Maximum print size The maximum size that an image can be printed with a good resolution. | 216 x 356 mm |
| Paper tray media types | Plain paper |
| Multi-purpose tray media types | Legal |
| ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents. | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| Non-ISO print media sizes | Folio, Legal, Letter |
| Custom media width | 70 - 216 mm |
| Custom media length | 148 - 356 mm |
| Paper tray media weight | 60 - 120 g/m² |
| Multi-Purpose Tray media weight | 60 - 220 g/m² |
| Auto Document Feeder (ADF) media weight | 50 - 120 g/m² |
| Duplex media weight | 60 - 120 g/m² |
| Ports & interfaces | |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | Ethernet, USB 2.0 |
| Direct printing With direct printing it is possible to print your photographs or other documents directly to a printer from a compatible device, without the use of a computer. |
|
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 3 |
| Optional connectivity | Ethernet, Wireless LAN |
| Network | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Near Field Communication (NFC) |
|
| Mobile printing technologies Apps etc. which allow users to send a print job from a smartphone or tablet to a printer via a wireless network. | Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service |
| Performance | |
| Maximum internal memory The maximum amount of memory inside a product, usually measured in bytes e.g megabytes (MB) or gigabytes (GB). | 3000 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1000 MB |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | ARM Cortex-A9 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 1200 MHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 2 |
| Sound pressure level (printing) | 56 dB |
| Sound pressure level (copying) | 56 dB |
| Sound pressure level (quiet mode) | 51.5 dB |
| Sound power level (standby) | 30 dB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | Business |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 17.8 cm (7") |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
|
| Control type The way in which the device is controlled. | Touch |
| Colour display |
|
| Power | |
| Power consumption (printing) | 711 W |
| Power consumption (copying) | 731 W |
| Power consumption (ready) | 54 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 30 W |
| Power consumption (sleep) | 0.5 W |
| Power consumption (off) | 0.5 W |
| Energy Star Typical Electricity Consumption (TEC) | 2.91 kWh/week |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Operational conditions | |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 40 °C |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 32.5 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3500 m |
| Non-operating altitude | 0.6 - 15000 m |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
|
| Certification | TÜV/GS, CE, ISO 9001, ISO 14001. |
| Sustainability | |
| Sustainability certificates | Blue Angel, ENERGY STAR, EPEAT Silver, REACH, RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 480 mm |
| Depth The distance from the front to the back of something. | 495 mm |
| Height The measurement of the product from head to foot or from base to top. | 590 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 24.1 kg |
| Packaging content | |
| Cartridge(s) included |
|
| Cables included | AC |
| Other features | |
| Energy saving mode Device has energy saving operating mode. |
|
| SKU | 504806 |
| MPN | 1102TB3AS0 |
| Brand | Kyocera |
| Product Condition | Brand New/Unused |
| Printer Type | Multi-Function Printer |
| Print Scan Features | Print, Scan, Copy, Fax |
| Scanner Type | None |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
