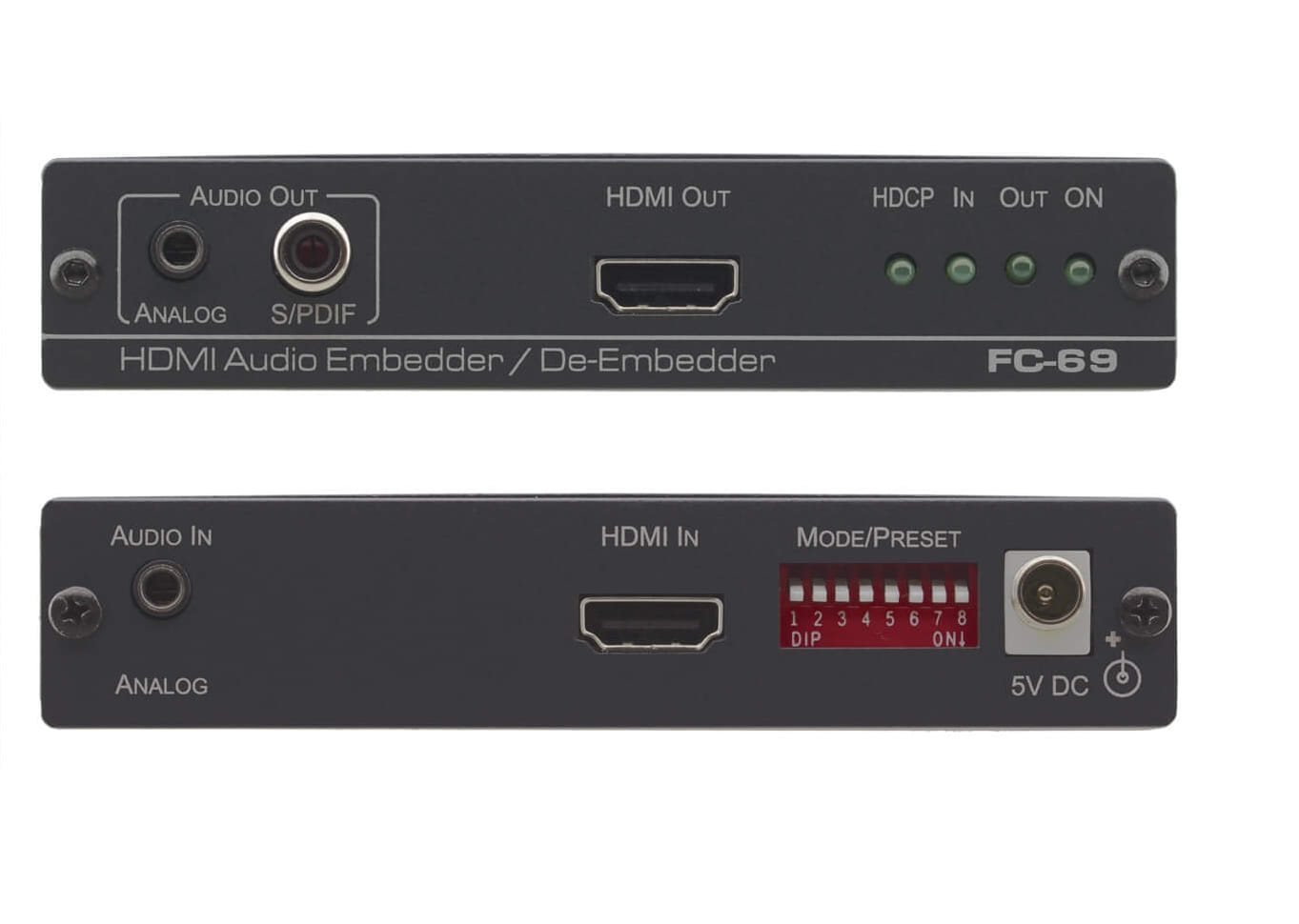

Kramer Electronics FC 69, Black, Aluminium, HDMI, HDCP, CE, RoHs, WEEE, 8.91 Gbit/s, HDMI, 5 V
The FC '69 is a high 'performance 4K@60Hz (4:2:0) UHD, 4Kx2K HDMI audio embedder and de 'embedder. The unit can embed analog audio to the HDMI output or de 'embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.
Max. Resolution " 4K@60Hz (4:2:0) UHD, 4Kx2K.
Maximum Data Rate " 8.91Gbps (2.97Gbps per data channel).
HDTV Compatible.
HDCP Compliant.
HDMI Support " ARC and HDMI uncompressed audio channels, deep color, CEC.
Audio Embedding " Even without an HDMI source.
Audio de "Embedding " To unbalanced analog and S/PDIF, selectable from input or ARC.
Kramer Equalization & re "Klocking Technology " Rebuilds the digital signal to travel longer distances.
Sleep Mode " 5V on the output, following the input, allows the display to turn off when no video is being sent.
Preconfigured Control Options " DIP "switches control locking/modifying EDID, HDCP, embedding/de "embedding and sleep mode functionality.
Max. Resolution " 4K@60Hz (4:2:0) UHD, 4Kx2K.
Maximum Data Rate " 8.91Gbps (2.97Gbps per data channel).
HDTV Compatible.
HDCP Compliant.
HDMI Support " ARC and HDMI uncompressed audio channels, deep color, CEC.
Audio Embedding " Even without an HDMI source.
Audio de "Embedding " To unbalanced analog and S/PDIF, selectable from input or ARC.
Kramer Equalization & re "Klocking Technology " Rebuilds the digital signal to travel longer distances.
Sleep Mode " 5V on the output, following the input, allows the display to turn off when no video is being sent.
Preconfigured Control Options " DIP "switches control locking/modifying EDID, HDCP, embedding/de "embedding and sleep mode functionality.
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Aluminium |
| Certification | HDMI, HDCP, CE, RoHs, WEEE |
| Video | |
| Bandwidth | 8.91 Gbit/s |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | HDMI |
| Power | |
| External power adapter |
|
| Operating voltage Defines the range of operating voltages available | 5 V |
| Operating current | 0.5 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 71.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 24.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 200 g |
| Packaging data | |
| AC adapter included |
|
| Quantity The number of products there are. | 1 |
| Package width The distance from one side of the packaging to the other. | 157 mm |
| Package depth The distance from the front to the back of the packaging. | 120 mm |
| Package height The distance from the top to the bottom of the packaging. | 87 mm |
| Package weight Weight of the packaged product. | 500 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 712769 |
| MPN | FC-69 |
| Brand | Kramer |
| Product Condition | Brand New/Unused |
| Product Use | General |
