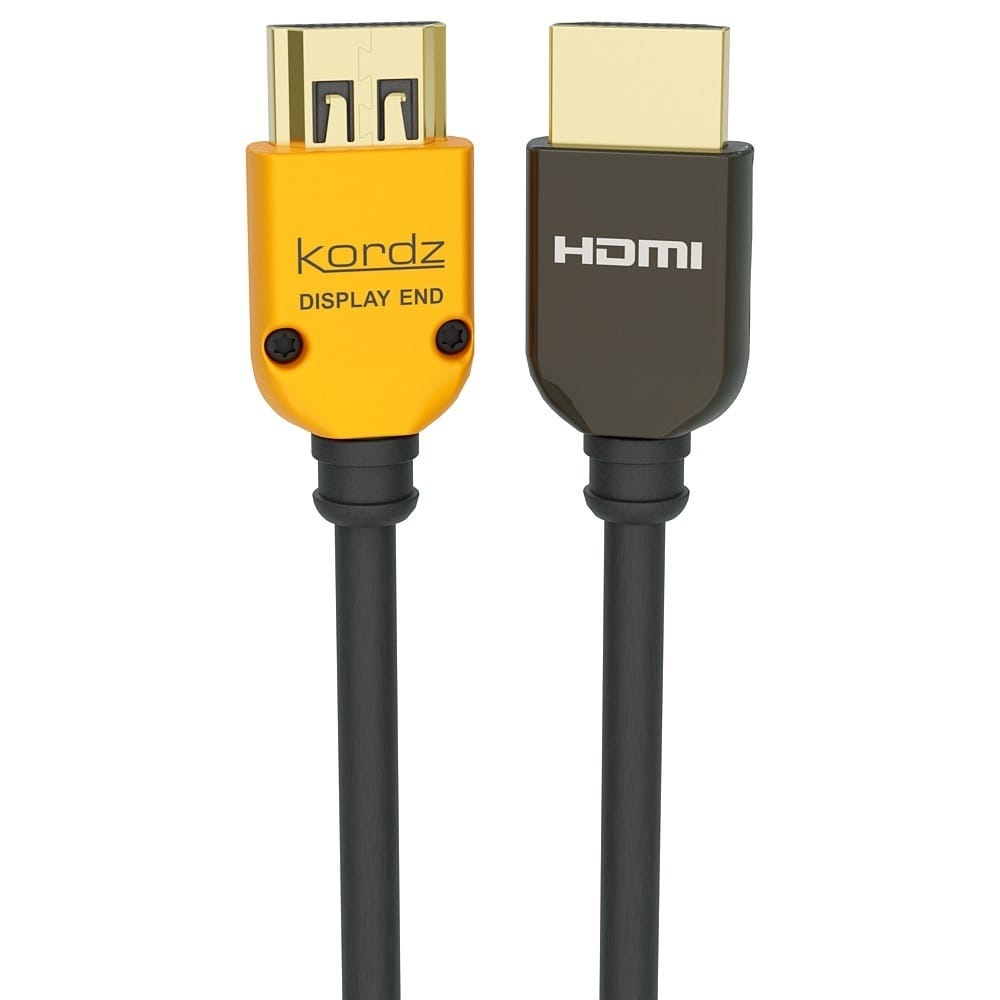

Active Optical Cable (AOC) 7.5m – 20m, 4K/UHD 18Gbps certified by DPL Labs; 18mm wide connector engineered to fit through a 1”/25mm conduit; LSZH fire rated
Features
Cable length
How long the cable is.
15 m
Connector 1
This is the first connector in the device.
HDMI Type A (Standard)
Connector 2
This is the second connector in the device.
HDMI Type A (Standard)
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Product colour
The colour e.g. red, blue, green, black, white.
Black, Orange
HDMI version
2.0
3D
The device can be used with 3D technology.
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
Supported video modes
The video modes that can be displayed by the device.
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Dolby technologies
DTS-HD
Audio Return Channel (ARC)
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
HDCP version
2.2
RGB support
4:4:4
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
18 Gbit/s
High Dynamic Range (HDR) supported
Supported digital audio channels (uncompressed)
2.0, 7.1
Bandwidth
Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency.
340 MHz
Maximum refresh rate
60 Hz
AWG wire size
32
Connector contacts plating
What the connector contacts are covered with (layer on top).
Gold
Connector material
Zinc alloy
Cable material
The material e.g. copper, steel from which the cable is made.
Tinned copper
Cable type
Type of cable e.g. electicity cable, optical cable.
Round cable
Tensile strength
9.8 N
Cable jacket material
Low smoke zero halogen (LSZH)
Magnetically shielded
Shield material
Aluminium
Bending radius (min)
2 cm
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Colour sampling
4:4:4, 4:2:0, 4:2:2
Quantity per pack
1 pc(s)
Weight & dimensions
Cable diameter
The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
