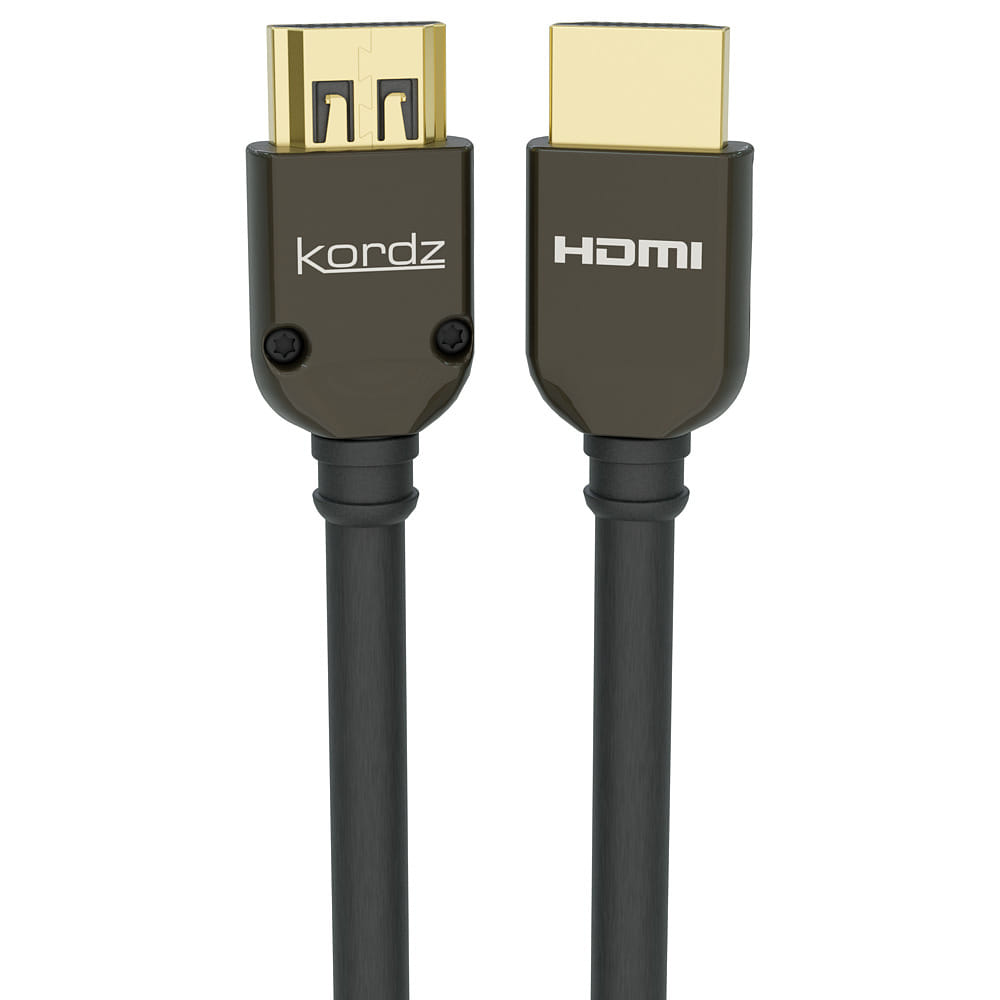

Kordz K36036 0500 CH, 5 m, HDMI Type A (Standard), HDMI Type A (Standard), 3D, 17.82 Gbit/s, Black
Kordz PRS3 Series HDMI Cable is purpose engineered to meet unrivalled tolerances while delivering 18Gbps DPL certified 4K resolution in high performance installations. Each cable features magnesium die cast anti vibration head shells and gold plated 3kg retention connectors for optimised permanent installations that are faster and trusted to last with ongoing product performance.
| Features | |
| Cable length How long the cable is. | 5 m |
| Connector 1 This is the first connector in the device. | HDMI Type A (Standard) |
| Connector 2 This is the second connector in the device. | HDMI Type A (Standard) |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| HDMI version | 2.0 |
| 3D The device can be used with 3D technology. |
 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160, 4096 x 2160 |
| Supported video modes The video modes that can be displayed by the device. | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Dolby technologies | DTS-HD |
| Audio Return Channel (ARC) |
|
| HDMI Ethernet channel |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 2.2 |
| RGB support | 4:4:4 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 17.82 Gbit/s |
| High Dynamic Range (HDR) supported |
|
| Supported digital audio channels (uncompressed) | 2.0, 7.1 |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 340 MHz |
| AWG wire size | 28 |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Connector material | Zinc alloy |
| Cable material The material e.g. copper, steel from which the cable is made. | Oxygen-Free Copper (OFC) |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Tensile strength | 29.7 N |
| Cable jacket material | Nylon/Polyvinyl Chloride (PVC) |
| Magnetically shielded |
|
| Shield material | Aluminium |
| Bending radius (min) | 2.8 cm |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Colour sampling | 4:4:4, 4:2:0, 4:2:2 |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 6.5 mm |
| Connector 1 dimensions (WxDxH) | 18 x 39.4 x 10.7 mm |
| Connector 2 dimensions (WxDxH) | 18 x 39.4 x 10.7 mm |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | RoHS |
| SKU | 658077 |
| MPN | K36036-0500-CH |
| Brand | Kordz |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.kordz.com/ |
