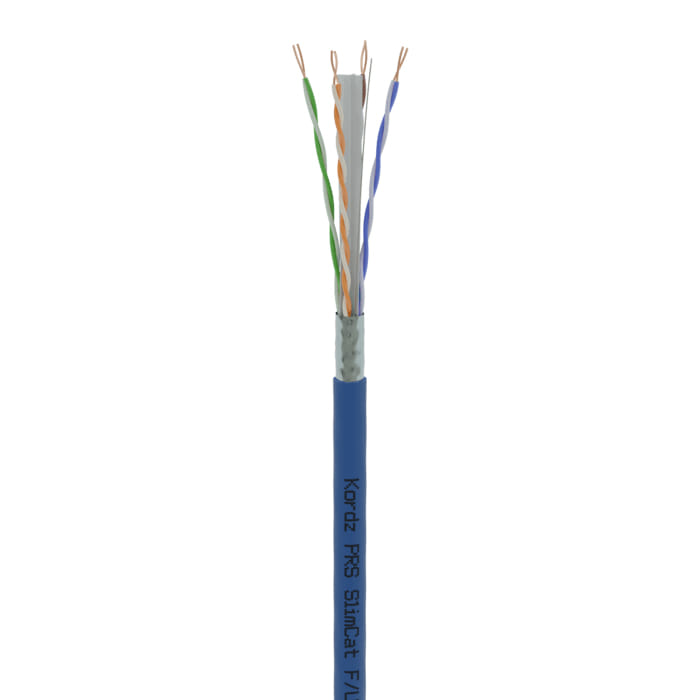

Kordz K34202-305M-BL, 305 m, Cat6a, F/UTP (FTP), Blue
Kordz PRS SlimCat™ Cat6A Network Cable is the industry-leading highly flexible shielded network cable designed for high performance and high-density installations that delivers all the power in half the size and goes where other Cat6A cables can't. The slim 5mm diameter Cat6A F/UTP cable reduces bulk and makes installation easier whilst delivering IEEE802.3bt PoE++ at 100W and 10Gbps network connectivity up to 50 metres. Complete the Kordz PRS SlimCat™ system by pairing the cable with Kordz PRS SlimCat™ RJ45 Shielded Crimp Connectors and Cat6A Keystone RJ45 Sockets to ensure reliable, compact connectivity.
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Blue |
| Cable length How long the cable is. | 305 m |
| Cable standard The category of the cable, which is determined by performance characteristics and test requirements. | Cat6a |
| Cable shielding The protective layer for the cable, typically made of plastic. | F/UTP (FTP) |
| Connector 1 This is the first connector in the device. |
 |
| Connector 2 This is the second connector in the device. |
|
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. |
|
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. |
|
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor type | Solid |
| Conductor material | Oxygen-Free Copper (OFC) |
| Cable type Type of cable e.g. electicity cable, optical cable. | Cable on reel |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3bt |
| AWG wire size | 23 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Total Power over Ethernet (PoE) budget | 100 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Outer diameter | 5 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Input impedance | 23.6 Ω |
| SKU | 811748 |
| MPN | K34202-305M-BL |
| Brand | Kordz |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.kordz.com/ |
