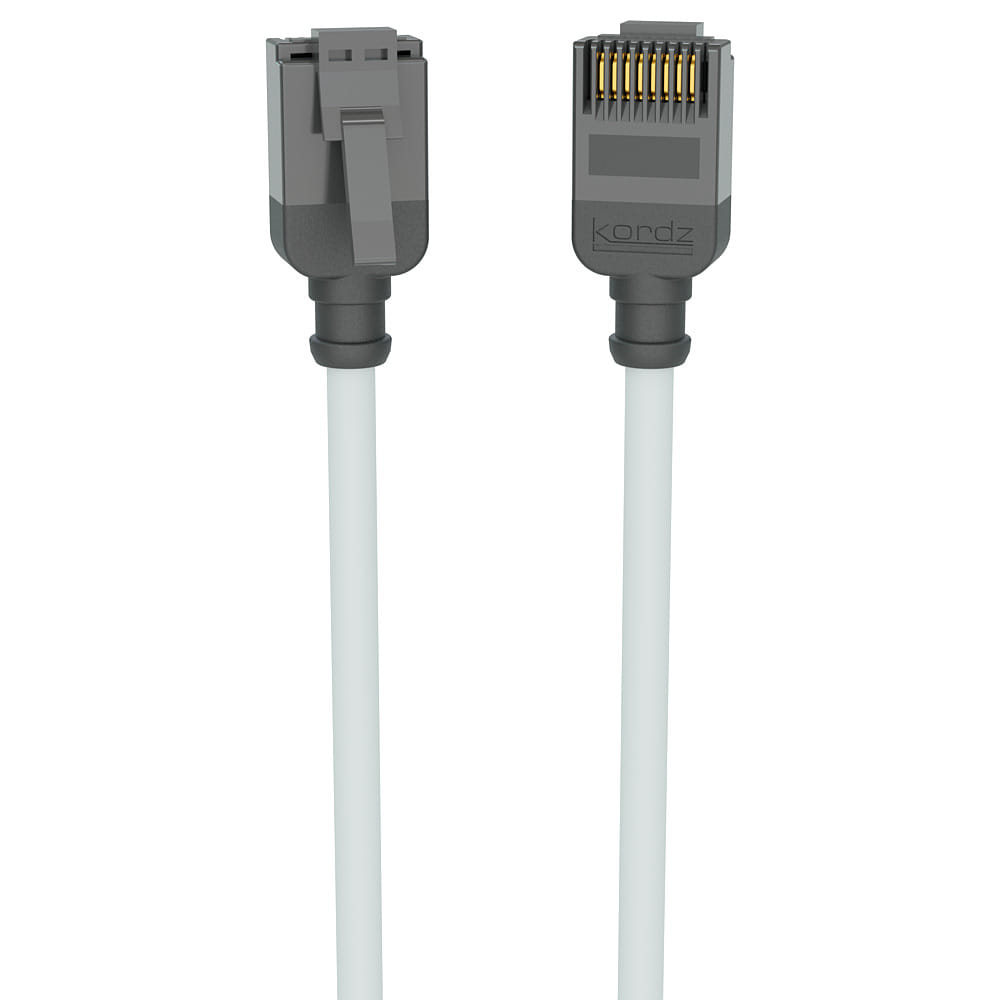

Kordz Professional Slim Profile CAT6 Network Patch Cord white - 0.50 meter: Slim 3.9mm cable with virtually unbreakable latch; Supports data rate up to 1 Gbps, certified to 250 Mhz bandwidth, PoE++ supported; Backed by Kordz lifetime performance warranty
The Kordz PRO Series CAT6 U/UTP Network Patch Cord is engineered with a flexible, slim profile featuring stranded 28AWG copper for fast Gigabit Ethernet in professional AV installations. Featuring our custom RJ45 compact connector (Patent Pending) with a robust locking latch and a 2000 bend cycle guarantee. Each cable is individually tested to exceed all Category 6 ANSI/TIA 568.2-D standards for all frequencies from 1 to 250 MHz and is supported by the Kordz Lifetime Warranty.
Features:
- Slim-Profile 3.9mm diameter flexible cable making installations easier.
- Patented low-profile connector design reduces mounting depth.
- Kordz’ product performance guarantee and warranty for your lifetime.
- Robust nylon RJ45 latch is tested to 2000+ 180º degrees bend cycles before breaking.
- Exceeds all Category 6 ANSI/TIA 568.2-D standards for all frequencies from 1 to 250 MHz.
- UL (CM) fire rating.
- 568B wire connection configuration.
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Cable length How long the cable is. | 0.5 m |
| Cable standard The category of the cable, which is determined by performance characteristics and test requirements. | Cat6 |
| Cable shielding The protective layer for the cable, typically made of plastic. | U/UTP (UTP) |
| Connector 1 This is the first connector in the device. | RJ-45 |
| Connector 2 This is the second connector in the device. | RJ-45 |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shape | Round |
| Conductor type | Stranded |
| Conductor material | Oxygen-Free Copper (OFC) |
| Cabling technology Type of cable technology performance. | 10GBase-T |
| Ethernet interface type | Gigabit Ethernet |
| AWG wire size | 28 |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 1000 Mbit/s |
| Frequency | 250 MHz |
| Bend radius (min) | 1.17 cm |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Total Power over Ethernet (PoE) budget | 80 W |
| Fire-resistant |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Certification | UL (CM); Category 6 ANSI/TIA 568.2-D |
| Weight & dimensions | |
| Outer diameter | 3.9 mm |
| Connector 1 dimensions (WxDxH) | 11.7 x 18.3 x 6.6 mm |
| Connector 2 dimensions (WxDxH) | 11.7 x 18.3 x 6.6 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 657265 |
| MPN | K23045-0050-WH |
| Brand | Kordz |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Contact | https://www.kordz.com/ |
