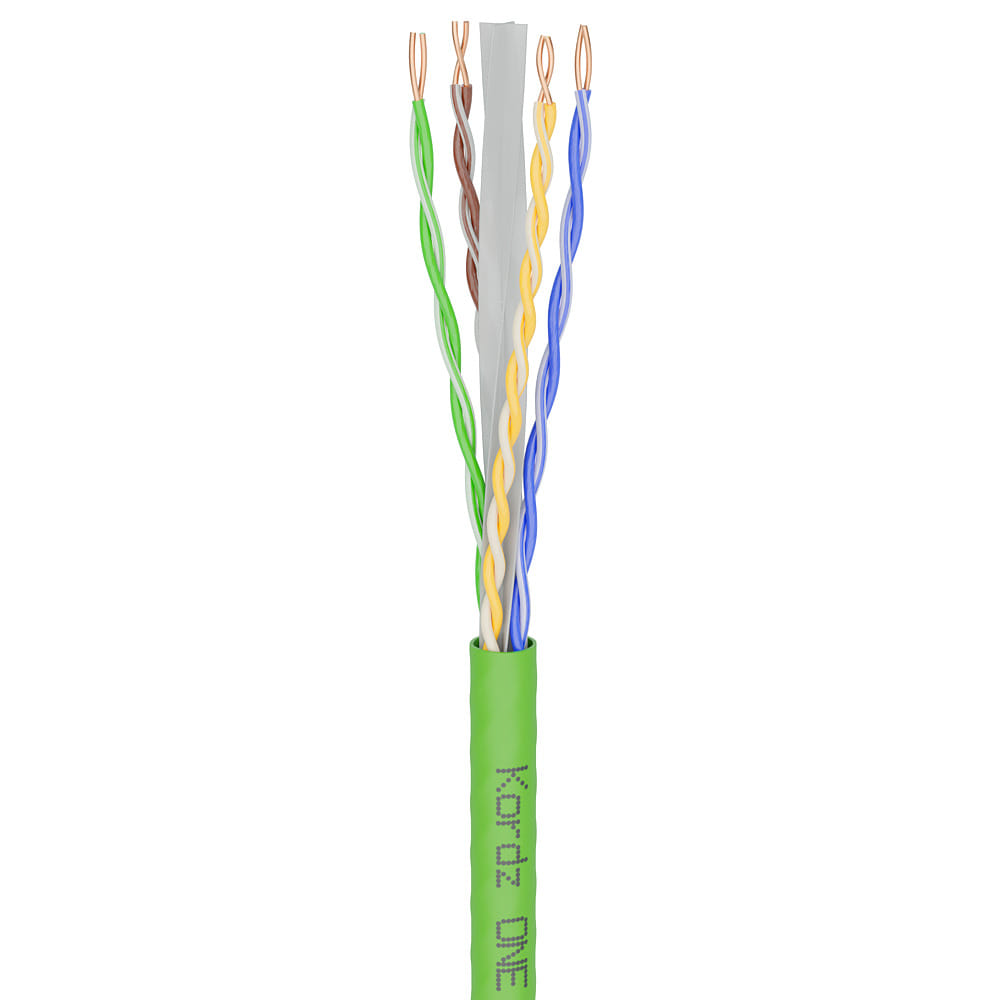

Kordz Professional CAT 6 U/UTP Bulk Cable green - 305m Pro Box: Four Twisted Pairs 24 AWG OFC Conductors; Exceeds 4K bandwidth requirements; Certified to exceed 550Mhz, HDBaseT recommended; PoE++ supported; Supplied in durable Rapid-EZ-Reel packaging
Kordz ONE Series CAT6 U/UTP cable is engineered to exceed 4K video installation bandwidth requirements. The Rapid-EZ reel is metre marked and flows from the supplied professional pull box without twisting or curling, minimising snags for optimal installation uptime. ONE series CAT6 cable is tested and approved to exceed 550Mhz, is HDBaseT™ recommended and exceeds ANSI/TIA 568C-2.1 Standard. All cables are supported by the Kordz Lifetime Warranty.
Features:
- U/UTP Ethernet CAT6.
- Four Twisted Pairs 24 AWG Oxygen Free Solid Copper Conductors.
- Cross Separator Reduces Crosstalk Between Pairs.
- Suitable for IDC Terminations.
- Supplied in the Durable Rapid-EZ-Reel Packaging – 305m (1,000ft).
- Metre Marked for installation accuracy.
- Exceeds ANSI/TIA 568C-2.1 Standard.
- Available In LSZH – IEC60332-1 And UL 444 CM fire rated versions.
- CPR Declared Performance: ONE-CAT6: Dca-s2, d2, a1 (EN 50575:2014+A1:2016).
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| Cable length How long the cable is. | 305 m |
| Cable standard The category of the cable, which is determined by performance characteristics and test requirements. | Cat6 |
| Cable shielding The protective layer for the cable, typically made of plastic. | U/UTP (UTP) |
| Connector 1 This is the first connector in the device. |
 |
| Connector 2 This is the second connector in the device. |
|
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. |
|
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. |
|
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor type | Solid |
| Conductor material | Oxygen-Free Copper (OFC) |
| Cable type Type of cable e.g. electicity cable, optical cable. | Cable on reel |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3bt |
| AWG wire size | 24 |
| Frequency | 550 MHz |
| Bend radius (min) | 2.28 cm |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Fire-resistant |
|
| Certification | ETL VERIFIED TIA-568-C.2 (3081133CRT-009) LSZH CAT6 U/UTP 24AWG. IEC 60332-1 |
| Weight & dimensions | |
| Outer diameter | 5.7 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 330 mm |
| Package depth The distance from the front to the back of the packaging. | 265 mm |
| Package height The distance from the top to the bottom of the packaging. | 340 mm |
| Package weight Weight of the packaged product. | 13.8 kg |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | RoHS |
| SKU | 658532 |
| MPN | K13002-305M-GN |
| Brand | Kordz |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Contact | https://www.kordz.com/ |
