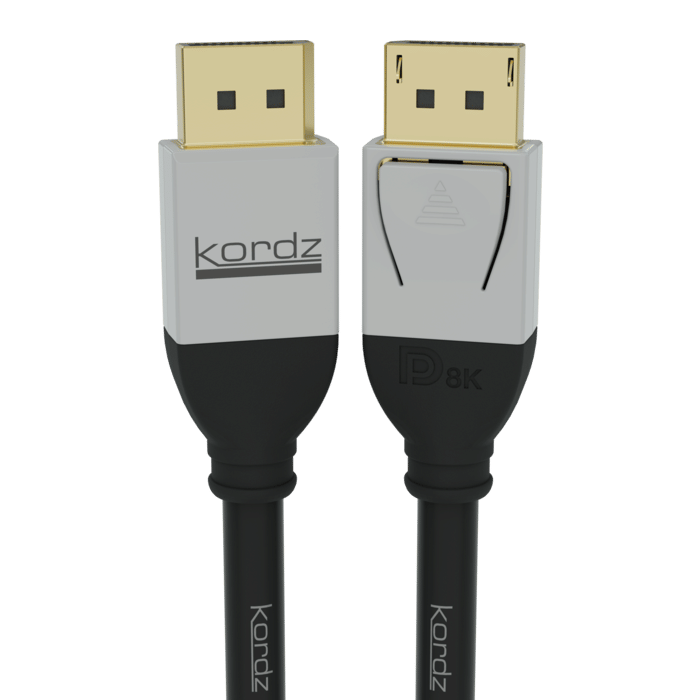

Kordz Professional 8K DisplayPort Cable - 3 meter: Support HBR3 with bandwidth up to 32.4Gbps; HDR & HDCP 2.2; Supports Expanded Audio Transport - up to 32 audio channels, includes all known audio formats; DisplayPort Certified.
Kordz PRO Series 8K DisplayPort™ Cable is engineered to enrich professional displays through a flexible, slim profile, solid copper pins and a fire rated jacket. Our 8K DisplayPort™ Cable offers installation success, longevity and backwards compatibility with high resolution displays up to 8K and High Bit Rate 3 (HBR3) mode with data rate up to 32.4Gbps. Each cable is backed by the Kordz Lifetime Performance Warranty.
Features:
- Engineered and constructed to ensure installation success and longevity.
- DisplayPort™ 1.4 8K offers backwards compatibility with earlier DisplayPort™ standards.
- Supports high resolution displays up to 8K 7680 x 4320@60Hz DSC1.2.
- Supports High Bit Rate 3 (HBR3) mode with data rate up to 32.4Gbps.
- Supports Display Stream Compression (DSC) 1.2.
- Forward Error Correction (FEC).
- Supports Expanded Audio Transport – up to 32 audio channels.
- 1536kHz audio sample rate, and inclusion of all standard audio formats.
- Each cable is backed by Kordz Lifetime Performance Warranty.
- DisplayPort™ Certified and compliant.
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160, 4096 x 2160, 5120 x 2160, 7680 x 4320 |
| Supported video modes The video modes that can be displayed by the device. | 2160p, 4320p |
| Maximum refresh rate | 120 Hz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| HDCP version | 2.2 |
| Display Stream Compression (DSC) |
|
| Display Stream Compression (DSC) version | 1.2 |
| 3D The device can be used with 3D technology. |
|
| Connector 1 lockable |
|
| Connector 2 lockable |
|
| Cable length How long the cable is. | 3 m |
| Connector 1 This is the first connector in the device. | DisplayPort |
| Connector 2 This is the second connector in the device. | DisplayPort |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Latching connectors |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Magnetically shielded |
|
| Cable shielding The protective layer for the cable, typically made of plastic. | Aluminum mylar foil |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 32.4 Gbit/s |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 32 channels |
| HBR3 support |
|
| Bend radius (min) | 3 cm |
| Colour sampling | 4:2:2, 4:4:4, 4:2:0 |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | RoHS |
| Packaging data | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 7.5 mm |
| SKU | 657930 |
| MPN | K25046-0300-CH |
| Brand | Kordz |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Contact | https://www.kordz.com/ |
