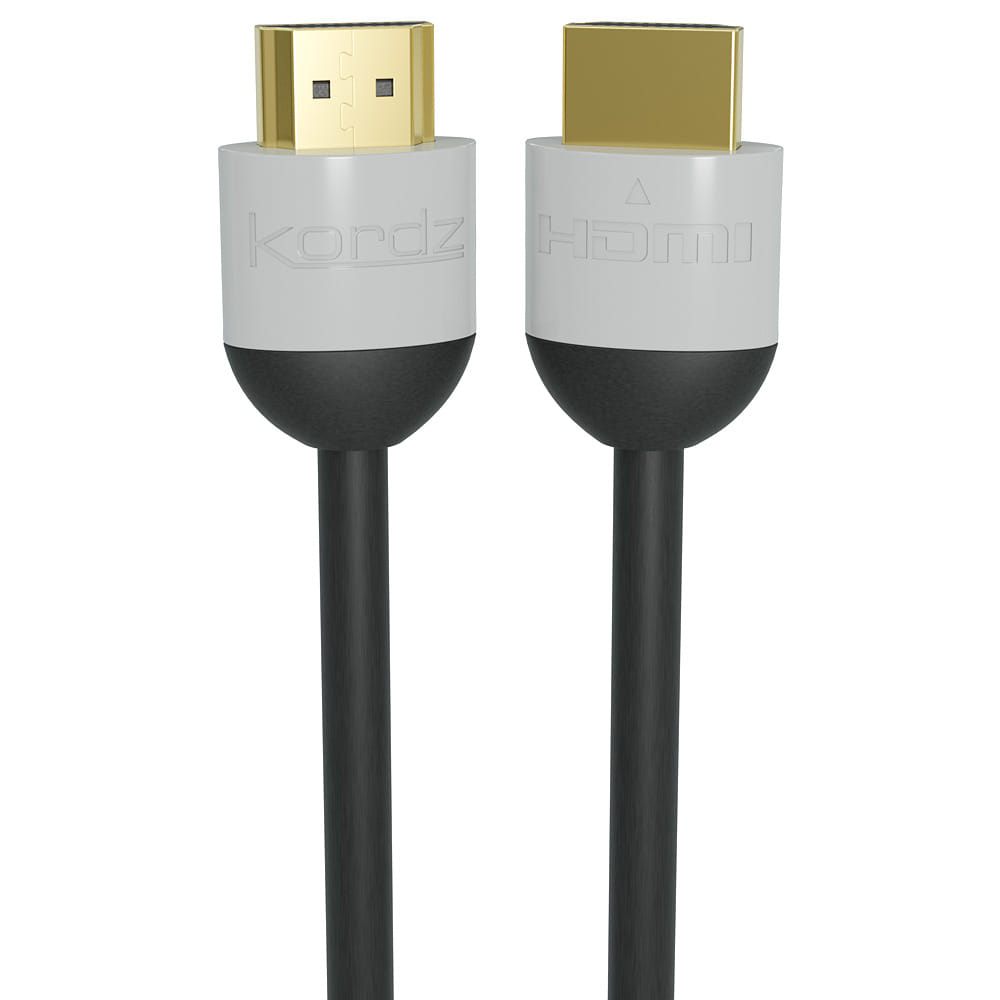

Kordz PRO Series Passive HDMI cables make professional installations easier with solid copper pins, 1kg retention connectors and a highly flexible fire rated jacket. The PRO Series HDMI is robust, flexible and delivers reliable 4K resolution and Ethernet to displays and engineered to the strict Kordz professional installation standard. Each cable is UL CMG fire rated in all lengths, supported by the Kordz Lifetime Warranty and certified by HDMI Licencing.
| Features | |
| Cable length How long the cable is. | 7.5 m |
| Connector 1 This is the first connector in the device. | HDMI Type A (Standard) |
| Connector 2 This is the second connector in the device. | HDMI Type A (Standard) |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| HDMI version | 2.0 |
| 3D The device can be used with 3D technology. |
 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Supported video modes The video modes that can be displayed by the device. | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Dolby technologies | DTS-HD |
| Audio Return Channel (ARC) |
|
| HDMI Ethernet channel |
|
| RGB support | 4:4:4 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 17.82 Gbit/s |
| Supported digital audio channels (uncompressed) | 2.0, 7.1 |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 340 MHz |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Copper |
| Cable material The material e.g. copper, steel from which the cable is made. | Oxygen-Free Copper (OFC) |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Tensile strength | 9.9 N |
| Cable jacket material | Nylon/Polyvinyl Chloride (PVC) |
| Magnetically shielded |
|
| Shield material | Aluminium |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Colour sampling | 4:4:4, 4:2:0, 4:2:2 |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 658231 |
| MPN | PRO-HD0750 |
| Brand | Kordz |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.kordz.com/ |
