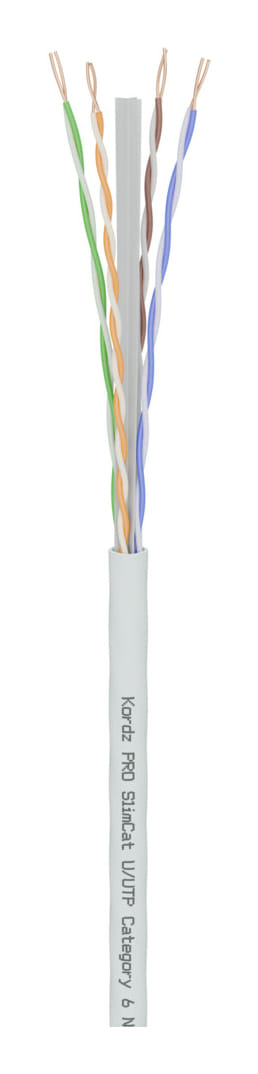

Kordz K23402-305M-WH, 305 m, Cat6, U/UTP (UTP), White
Kordz K23402-305M-WH. Cable length: 305 m, Cable standard: Cat6, Cable shielding: U/UTP (UTP), Product colour: White
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Cable length How long the cable is. | 305 m |
| Cable standard The category of the cable, which is determined by performance characteristics and test requirements. | Cat6 |
| Cable shielding The protective layer for the cable, typically made of plastic. | U/UTP (UTP) |
| Connector 1 This is the first connector in the device. |
 |
| Connector 2 This is the second connector in the device. |
|
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. |
|
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. |
|
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor type | Solid |
| Conductor material | Oxygen-Free Copper (OFC) |
| AWG wire size | 28 |
| Bend radius (min) | 1.6 cm |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Outer diameter | 4 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 330 mm |
| Package depth The distance from the front to the back of the packaging. | 265 mm |
| Package height The distance from the top to the bottom of the packaging. | 340 mm |
| SKU | 811744 |
| MPN | K23402-305M-WH |
| Brand | Kordz |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.kordz.com/ |
