Kordz PLX-HDB.3, 3840 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP

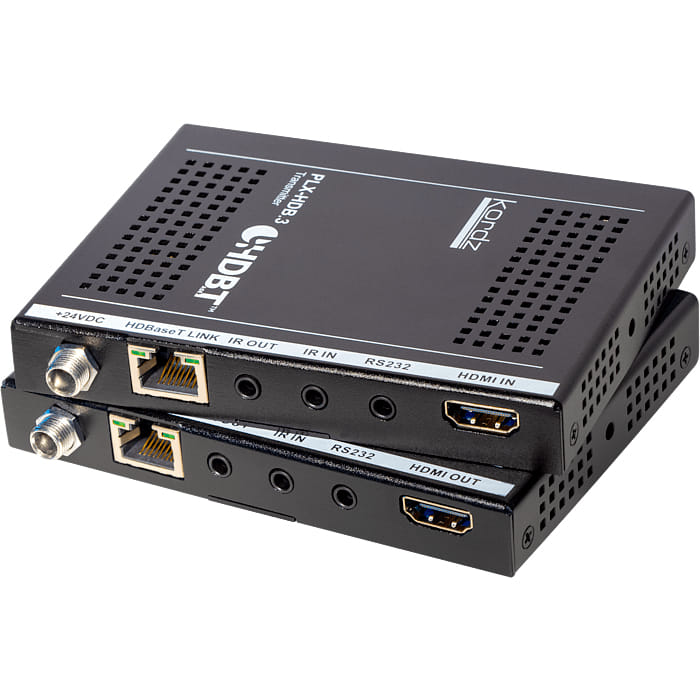

Our Kordz PLX-HDB.3 HDBaseT™ extender delivers 4K HDMI, IR, RS-232 and PoC over a single CAT6 cable supporting 1080p resolutions up to 70m and 4K 60Hz 4:4:4 up lengths of 40m.
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| HDCP version | 2.2 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| HDMI version | 1.4/2.0 |
| Power | |
| Power source type What the power source is. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 14 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 115 mm |
| Depth The distance from the front to the back of something. | 84 mm |
| Height The measurement of the product from head to foot or from base to top. | 16 mm |
| Receiver weight | 153 g |
| Transmitter weight | 150 g |
| SKU | 811754 |
| MPN | PLX-HDB.3 |
| Brand | Kordz |
| Product Condition | Brand New/Unused |
| Product Use | General |
