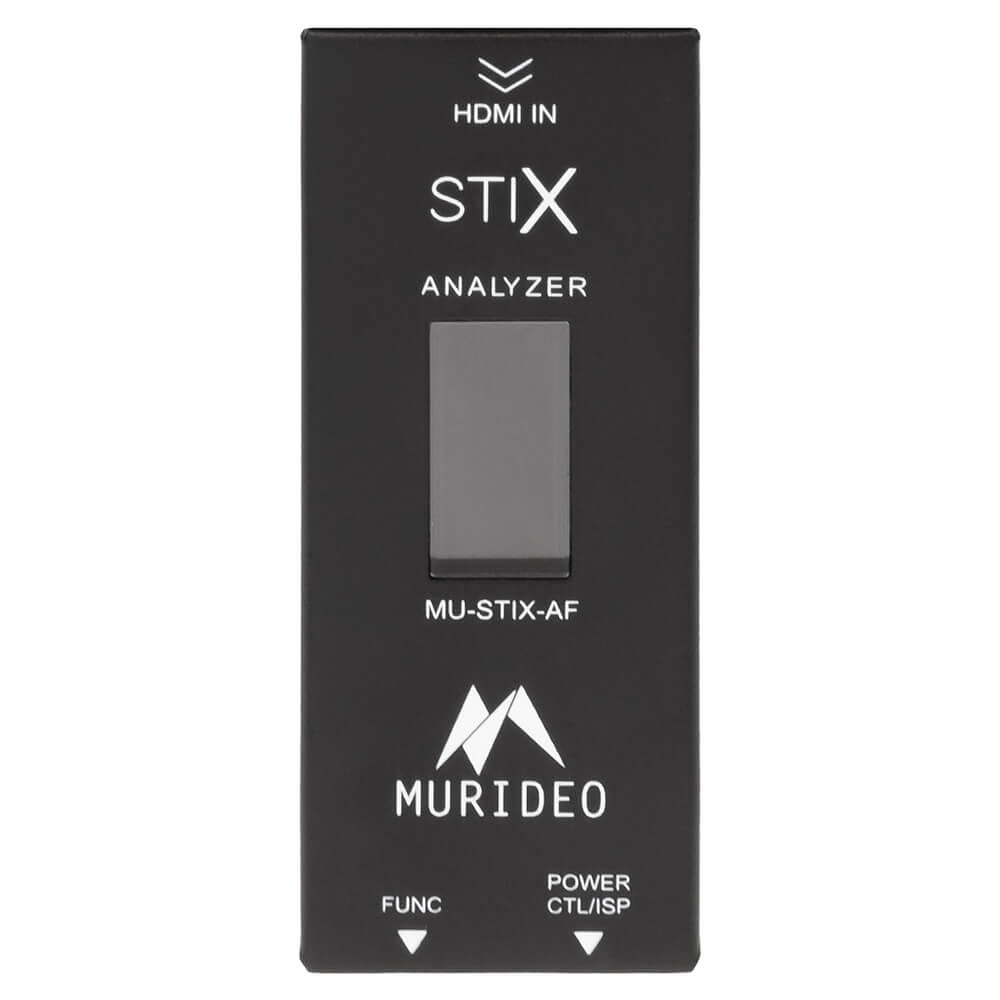

Kordz Murideo STIX HDMI Test Signal Analyzer - Female

The MU-STIX-AF is a small form factor 48Gbps HDMI analyser equipped with a female HDMI input port. Providing addition flexibility for testing HDMI distribution systems, and light-duty in-field pass/fail signal verification.

While the MU-STIX-A with its male HDMI connector negates the need for additional HDMI cables to test source and pass-through devices rapidly, the MU-STIX-AF with its female HDMI port facilitates testing in tight spaces via HDMI cable extension. Coupled with the MU-STIX-GF HDMI generator, end-to-end signal throughput and HDMI cable bandwidth/continuity verification are possible.

The onboard mini-OLED screen shows the source information parameters when connected to the HDMI output of a device. Displaying the source picture, resolution, bit rate, colour space, and HDCP version, plus live monitoring statistics.

STIX enables rapid signal throughput confirmation of cables and devices before site deployment to verify correct functionality, programming, and system performance parameters.

For stand-alone use, the MU-STIX-AF is a convenient, cost-effective multi-resolution format analyser for commercial or residential integrators when simple pass-fail transmission path and display capability verification are required.
