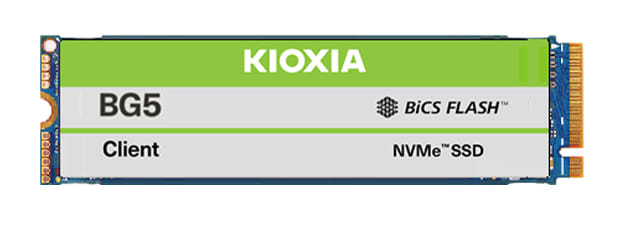

Kioxia BG5, 512 GB, M.2, 3500 MB/s, 64 Gbit/s
Client SSD NVMe SSD M.2
The KIOXIA BG5 Series is a line-up of compact form factor NVMe™ SSDs with capacities up to 1,024 GB, and leverages a PCIe 4.0, NVMe™ 1.4 specification compliant interface and KIOXIA 112-layer BiCS FLASH™ 3D TLC (3-bit-per-cell) flash memory. With higher bandwidth, improved flash management and Host Memory Buffer (HMB) technology, BG5 Series SSDs deliver best-in-class read performance for compact form factor SSDs of up to 3,500 MB/s (sequential read) and up to 500K IOPS (random read), with active power consumption of up to 4.3 W (Typ.)*.
KIOXIA BG5 Series SSDs are available in capacities of 256 GB, 512 GB and 1,024 GB in M.2 Type 2230 and Type 2280 module form factors, making them suitable for thin and light system designs, such as ultra-thin PCs, embedded devices and server boot in data centers. The KIOXIA BG5 Series offers a Self-Encrypting Drive (SED) model option, supporting TCG Opal Version 2.01.
The KIOXIA BG5 Series is a line-up of compact form factor NVMe™ SSDs with capacities up to 1,024 GB, and leverages a PCIe 4.0, NVMe™ 1.4 specification compliant interface and KIOXIA 112-layer BiCS FLASH™ 3D TLC (3-bit-per-cell) flash memory. With higher bandwidth, improved flash management and Host Memory Buffer (HMB) technology, BG5 Series SSDs deliver best-in-class read performance for compact form factor SSDs of up to 3,500 MB/s (sequential read) and up to 500K IOPS (random read), with active power consumption of up to 4.3 W (Typ.)*.
KIOXIA BG5 Series SSDs are available in capacities of 256 GB, 512 GB and 1,024 GB in M.2 Type 2230 and Type 2280 module form factors, making them suitable for thin and light system designs, such as ultra-thin PCs, embedded devices and server boot in data centers. The KIOXIA BG5 Series offers a Self-Encrypting Drive (SED) model option, supporting TCG Opal Version 2.01.
| Features | |
| NVMe version | 1.4 |
| SSD capacity The Solid State Drive's data storage capacity. | 512 GB |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 4.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | BiCS FLASH TLC |
| Component for What this product is used as a part of (component for). | Universal |
| Hardware encryption |
|
| M.2 SSD size | 2280 (22 x 80 mm) |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 64 Gbit/s |
| Read speed The speed at which a device can read data. | 3500 MB/s |
| Write speed The speed at which a device can write data. | 2700 MB/s |
| Random read (4KB) | 400000 IOPS |
| Random write (4KB) | 430000 IOPS |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1500000 h |
| Power | |
| Operating voltage Defines the range of operating voltages available | 3.3 V |
| Power consumption (average) | 4.1 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 22 mm |
| Depth The distance from the front to the back of something. | 80 mm |
| Height The measurement of the product from head to foot or from base to top. | 2.23 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 95 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 95 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating vibration Environmental requirements for vibration in operating mode | 20 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1500 G |
| SKU | 823532 |
| MPN | KBG5AZNV512G |
| Brand | Kioxia |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.jw.com.au/ |
