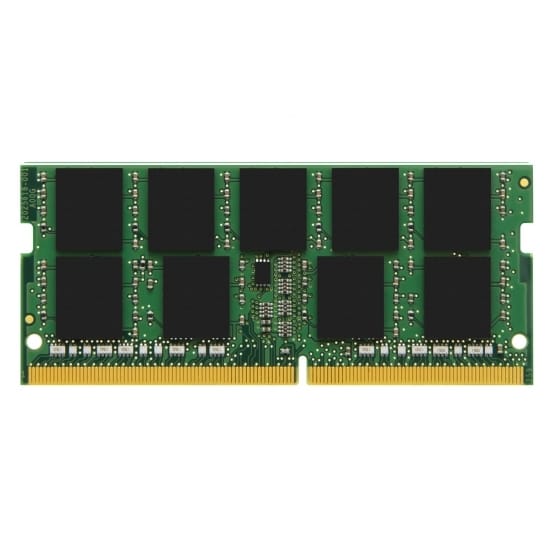

KVR24S17S6/4 is a 512M x 64-bit (4GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. This 260-pin SODIMM uses gold contact fingers.
Kingston KVR24S17S6/4 4GB DDR4 2400Mhz Non ECC Memory RAM SODIMM
| Features | |
| CAS latency Column Address Strobe (CAS) latency, or CL, is the delay time between the moment a memory controller tells the memory module to access a particular memory column on a RAM module, and the moment the data from the given array location is available on the module's output pins. In general, the lower the CAS latency, the better. | 17 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 4 GB |
| Memory layout (modules x size) How the overall memory of the product is put together, defined by the number of modules and the size. | 1 x 4 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 2400 MHz |
| Component for What this product is used as a part of (component for). | Notebook |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | 260-pin SO-DIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Memory voltage The voltage (V) of the memory in the device. | 1.2 V |
| Module configuration | 512M x 64 |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| Programming power voltage (VPP) | 2.5 V |
| Product colour The colour e.g. red, blue, green, black, white. | Black,Green |
| Lead plating | Gold |
| JEDEC standard |
 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 85 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -55 - 100 °C |
| SKU | 261569 |
| MPN | KVR24S17S6/4 |
| Brand | Kingston |
| Product Condition | Brand New/Unused |
| Memory Type | DDR4 |
| Memory Form Factor | SODIMM |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.kingston.com/ |
