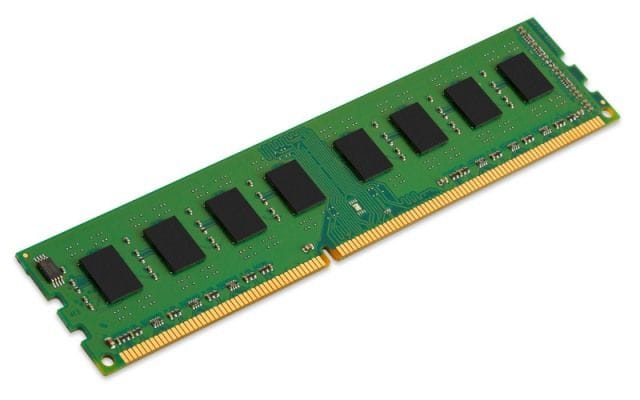

KVR16LN11/4 4GB 1Rx8 512M x 64-Bit PC3L-12800 CL11 240-Pin DIMM
DESCRIPTION This document describes ValueRAM's 512M x 64-bit (4GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 1Rx8, low voltage, memory module, based on eight 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This 240-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
• JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply
• VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB Height: 0.740” (18.75mm) or 1.180” (30.00mm), single sided component
SPECIFICATIONS
CL(IDD): 11 cycles
Row Cycle Time: (tRCmin) 48.125ns (min.)
Refresh to Active/Refresh: 260ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin): 35ns (min.)
Maximum Operating Power: (1.35V) = 2.160 W*
UL Rating: 94 V - 0
Operating Temperature: 0o C to 85o C
Storage Temperature: -55o C to +100o C
Features | |
CAS latency Column Address Strobe (CAS) latency, or CL, is the delay time between the moment a memory controller tells the memory module to access a particular memory column on a RAM module, and the moment the data from the given array location is available on the module's output pins. In general, the lower the CAS latency, the better. | 11 |
Internal memory A computer's memory which is directly accessible to the CPU. | 4 GB |
Memory layout (modules x size) How the overall memory of the product is put together, defined by the number of modules and the size. | 1 x 4 GB |
Internal memory type The type of internal memory such as RAM, GDDR5. | DDR3L |
Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 1600 MHz |
Component for What this product is used as a part of (component for). | PC/server |
Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | 240-pin DIMM |
Buffered memory type | Unregistered (unbuffered) |
ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. | |
Memory bus Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC. | 64 bit |
Memory voltage The voltage (V) of the memory in the device. | 1.35 V |
Module configuration | 512M x 64 |
Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | PC3-12800 |
Product colour The colour e.g. red, blue, green, black, white. | Green |
Lead plating | Gold |
Weight & dimensions | |
Width The measurement or extent of something from side to side. | 133.3 mm |
Packaging data | |
Package type The type of product package e.g. box. | DIMM |
Other features | |
Chips organisation | X8 |
Number of pins | 240 |
Bus clock rate | 1600 MHz |
Error indication | |
Rack mounting The type of mounting that can position devices in a shelving system (rack). | 240-pin DIMM |
Memory layout Describes how memory is plugged on the motherboard | 1 x 4096 MB |
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 4096 MB |
SKU | 217035 |
MPN | KVR16LN11/4 |
Brand | Kingston |
Product Condition | Brand New/Unused |
Memory Type | DDR3 |
Memory Form Factor | DIMM |
Stock Availability | Available for Shipping |
Warranty Period | Limited Lifetime Warranty |
Warranty Contact | https://www.kingston.com/ |
