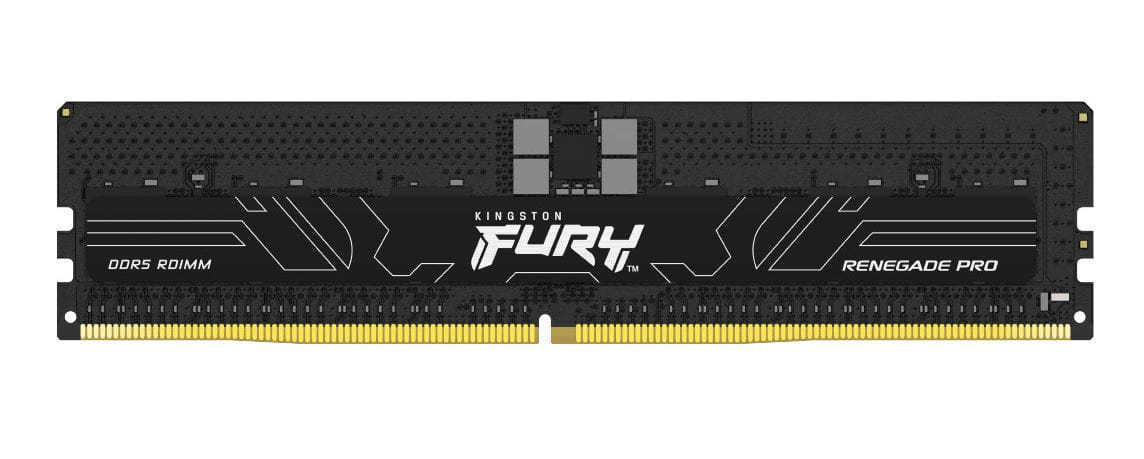

Kingston Technology FURY KF556R36RBK8-256, 256 GB, 8 x 32 GB, DDR5, 5600 MHz, 288-pin DIMM, Black
Kingston FURY KF556R36RBK8-256 is a kit of eight 4G x 80-bit (32GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 1Rx4, ECC memory module, based on twenty 4G x 4-bit FBGA components per module. The module supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is
256GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
256GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
| Features | |
| Buffered memory type | Registered (buffered) |
| On-Die ECC |
 |
| CAS latency Column Address Strobe (CAS) latency, or CL, is the delay time between the moment a memory controller tells the memory module to access a particular memory column on a RAM module, and the moment the data from the given array location is available on the module's output pins. In general, the lower the CAS latency, the better. | 36 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 256 GB |
| Memory layout (modules x size) How the overall memory of the product is put together, defined by the number of modules and the size. | 8 x 32 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR5 |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 5600 MHz |
| Component for What this product is used as a part of (component for). | PC |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | 288-pin DIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Memory ranking | 1 |
| Memory voltage The voltage (V) of the memory in the device. | 1.25 V |
| Module configuration | 4096M x 80 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| Intel Extreme Memory Profile (XMP) |
|
| Intel Extreme Memory Profile (XMP) version | 3.0 |
| SPD profile |
|
| Programming power voltage (VPP) | 1.8 V |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Heatsink |
| Lead plating | Gold |
| JEDEC standard |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 95 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -55 - 100 °C |
| Sustainability | |
| Sustainability certificates | RoHS |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 133.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 31.2 mm |
| SKU | 759752 |
| MPN | KF556R36RBK8-256 |
| Brand | Kingston |
| Product Condition | Brand New/Unused |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.kingston.com/ |
