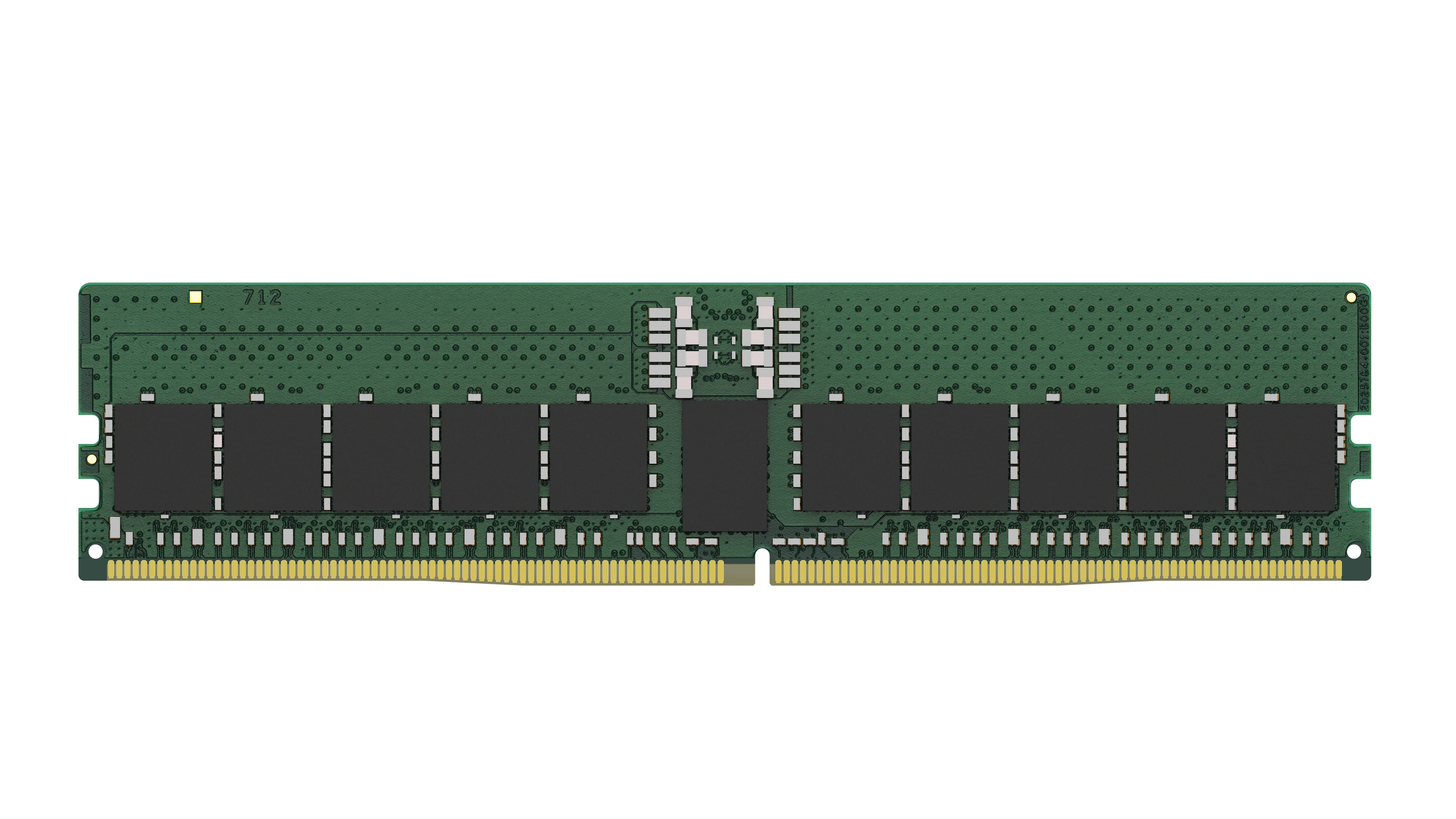

Kingston Technology 32GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX8, 1.1V, 288-pin, 16Gbit, 32 GB, 1 x 32 GB, DDR5, 288-pin DIMM
Kingston Technology 32GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX8, 1.1V, 288-pin, 16Gbit. Component for: PC/Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC
| Features | |
| Buffered memory type | Registered (buffered) |
| On-Die ECC |
 |
| CAS latency Column Address Strobe (CAS) latency, or CL, is the delay time between the moment a memory controller tells the memory module to access a particular memory column on a RAM module, and the moment the data from the given array location is available on the module's output pins. In general, the lower the CAS latency, the better. | 46 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 32 GB |
| Memory layout (modules x size) How the overall memory of the product is put together, defined by the number of modules and the size. | 1 x 32 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR5 |
| Memory data transfer rate | 5600 MT/s |
| Component for What this product is used as a part of (component for). | PC/Server |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | 288-pin DIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Memory ranking | 2 |
| Memory voltage The voltage (V) of the memory in the device. | 1.1 V |
| Module configuration | 4096M x 80 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| SPD profile |
|
| Programming power voltage (VPP) | 1.8 V |
| Cooling type The method used to cool the device or to cool the air around the device. | Heatsink |
| Lead plating | Gold |
| JEDEC standard |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 95 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -55 - 100 °C |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | RoHS |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 133.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 31.2 mm |
| SKU | 791294 |
| MPN | KSM56R46BD8PMI-32HAI |
| Brand | Kingston |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.kingston.com/ |
